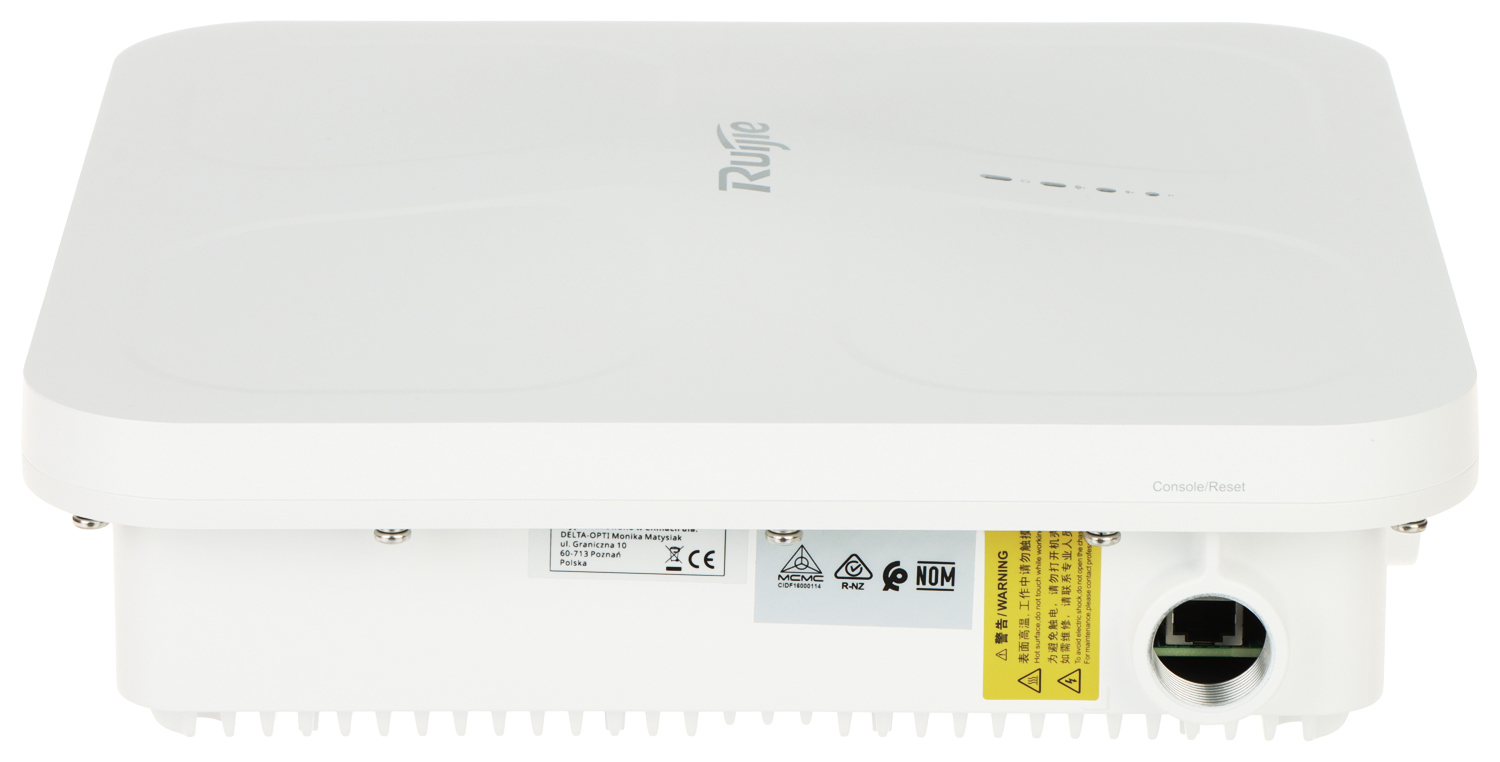

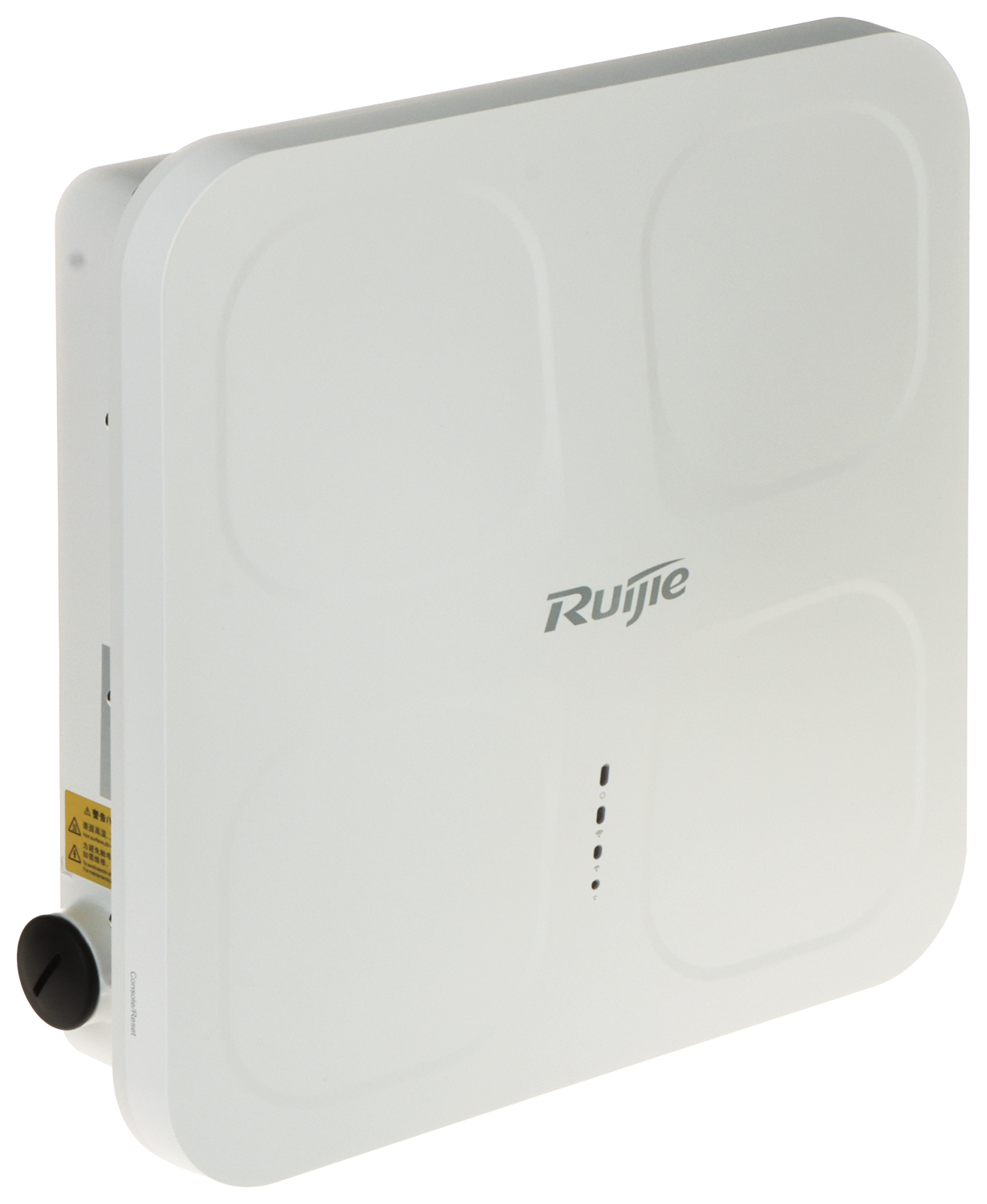

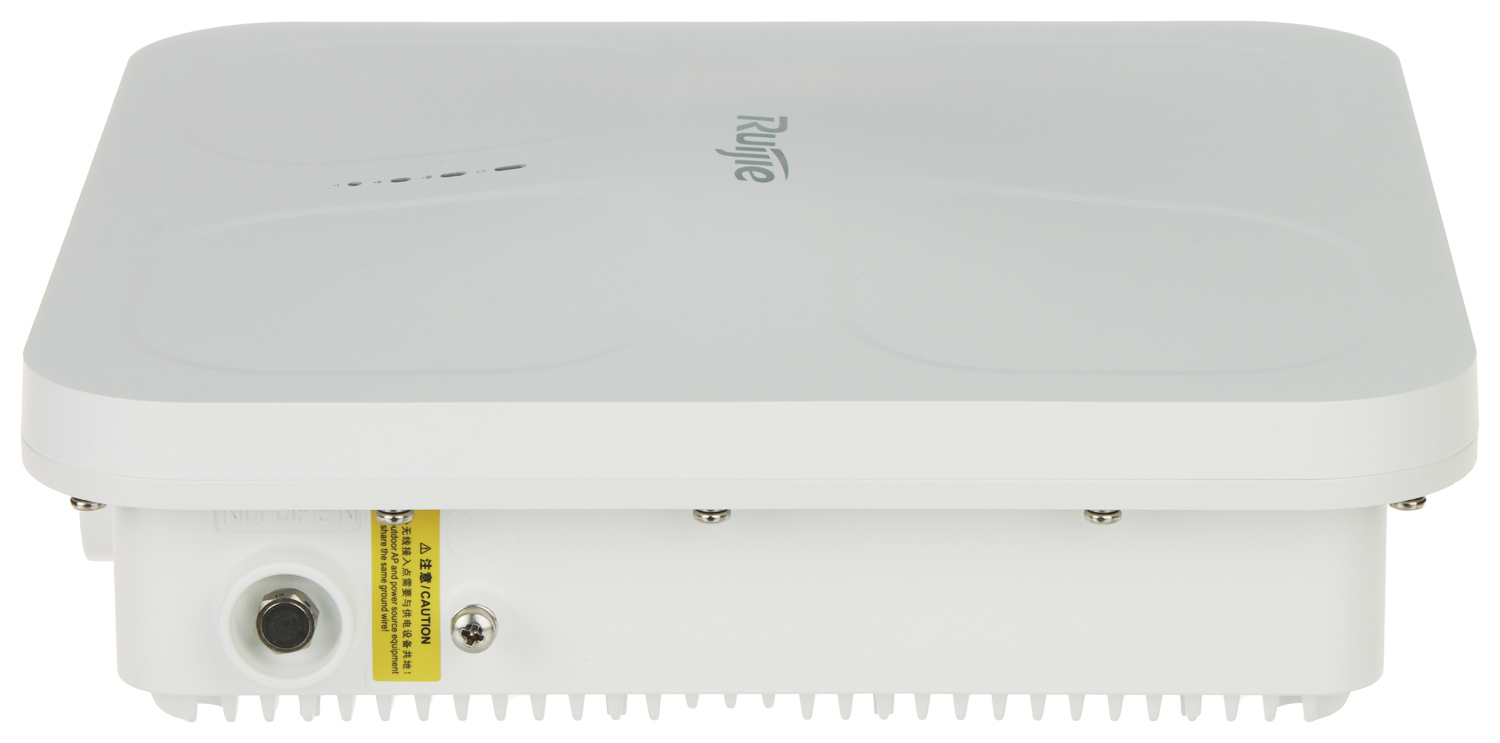

Name: PIEKĻUVES PUNKTS RG-AP680P-L Wi-Fi 6, SFP 2.4 GHz, 5 GHz, 1147 Mbps + 4804 Mbps RUIJIE
SKU: RG-AP680P-L
Availability: OutOfStock

PIEKĻUVES PUNKTS RG-AP680P-L Wi-Fi 6, SFP 2.4 GHz, 5 GHz, 1147 Mbps + 4804 Mbps RUIJIE

Preces kods: RG-AP680P-L

EAN: 6971693278257

Piegādes laiks: 10-13 Jūnijā

Estimated Delivery Dates

607,87 €

Availability: 0

Frequency range: 2.4GHz, 5GHz ;>Antenna type: 4×4 MU-MIMO – iebūvēts ;>Standards: IEEE 802.11 b/g/n/ax @ 2.4 GHz, IEEE 802.11 a/n/ac/ax @ 5 GHz, Interfeiss Bluetooth 5.1 ;>LAN ports: 1 x 100 / 1000 Mbps, 2.5 / 5 Gbps Ethernet + PoE IN – RJ45, 1 x 100 / 1000 Mbps Ethernet + 48 V DC OUT IoT – RJ45, 1 x 10 Gbps – SFP+ ;>Control interface: Ruijie Cloud centrālās pārraudzības sistēma ;>Selected characteristics: Modulis GPS ;>Power supply PoE: Hi-PoE (802.3af/at/bt) ; <table>

Frequency range:

2.4 GHz ( 2.4 … 2.4835 GHz ),

5 GHz ( 5.150 … 5.250, 5.250 … 5.350, 5.470 … 5.725, 5.725 … 5.850 GHz ) ,
Antenna type:
4×4 MU-MIMO – iebūvēts

5 dBi @ 2.4 GHz – 4 gab.

5.5 dBi @ 5 GHz – 4 gab.

2 dBi Izkliedētā antena Bluetooth – 1 gab.

Izkliedētā antena GPS – 1 gab.

Standards:

IEEE 802.11 b/g/n/ax @ 2.4 GHz,

IEEE 802.11 a/n/ac/ax @ 5 GHz,

Interfeiss Bluetooth 5.1
Transmission speed:
1147 Mbps @ 2.4 GHz + 4804 Mbps @ 5 GHz

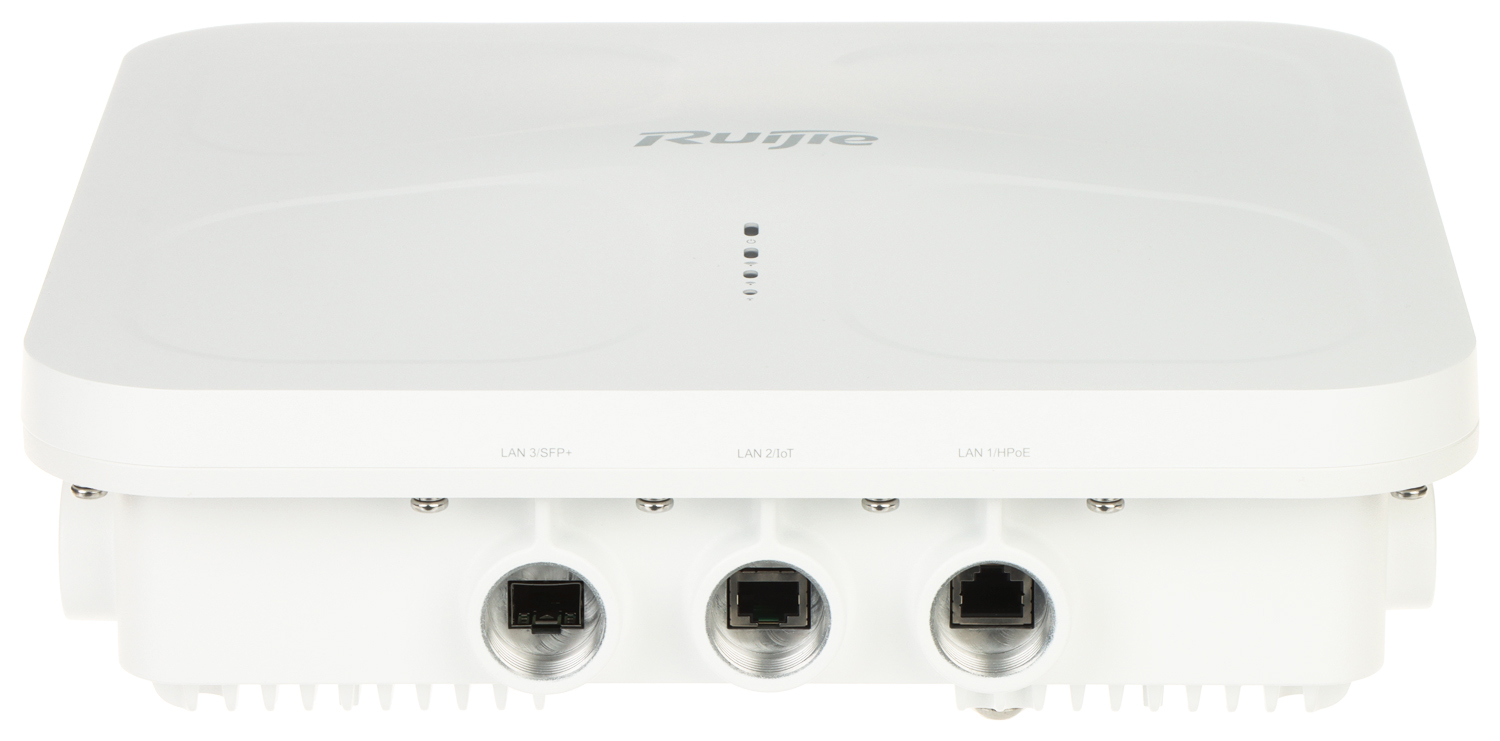

LAN ports:

1 x 100 / 1000 Mbps, 2.5 / 5 Gbps Ethernet + PoE IN – RJ45,

1 x 100 / 1000 Mbps Ethernet + 48 V DC OUT IoT – RJ45,

1 x 10 Gbps – SFP+
USB socket:

LED indicators:
Power / System, 3 x Signāla indikators
DDNS:

DHCP server:

Firmware update:

Protection:

WEP 64/128-bit, WPA/WPA2-Personal, WPA/WPA2-Enterprise, WPA3-Personal/Enterprise

Authentication with IEEE 802.1x and Radius standards

Black strip

ACL

CPP

NFPP

SSID hidden
Working mode:
Access Point

Control interface:

Ruijie Cloud centrālās pārraudzības sistēma

Configuration with Ruijie Reyee app

Remote control

WWW browser

Konsole – Izeja RJ-45
Mobile phone access:
Android: Free application Ruijie Reyee
iOS (iPhone): Free app Ruijie Reyee

Default IP address:
192.168.110.1
Transmitter power:
max. 30 dBm @ 2.4GHz
max. 29 dBm @ 5GHz

Selected characteristics:

Wi-Fi 6 support – a standard that offers higher speeds and better performance in high-traffic environments

OFDMA

MU-MIMO – multi-antenna transmission function to increase throughput and connection reliability with a network client

Maximum number of connected Wi-Fi devices : 200

WLAN : 32 x BSSID

NAT

FTP

DNS

Multicast

IPv4/IPv6

ICMP – Statiskā maršrutēšana

Saderīga ar VPN : IPsec, PPPoE

SNMP v1/v2c/v3

NTP – Klients / serveris

Statistiku atskaite, Sistēmas logi

DHCP client

Interfeiss Bluetooth 5.1

Modulis GPS

RESET key

Signāla indikators

Designed for industrial applications with a wide temperature range.

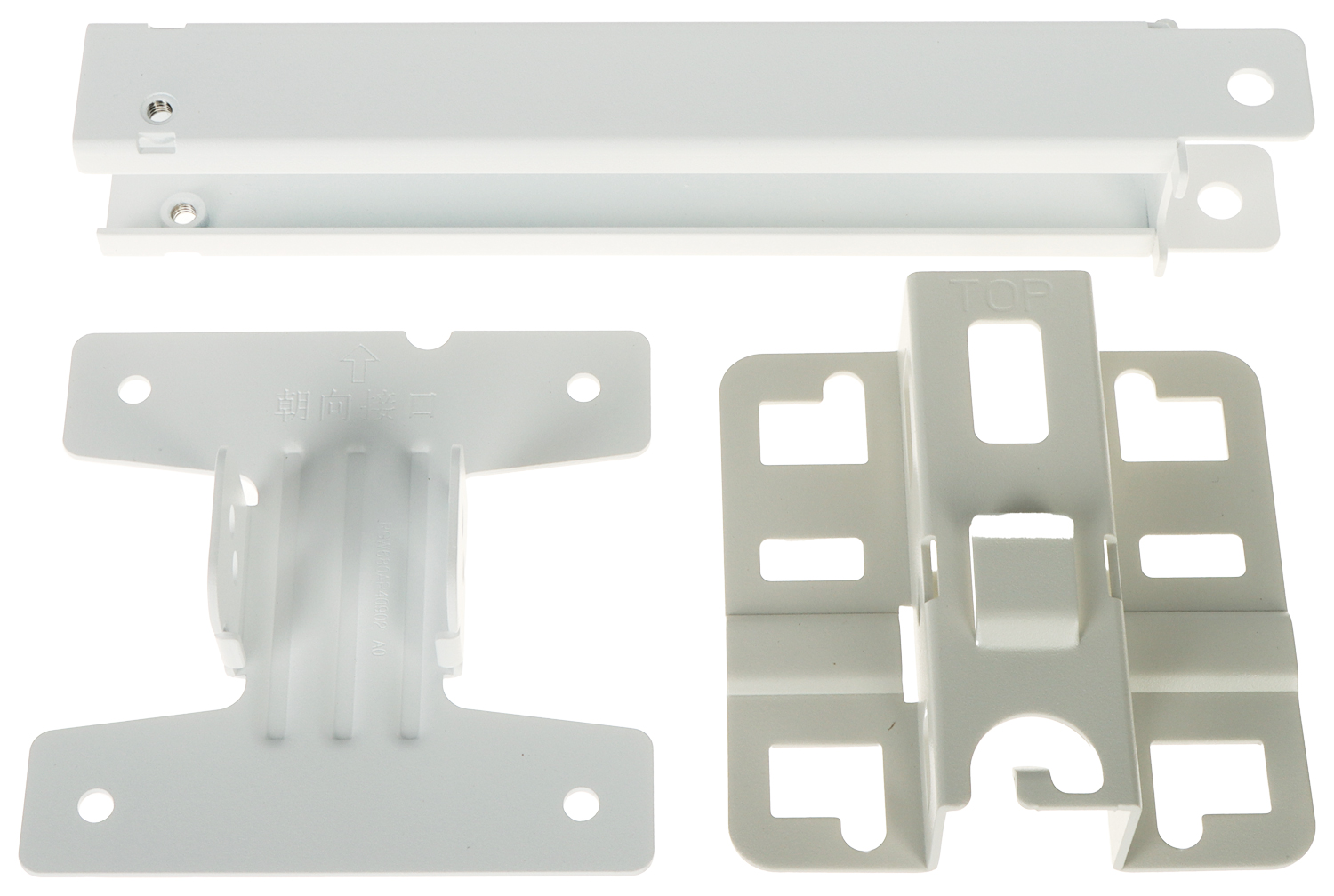

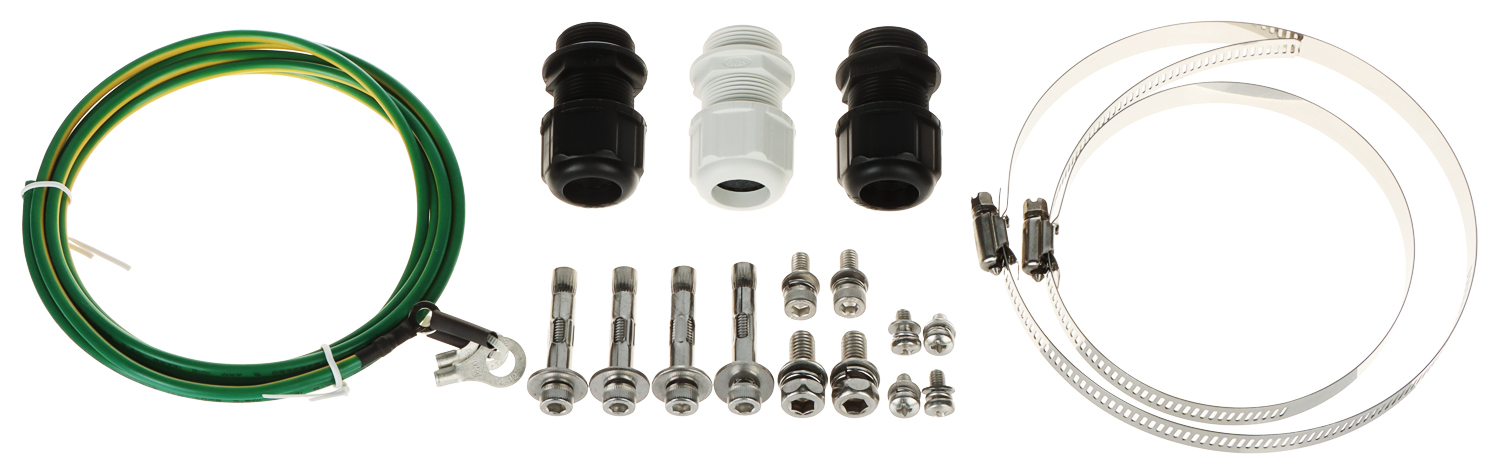

Montāža – pie sienas vai staba

MTBF (mean time between failures) > 200000 h

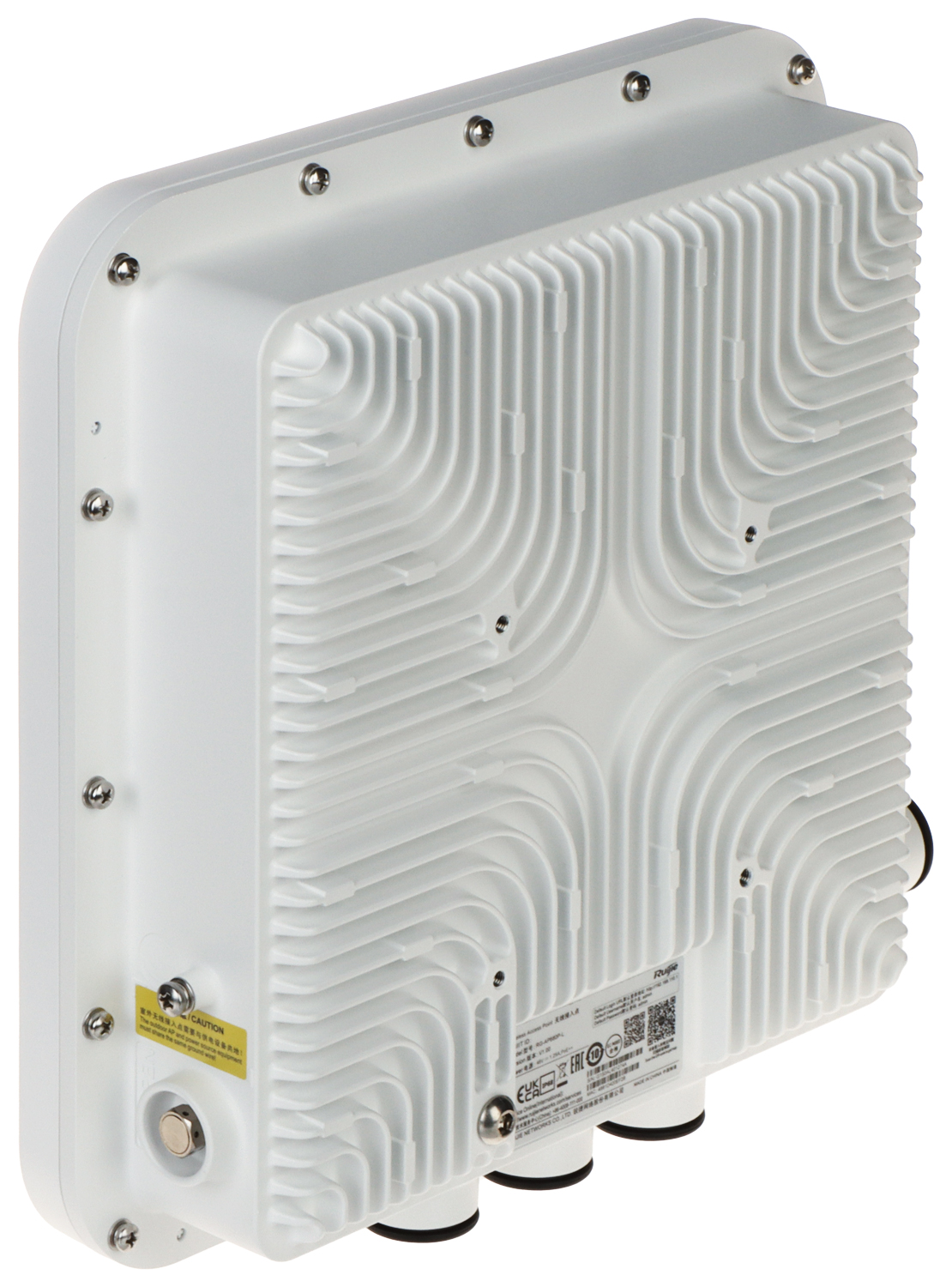

Hull:
Metāls / Plastmasa, hermētisks

Class of protection:
IP68
Surge protection:
6 kV

Power supply PoE:
Hi-PoE (802.3af/at/bt)
Source of energy supply:

LAN 1 – PoE / PoE+ / Hi-PoE

LAN 2 – Strāvas izeja 48 V DC / 12.95 W IoT @ Hi-PoE (802.3bt) LAN 1

Power consumed:
max. 40 W
Operating temperature:
-40°C … 65°C

Permissible relative humidity:
0 % … 100 % (bez kondensācijas)
Weight:
3.32 kg (bez kronšteina)

Size:
300 x 300 x 94 mm (bez kronšteina)
Manufacturer / Brand:
RUIJIE

WARRANTY:
3 years

Additional information

Svars	6,4340 kg
Dimensions	470 × 410 × 175 cm
