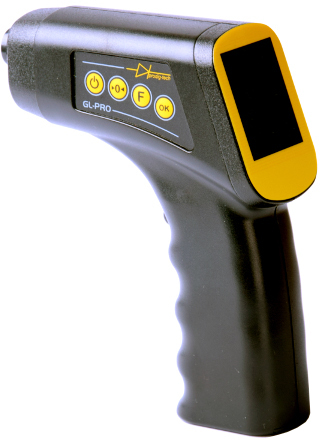

Prodig-Tech GL-PRO-2-FAZ paint thickness gauge

PAINT THICKNESS METER GL-PRO-2-FAZ:

• Paint thickness measurement on automotive steel, galvanized steel and aluminum sheets.
• Determination of zinc on steel.
• Measuring assistant.
• Spherical probe – measuring on curves.
• Body gun.

MOST FEATURES OF THE GL-PRO-2-FAZ COUNTER:

✓ Measuring range: 0–2000 µm

✓ Measurement resolution: 1 µm Fe, 5 µm Al

✓point probe with ball tip

✓ tested automatic substrate recognition(aluminum, steel, galvanized steel)

✓memory: 960 measurements

✓ measurement statistics

✓ HOLD function

✓ graphic color MEASUREMENT ASSISTANT®

PURPOSE OF THE THICKNESS GAUGE:

• Advanced paint thickness gauge designed for detailed paint thickness control.
• It allows you to check the thickness of paint on steel, aluminum (automatically detects sheet type) and galvanized (automatically detects zinc) sheets.
• The zinc detection function allows you to check whether the repair, for example: The car body was made of original sheet metal or cheaper substitutes without a zinc layer.

• GL-PRO series meters are solutions based on modern 32-bit processors. This allows for fast and accurate measurements using a 12-bit converter. The meters have an innovative probe design that allows for point-by-point measurements on ferromagnetic and non-magnetic materials, automatically recognizing the material being tested and displaying the material type. The probe tip is equipped with a ball. GL-PRO-2-PHASE A distinctive feature of the gauges is the automatic detection of galvanization or non-galvanization of the ferromagnetic sheet. This is very important when measuring a car - it reveals which body parts have been replaced with cheaper non-galvanized ones. The gauge has a calibration function using thickness standards (included in the kit). The gauge has a colorful, easy-to-read 1.8-inch LCD display that shows the current measurement, measurement statistics and all necessary functions. Operation is carried out using a 4-button keyboard and an additional trigger, when pressed, the measurement location is marked.

DEVICE SPECIFICATIONS AND FUNCTIONS:

✔ measurement on sheets (automatic detection):

– steel, Fe

– aluminum, Al

✔ automatic detection of zinc (Zn) on steel sheet

✔ automatic substrate detection

✔ measuring range 0–2000 μm;

✔ graduation 1 μm Fe, 5 μm nFe;

✔ minimum measuring field nFe 15×15 mm, Fe 5×5 mm;

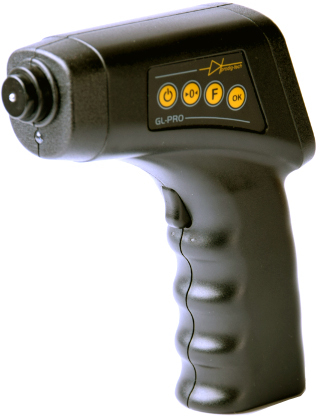

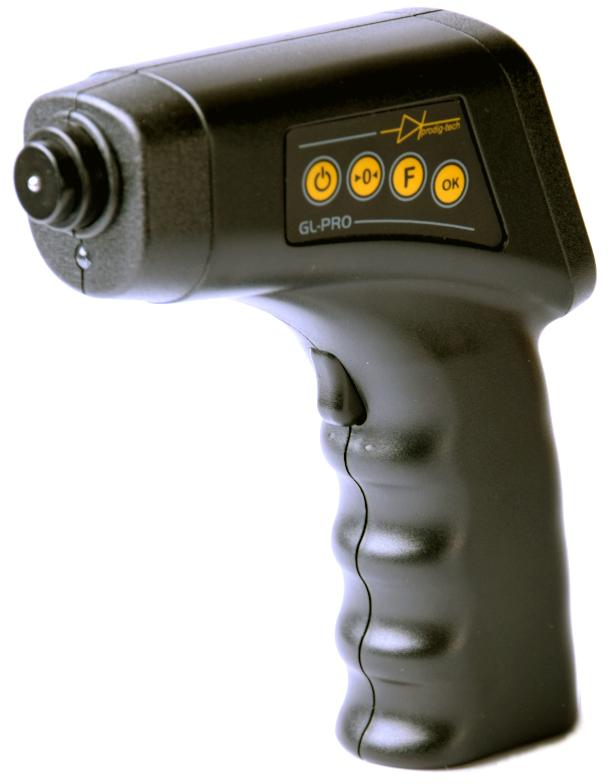

✔ built-in, spring-loaded probe sealed with a ball;

✔ measurement statistics (number, maximum, minimum, average, previous);

✔ 3 operating modes: continuous measurement, measurement pause (HOLD 1), measurement freeze (HOLD 2);

✔ possibility to manually set the measurement mode, Fe or Al;

✔ measurement memory for 960 units;

✔ measurement assistant for the automotive industry (graphics + text);

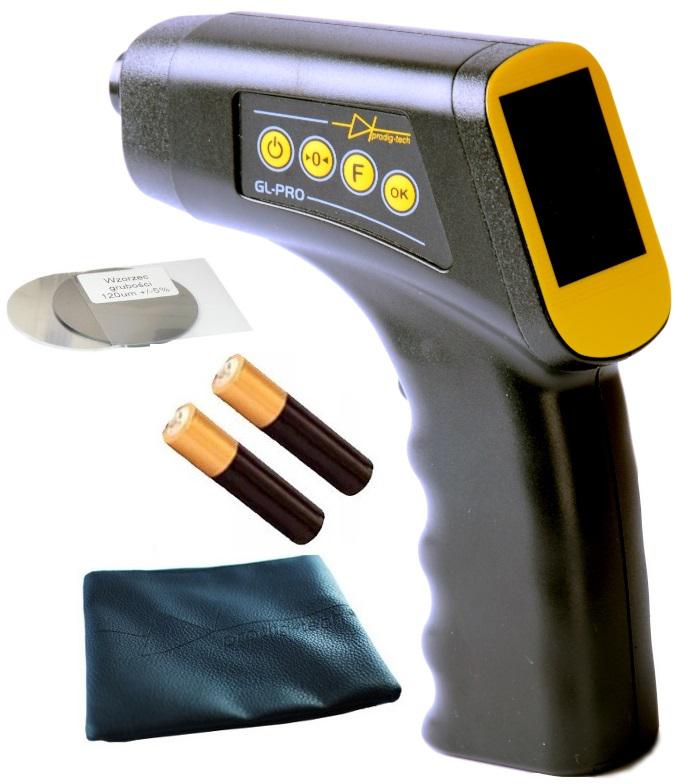

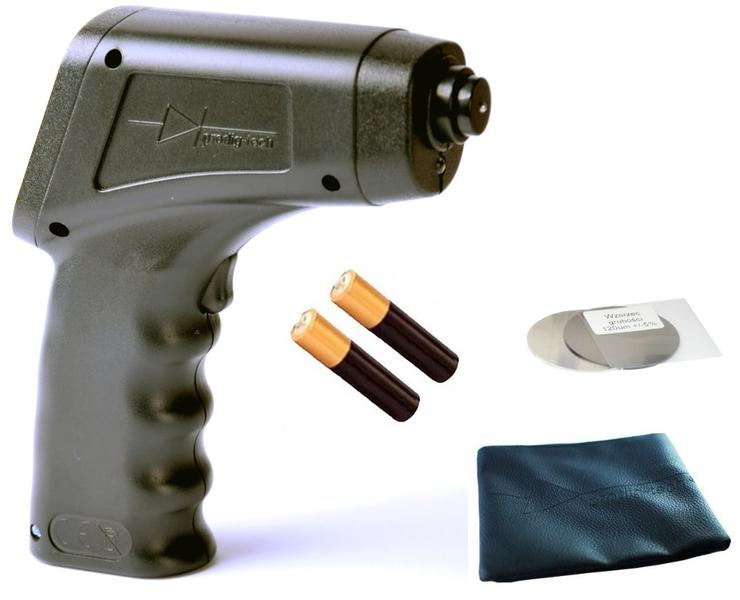

✔ calibration (using plates and thickness standards);

✔ sound signal;

✔ diode that illuminates the measurement site;

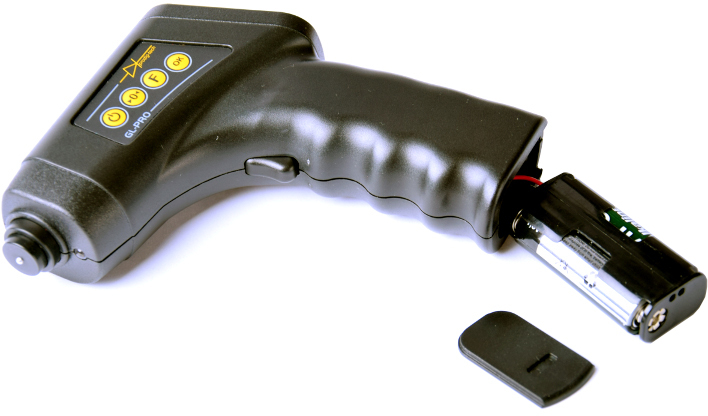

✔ power source: two AA (R6) alkaline batteries;
