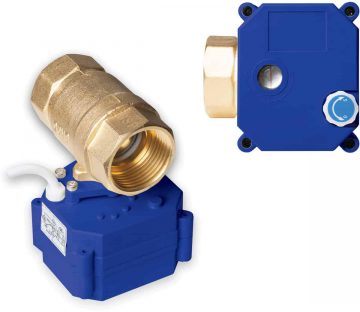

Electric ball valve Proxima vers.3
Goal
Electric ball valve (1 inch) - designed to control the flow of cold and hot water. With 12 V DC power supply, 1 inch diameter brass with closed valve indicator.
The valve can also be operated manually due to damage, lack of voltage or other reasons.
The set includes:
- Next >
- manual packaging with>Control valveelectric valveversion 3
Technical specifications:
- Diameter: 1 inch
- Density class: IP65 power supplyopen on Wednesday
- Control voltage: 12V DC
- Power consumption during movement: 80mA, current in extreme positions – 4mA
- Closing/opening time: max. 5 s
- Durability: min. 100,000 cycles
- Max. working pressure: 1MPa
- Max. water temperature: 100°C
- Control cable: 30cm
- Dimensions: 74mm – length along the valve axis, 96mm – height, 67 mm – width
*Closed and open position limit switch
How to protect yourself from flooding?
An electric water shut-off valve is the perfect solution.
