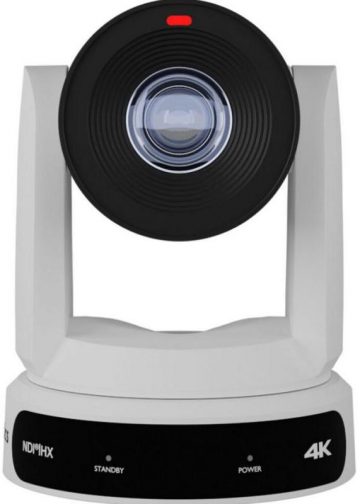

PTZOptics 30X Move 4K White PT30X-4K-WH-G3 Camera
Main functions
- 30x optical zoom – detailed image recording from a long distance
- Automatic tracking with Presenter Lock™ technology – full automation
- NDI® HX3 support — seamless integration with IP transmission
- 4K@60fps and 1080p@60fps video quality via SDI
- PoE+ — power supply and control with one cable
- Advanced image processing: WDR and 3D noise reduction
- Excellent quality in difficult lighting conditions
- Compatible with OBS, vMix, Wirecast, Livestream Studio and more
- 255 preset camera positions
- 5 year warranty
PTZOptics Move 4K 30X is an advanced PTZ camera designed for professional video production. With 30x optical zoom It is ideal for large venues, halls, stadiums and events where accuracy and distance are important. The camera supports 4K resolution at 60 frames/s, delivering superbly detailed images that are ideal for both live broadcasts and TV productions. It also offers 1080p@60fps via SDI, ensuring compatibility with a wide range of devices. PoE+ support provides power and data transmission over a single Ethernet cable, greatly simplifying installation.
Built-in automatic tracking and Presenter Lock™ technology allows you to automatically track the presenter from a distance up to 300 feet (91.44 m), even in a crowd. This solution eliminates the need for manual camera control, providing a smooth transition between speakers with a single click.
Designed for seamless integration with IP production systems, the Move 4K 30X offers a wide range of video outputs, including HDMI, SDI, USB 2.0 and Ethernet — all support 4K@60fps. NDI® HX3 support ensures seamless video transmission over IP networks. Advanced image processing features such as, wide dynamic range (WDR), 3D noise reduction and high image quality in low light, delivers professional results in any conditions. Control is available via a web user interface or compatible software such as, OBS, vMix, Wirecast, Livestream Studio, as well as PTZOptics joystick controllers. The camera has 5 year warranty, which ensures long-term reliability.
Rear panel connectors:
Videos:
- 1x RJ45 (Ethernet 10/100/1000M, PoE+)
- 1x HDMI 2.0
- 1x USB 2.0 Type A
- 1x 3G-SDI (BNC, SMPTE 424M)
Audio: 1x 3.5mm line input
Management:
- 2x RS232 (in/out, Mini-DIN, 30 m, VISCA / Pelco-D/P)
- 1x RS485 (Phoenix, up to 1200 m, VISCA / Pelco-D/P)
- Power supply: DC 12V (JEITA connector)
Technical specifications
Matrix: 1/1.8″ CMOS Sony, 8.42 Mpix
Lens: 30x optical zoom, f=7.1-210mm, F1.61-F5.19
Equivalent focal length (35mm): 32–825mm
Resolution and frame rate:
- HDMI: 3840x2160p @60/59.94/50/30/29.97/25, 1080p and 720p
- SDI: 1080p @60/59.94/50/30/29.97/25, 1080i, 720p
Digital zoom: up to 16x
Field of view:
- Horizontal: 2.5° (telephoto) – 59.2° (wide angle)
- Vertical: 1.4° – 34.6°
- Display field of view: 66.7°
Minimum lighting: 0.5 lux (F1.8,(AGC ON)
Shutter: 1/30 sec – 1/10000 sec
Camera movement:
- Pan: ±170°, speed 1.7°–100°/s
- Tilt: -30° to +90°, speed 1.7°–69.9°/s
Previous settings: 255
Additional features: Image tracking, mirroring, cropping, and freezing
Power supply: DC 12 V / PoE+ (802.3at), consumption: max. 18 W
Dimensions: 170 x 181 x 228 mm
Weight: 2.0 kg
Operating temperature: from -10°C to +40°C
Storage temperature: from -40°C to +60°C
