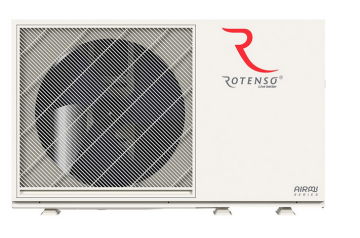

Rotenso Airmi monoblock heat pump (white) AIMW120X3 (outdoor unit)

Rotenso Airmi Monoblock (White) AIMW120X3 heat pump (outdoor unit)

Rotenso Airmi ><> The set includes:>

outdoor unit – wire

– hot water tank sensor

– plate heat exchanger

– flow sensor

– expansion tank

– pressure gauge

– water pump

– safety valve

– air vent valve

– Y-type water filter

The Rotenso Airmi Monoblock 12 kW heat pump is a three-phase unit with 12.10 kW heating capacity (A7 / W35).

It has an excellent energy efficiency class of A +++ (for a flow temperature of 35°) and A++ (for a flow temperature of 55°C) and A++ (for a flow temperature of 55°C).

Parameter A /3 4.70.

The pump allows you to control two heating zones.

This ensures high heating efficiency down to outdoor temperatures of -25°C.

The maximum available water temperature in heating mode is: 65°C and in hot water mode: 60°C.

The pump has an inverter, twin-rotary compressor. The refrigerant is R32.

The Rotenso Airmi Monoblock heat pump is equipped with a 9 kW auxiliary heater with modulated power (3 kW + 3 kW + 3 kW). In emergency situations or at temperatures below the bivalent point, it is recommended to use auxiliary heaters for the pump when preparing central heating or hot water. It is worth knowing that the use of heaters has a positive effect on the durability and reliability of the heat pump.

To ensure trouble-free operation at temperatures below 0°C, the pump is equipped with a drip tray heater, which protects against condensation freezing and icing of the outdoor unit, thus preventing possible damage to the fan and heat pump unit. which heats the compressor oil at temperatures below 0°C, preparing the device for trouble-free start-up in adverse weather conditions.

This technical solution guarantees smooth operation and extends the service life of the compressor – the heart of the heat pump.

The Rotenso Airmi Monoblock pump can be controlled from a mobile application (Tuya Smart), as well as with a built-in temperature sensor and a menu in the room e.

5-year warranty for Rotenso® heat pumps

The pumps are covered by a 5-year warranty. The buyer is provided with professional service and warranty care. The manufacturer provides free pump start-up by an authorized service center, access to a nationwide service network, and fast service response time.

*Terms and conditions for the 5-year warranty on Rotenso heat pumps can be found in the downloads section.
