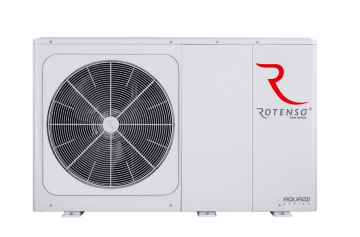

Rotenso Aquami Monoblock AQM80X1 heat pump
sm-6″>
Main functions
The AQM80X1 device includes:
– outdoor unit
– wired controller,
– hot water tank sensor,
– plate heat exchanger,
– flow sensor,
– expansion tank,
– expansion tank, –
water,
– safety valve,
– air vent valve
– Y-type water filter
Model AQM80X1 is a monoblock, single-phase heat pump (7/W3 kW with heating capacity.4 W).
This is a highly efficient unit with a high energy efficiency class of A+++ (for a supply temperature of 35°) and A++ (for a supply temperature of 55°).
It provides high heating capacity down to -25°C outdoor temperature and can operate without the help of electric heaters even at -15°C ambient temperature. The maximum available water temperature in heating mode is: 65°C and in hot water mode: 60°C.
The pumps are covered by a 5-year warranty. The buyer is provided with professional service and warranty care. The manufacturer provides free pump start-up by an authorized service center, access to a nationwide service network and fast service response time.
To ensure uninterrupted operation at temperatures below 0°C, the pump is equipped with a drip tray heater, the operation of which protects against condensation freezing and icing of the outdoor unit, thus preventing possible damage to the fan and heat pump exchange.
The second important element of the pump equipment is the compressor crankcase heater, which heats the compressor oil to a temperature below 0°C, preparing the device for trouble-free starting in adverse weather conditions and extending the compressor's service life.
heat pump.
The AQM80X1 heat pump is equipped with a 3kW auxiliary heater. In emergency situations or at temperatures below -15°C, it sometimes happens that for the economical operation of the heat pump it is advisable to use heaters for hot water (CH or DHW).
It is worth knowing that the use of heaters has a positive effect on the durability and reliability of the heat pump.
The device is easy to install permanently. The two-door design of the pump housing provides easy access to all components, and the USB function allows for quick software updates. Simply copy the saved parameters between controllers using a pendrive. The single-fan design with bionic blade pattern, the dual-rotary compressor and the optimized piping design significantly contributed to the quiet operation of the pump.
The Rotenso Aquami pump can be controlled from a mobile application or a modern wired controller with a menu in Polish.
5-year warranty for Rotenso® heat pumps
one-year warranty
. The buyer is provided with professional service and warranty care. The manufacturer provides free pump start-up by an authorized service center, access to a nationwide service network, and fast service response time.
*Terms and conditions for the 5-year warranty on Rotenso heat pumps can be found in the downloads section
| Power supply (V-Hz, O) | 220-240~50, 1f | ||||
| Heating (A7/W35) Efficiency (kW) >< 7 W consumption (7 W) | 8.4 kW) | 1,63 | |||
| Heating (A7/W35) COP | 5,15 | ||||
| Heating (A7/W45) Efficiency (kW) | 8,1 >| 2,1 |
| |||
| Heating (A7/W45) COP | 3,85 | ||||
| Heating (A7/W55) Efficiency (kW) | 7,5 >| 2.36 |
| |||
| Heating (A7/W55) COP | 3.18 | ||||
| Cooling (A35/W18) Efficiency (kW) | 8. Power (A7/W55) ><5>| 1,64 |
| |||
| cooling (A35/W18) eer | 5,05 | ||||
| cooling (a35/w7) tc (kW) | 755 | 2,22 | |||
| cooling (a35/w7) eer | 3,35 | ||||
| seasonal energy efficiency tww at 35°C Scopop > | |||||
| Air to water season … 35°C Nominal heating capacity (kW) | 8,1 | ||||
| Seasonal energy efficiency TWW at 35°C Seasonal energy efficiency index (?S) (%) | 205,6 | ||||
| Szona energy consumption 218 | |||||
| 6,6 | |||||
| Seasonal energy efficiency TWW at 55°C Seasonal energy efficiency index (?S) | 131.6 | ||||
| 5,83 | |||||
| SEER TWW at 18°C | 8,95 | ||||
| Maximum overload protection (MZN) (A) | 32 | 29 | |||
| Compressor type | Twin rotary DC compressor | ||||
| Fan Type | Brush DC | ||||
| Fan > | Type td ><td. | R32 | |||
| Refrigerant GWP | 675 | ||||
| Refrigerant Quantity (up to 15 mb) (kg) | 1,4 | ||||
| Cp. (TCO2eq) | 0,95 | ||||
| Power cables: outdoor unit (No. × mm2) | 3 × 8 | ||||
| Mounting distance (W1xW2xD) (mm) > | 656 x4td.8 B(A)) | 48,5 | |||
| Sound power level (dB(A)) | 59 | ||||
| Net dimensions (WxDxH) (mm) | 1385 × 526 × 865 s (dimension/trWs | 1465 × 560 × 1035 | |||
| Net weight / gross weight (kg) | 110/137 | ||||
| Outdoor operating range Cooling (°C) | Operating range (°C) C) | -25~35 | |||
| Outdoor operating range Hot water (°C) | -25~43 | ||||
| Operating mode | Heating and cooling | ||||
| Discharge temperature (°C) | 5~25 | ||||
| Leaving water temperature Space heating (°C) | 25~65 | ||||
| Outlet water temperature Hot water (°C) | 30~60 | 220-240~50, 1f | |||
| Electric heater Number of heating stages (pcs.) | 1 | ||||
| Electric heater Power (kW) | 3operating current (A> | d>13.5 | |||
| Water circuit Water connections (mm (inch)) | 41.91 mm (G5/4″ BSP) external | ||||
| Water circuit Safety valve pressure (MPa) | 0.3> Condensation circuit > | 16 | |||
| Water circuit expansion vessel total capacity (l) | 8 | ||||
| Water scheme for expansion of the district (L) | Ion vessel Maximum pressure (MPA) | 0.3 | |||
| Water circuit expansion vessel preliminary pressure | 0.1 | ||||
| Heat> Exchanger minimum flow (L/min) | 6 | ||||
| Water circuit Water pump lifting height (m) | 9 | ||||
| Water circuit Water pump type | DC | ||||
| Water circuit Total water volume (l) | 3.2 | ||||
| Generation | X |
The AQM80X1 device includes:
- – external unit
- – wired controller,
- – DHW tank sensor,
- – plate exchanger,
- – flow sensor,
- – expansion tank,
- – pressure gauge,
- – water pump,
- – Safety valve,
- -air release valve
- -Y-type water filter
