Rotenso Aquami Monoblock AQM300X3 heat pump (outdoor unit)
The Rotenso Aquami Multi Split 10 kW package includes:
– indoor unit AQMS80X1i
– outdoor unit H100XM4
– wired controller
-
tank flow exchange device
pressure gauge
– safety valve
– air vent valve
– Y-type water filter
The Aquami Multi Split system is universal air-water and power system combination. 10 kW.
Thanks to this connection, in one system we have the opportunity to:
– heat rooms with central heating water (heated floors, radiators, fan units),
– prepare hot water (hot water),
– cool rooms using standard room (wall) air conditioners.
We can connect 4 indoor units to Aquami.4. This means that when heating rooms with an air/water system (heated floor or radiators) with a capacity of 8 kW, we can additionally connect 3 air conditioners (wall, cassette or duct).
The Rotenso Aquami Multi Split 10 kW heat pump consists of:
– outdoor unit with symbol H100XM4

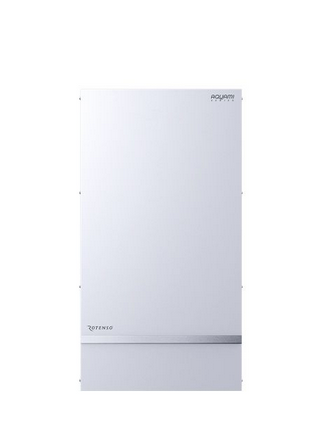

– hydraulic module with symbol AQMS80X1i
It is a single-phase pump with a heating capacity of 10.9 kW in the air/air system and 8.0 kW in the air/water system (A7/W35) and energy efficiency class A5 A+ 5°C).
The maximum available water temperature in heating mode is: 60°C and in hot water mode: 55°C.
The pumps are covered by a 5-year warranty. The buyer is provided with professional service and warranty care. The manufacturer provides free pump start-up by an authorized service center, access to a nationwide service network, and fast service response time.
To ensure trouble-free operation at temperatures below 0°C, the pump is equipped with a drip tray heater (model H100XM4), which protects against condensation freezing and icing of the external heat exchanger block, thus preventing possible pump damage. The second important element of the pump equipment is the compressor crankcase heater, which heats the compressor oil at temperatures below 0°C, preparing the unit for trouble-free start-up in adverse weather conditions.
This technical solution guarantees flawless operation and extends the life of the compressor – the heart of the heat pump.
The heat pump is equipped with a 3 kW booster heater. In emergency situations or at very low outside temperatures, it may be necessary to use heaters to prepare hot water (central heating or domestic hot water) to ensure the heat pump operates economically. It is worth knowing that the use of heaters has a positive effect on the durability and reliability of the heat pump.
The Rotenso Aquami pump can be controlled from a mobile application, as well as from a modern wired controller with a menu in Poland. trox.pl/zdjecia/40308/pompa_ciepa_rotenso_airmi_split_white_aisw40x1o_jednostka_zewntrzna_5c7872b049f93.png “alt =” 5-year warranty on div. > 5-year warranty on Rotenso® heat pumps
The pumps are covered by a 5-year warranty. The buyer is provided with professional service and warranty care. The manufacturer provides free pump start-up by an authorized service center, access to a nationwide service network and fast maintenance response time.
*Terms and conditions for the 5-year warranty on Rotenso heat pumps can be found in the downloads section.
Technical specifications:
>wer-tr.d, d>220-240~50, 1f
3,71
<
tld. Load cooling
Additional information
Svars
75,6000 kg
