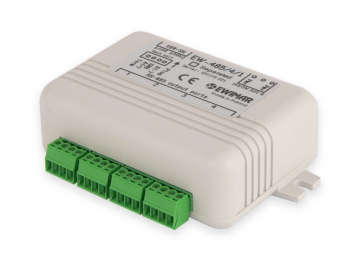

The device is designed to amplify and distribute telemetry signals using the RS-485 bus. Packets reaching the input are regenerated and sent identically to 4 separate outputs, which provides an increase in the length of the entire bus by 4 times. Each output has a switchable 120 ohm termination resistor.
Galvanic isolation protects individual branches and the devices connected to them against the effects of lightning discharges and transmission disturbances caused by potential differences.
600W @ 8/20uS surge protection and short circuit protection provide high resistance to damage to cooperating devices in the event of surges, lightning discharges and acts.
/div>
Technical Specification:
| Parameter | Value |
|
| Number of devices on the RS-485 line |
4 x 32 devices |
300bit ~ 1Mbit |
| Operating mode | Galvanic isolation |
1kV DC |
| Surge protection style=”font-size: small;”>600 W - each RS-485 port and power supply |
||
| Connectors |
||
| LED indication |
Power source, transmission |
|
| small;”>9 ~ 24 V DC/AC |
||
| Current consumption |
150mA max @ 12VDC> |
Freestanding, screwed to the wall |
| Traveling Dimensions |
90 x 83 x 33 (mm) with connectors | |
| Operating temperature | -20°C ~ 60°C. |
| Svars | 0,3000 kg |
|---|
