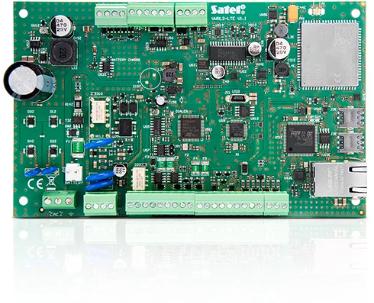

SATEL alarm control panel with multi-channel PSTN/GSM-LTE/ETH VERSA Plus LTE communication module
Alarm control panel VERSA Plus LTE is designed for the protection of small and medium-sized objects. This device allows you to create a wired or wireless alarm system, compatible with wireless system controllers: ABAX 2 (ACU-220, ACU-280), ABAX (ACU-120, ACU-270) and MICRA (VERSA-MCU).
VERSA Plus LTE is a functional solution that combines several different devices. The control panel motherboard is equipped with communication modules: Ethernet, mobile GSM/LTE*, PSTN telephone dialer. In addition, the control panel has a voice and sound alarm verification module. Thanks to this, VERSA Plus LTE provides communication using three channels (via Ethernet, mobile network* and PSTN), ensuring efficient transmission of transmitted information.
- Compliance with EN50131 Grade 2
- 4 programmable wired inputs:
- Support for NO and NC type detectors, as well as roller shutter and impact detectors
- Support for EOL and 2EOL configuration
- Additional NC type tamper input
- 5 programmable wired outputs:
- 2 high current outputs
- 2 low current OC type outputs
- 1 relay output
- 3 power outputs
- The output is intended for connecting a piezoelectric transducer mounted in the housing (responsible for acoustic signaling)
- Maximum number of programmable inputs: 30
- maximum number of programmable outputs: 12
- dividing the system into 2 zones:
- each output can be assigned to 2 zones simultaneously
- system management using:
- keyboards:
- LCD with mechanical keyboard VERSA-LCD and VERSA-LCDM
- wireless LCD with mechanical keyboard and built-in contactless card reader VERSA-KWRL2
- with touchscreen: INT-TSH210,INT-TSH2-R and INT-TSG2-R
- zone control module INT-CR (using cards, key fobs and other passive transponders)
- remote controls
- mobile app VERSA CONTROL
- telephone (SMS, voice menu)
- built-in modules:
- Ethernet (station monitoring, email notifications, mobile app, remote programming)
- mobile GSM/LTE* (station monitoring, voice/SMS notifications, remote control via voice menu, mobile app, remote programming)
- PSTN caller (station monitoring, voice announcements, control via voice menu, remote programming)
- voice (playing voice messages in phone notifications and voice menu)
- acoustic alarm verification (listening)
- software update locally or remotely (using UpServ program)
- built-in USB MINI-B socket for programming the control panel and updating the firmware from a computer
- memory up to 2047 events
- support for up to 30 users and assignment of individual settings:
- unique user code
- assigning a proximity card or other passive transponder
- remote control assignment
- 4 timers that provide automatic:
- activating and deactivating standby mode in zones
- control of devices (lighting, sprinklers, etc.) connected to the control panel outputs
- plug-in terminal strip
* data transmission using LTE/HSPA+/EDGE/GPRS depends on the capabilities of the mobile network used.
remote programming)
* data transmission in LTE/HSPA+/EDGE/GPRS technology depends on the capabilities of the device using the mobile network
