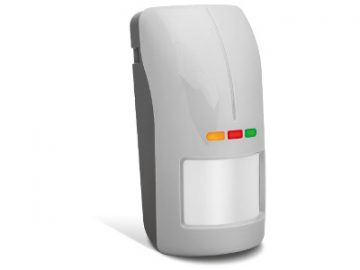

SATELLITE MOTION DETECTOR EXT. OPAL GY, WITHOUT HANDLE (GRAY)

Product code: 10133

EAN: 5905033334441

Piegādes laiks: 9-11 Martā

Estimated Delivery Dates

91,04

Availability: 67

OUTDOOR MOTION SENSOR
OPAL AND OPAL PLUS
GREY, WITHOUT HANDLE

OUTDOOR MOTION SENSOR OPAL AND OPAL PLUS MOUSE, WITHOUT HANDLE

BY USING THE SATELLITE OUTDOOR DETECTOR, YOU GET:

  • Reliable detection
  • Reliable operation
  • High resistance to adverse weather conditions
  • Possibility of use in building automation systems
  • Possibility to choose the mounting method, convenient detection paths and configuration.
  • and twilight sensor.

APPLICATIONloading=”v-Col ATION

OPAL series detectors provide excellent external protection for buildings of various types and uses. These devices will also be useful as internal protection in industrial facilities with complex or specific environmental conditions (e.g. halls, sheds).

RESISTANCE TO ADVERSE ATMOSPHERIC CONDITIONS

OPAL and OPAL Plus are equipped with PIR and MW technologies. Dual technology combined with automatic resistance and detector resistance. stable operation in difficult weather conditions, such as rain, snow, sunlight and strong gusts of wind. Changes in the ambient temperature are automatically compensated. Long-term tests have confirmed the detectors' resistance to extreme weather conditions. These devices ensure correct operation in a wide temperature range from -40°C to +55°C.

DETECTOR DESIGN

2″> div class=”col-sm-12″> DETECTOR DESIGN

s

The high quality of OPAL and OPAL Plus is the result of combining the latest technologies and many years of experience of SATEL specialists in the design and production of intrusion and hold-up alarm systems. Proof of this is the design of the sensors - both the electronic part and the housing itself.

– smp-6> technology to produce OPAL series detector housings. The combination of polycarbonate and thermoplastic elastomer creates a splash-proof construction with an IP54 tightness class. This housing protects the detector electronics from phenomena that can have a detrimental effect on it, including: rain, snow, fog or humidity. OPAL and OPAL Plus detectors are also characterized by high mechanical strength and resistance to UV radiation, thanks to which the external appearance of the devices remains unchanged for many years.

ANTIMASKING IN MICROWAVE CONTENTS

OPAL series detectors are equipped with an anti-masking function in the microwave circuit. Thanks to this, they detect the appearance of objects moving in their immediate vicinity, which allows you to thwart attempts to mask them.

TECHNICAL SPECIFICATION

    Vli ±1 %) Detectable movement speed: 0.3…3 m/s

  • Operating temperature range: -40…+55 °C
  • Recommended mounting height: 2.4m
  • Standby power consumption: 12mA
  • permissible current contact load (resistance): 40 mA / 16 V DC
  • Maximum humidity: 93±3%
  • Dimensions: 65 x 138 x 58 mm
  • Environmental class according to EN50130 >
  • alarm time3a.-5
  • Standards met: EN50131-1, EN50131-2-2, EN50130-4, EN50130-5
  • Microwave frequency: 24 GHz
  • Parametric resistors: 2 x 1.1 kΩ
  • Warm-up time: 40 sec
  • Class of protectionIP class according to EN501.bli class: EN201.b> : IP54
  • Detector weight (without bracket): a174 g

Additional information

Svars 0,2000 kg
