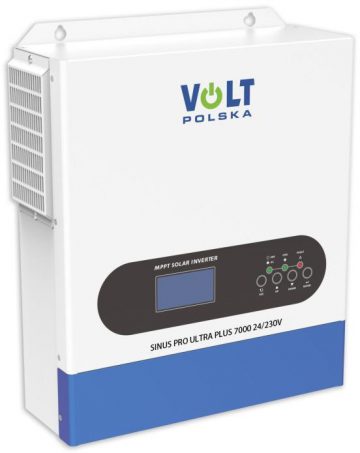

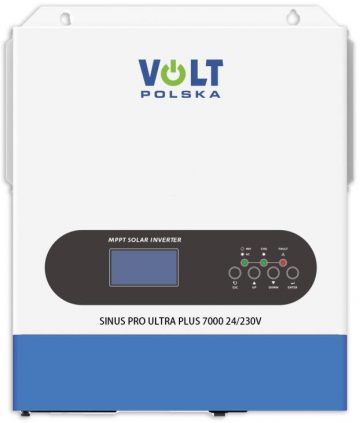

Saules invertors SinusPro ULTRA PLUS 7000 24/230V (3500/7000W) Wi-Fi + 100A MPPT (60-5
The SINUS PRO ULTRA PLUS 7000 saules invertors ir ierīce, kas apvieno vairākas funkcijas: invertoru, saules lādētāju un akumulatora lādētāju. A clear LCD display provides simple and intuitive operation, with buttons for settings such as: battery charging current, AC/solar charger priority, allowable input voltage depending on different applications.
Key features:
Operates as an offline (island) inverter
Configurable input voltage range for household appliances and computers via LCD display settings
Configurable battery charging current depending on application thanks to LCD display settings
Configurable AC/solar charging priority thanks to LCD display settings
Cold start function
Tīra sinusoīda
100A MPPT saules kontrolieris (60–500 V)
Sadarbība ar Ultra 5 enerģijas uzglabāšanas iespējas
Ierīces parametru uzraudzības iespēja, izmantojot Wi-Fi
EQ function - optimizing battery performance and extending its life
Support for multiple output priorities: UTL, SOL, SBU, SUB
Short circuit, overload and temperature protection
Kādas ierīces darbina SINUS PRO ULTRA PLUS 7000?
- RTV devices such as televisions, receivers, hi-fi, DVD players
- Home appliances such as refrigerators, microwaves, blenders, toasters
- Office equipment, such as printers, fax machines, computers, monitors
- Power tools such as drills, sanders, angle grinders
- Pumps, compressors
Kas padara SINUS PRO ULTRA PLUS 7000 īpašu?
Deep discharged battery wake-up function
- This feature is used to jump start (reactivate) a lithium battery that is completely discharged and unresponsive. In some cases, the battery requires a short activation pulse before it can begin charging normally - this option provides this.
- You can set how long this pulse should last, from 6 to 300 seconds. The default setting is 6 seconds, which is usually sufficient in most situations.
- The value can be increased if the device cannot wake up the battery at the default time.
EQ (Leveling) is a process of equalizing the voltage of battery cells, the purpose of which is to:
Optimize battery performance — ensure that each battery cell operates within the optimal voltage range.
Extend battery life — prevent excessive wear of some elements, which can lead to their faster wear and degradation.
This function is used in lead-acid batteries with liquid electrolyte.
How does an inverter work offline?
In offline mode, the solar inverter operates independently of the user's power grid. The energy generated by the solar panels is stored in batteries and then transferred to the connected load.
When using the SINUS PRO ULTRA PLUS series inverter for operation in photovoltaic installations (cyclic battery charging), we recommend using batteries that are most suitable for this purpose, such as: GEL VPRO SOLAR, DEEP CYCLE VPRO SOLAR or lithium LiFePO4.
Remember to select the appropriate battery type and charging current according to capacity in the power supply settings. Incorrect selection of battery charging parameters may cause damage to the battery and void the battery warranty. Using maintenance-free AGM batteries (e.g. AGM, AGM OPTI, AGM VPRO series) in photovoltaic installations (cyclic charging systems) may cause a faster decrease in battery efficiency/capacity. Such batteries are designed and work best in buffer mode (voltage maintenance, UPS emergency power systems).
As with other types of batteries, choosing the wrong charging current can cause damage to the battery and void the battery warranty.
Technical specifications
- Kopējā jauda (momentānā): 7000 VA
- Nepārtrauktā jauda: 3500 W
- Power consumption without load: approx. 30 W
- Akumulatora spriegums: 24 VDC
- Vmp diapazons no paneļiem: 60 VDC–500 VDC
- Input voltage range (mains power): 170 VAC–280 VAC
- Output voltage range (mains current): 220 VAC–230 VAC +/- 5 %
- Maksimālā uzlādes strāva no elektrotīkla: 80 A
- Maximum charging current from solar panels: 100 A
- Operating temperature: -10°C–55°C
- Izmēri: 358 x 295 x 105 mm +/- 5 %
- Svars: 6,05 kg +/- 5 %
220V AC–230V AC +/-5 %
