Technical Specification:
| Application: | Internal |
| Infrared detector: | Double |
| Sensor type: | Passive infrared (PIR) |
| Reception area: | 15 x 14 m |

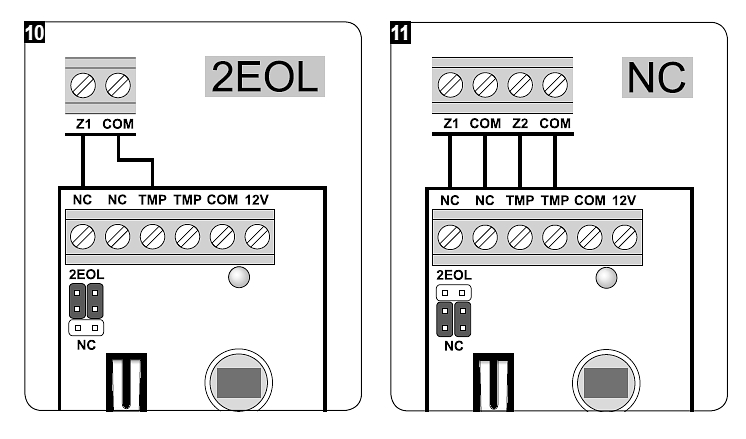

| Alarm output: | 2EOL/NC – iestatīšana ar slēdzi |
| Sensitivity setting: | 3-stage |
| Resistant to animals: | - |
| Pre-alarm function: | - |
| Permissible relay connection load (active load): | 40mA / 16V DC |
| Alarm time: | 2 seconds |
| Digital temperature compensation: | - |
| Source of energy supply: | 12 V DC / 8.5 mA (max) |
| Operating temperature: | -30°C … 55°C |
| Target movement speed: | 0.3 … 3 m/s |
| Selected characteristics: | Staru kūļu krišanas leņķa korekcija Parametriskie rezistori Saderīgs ar konfigurācijām 2EOL/NC, NC |
| Weight: | 0.09 kg |
| Size: | 63 x 96 x 49 mm |
| Manufacturer / Brand: | SATEL |
| Warranty: | 2 years |
