Technical Specification:
| Application: | Internal / External |
| Sensor type: | Passive infrared (PIR) |

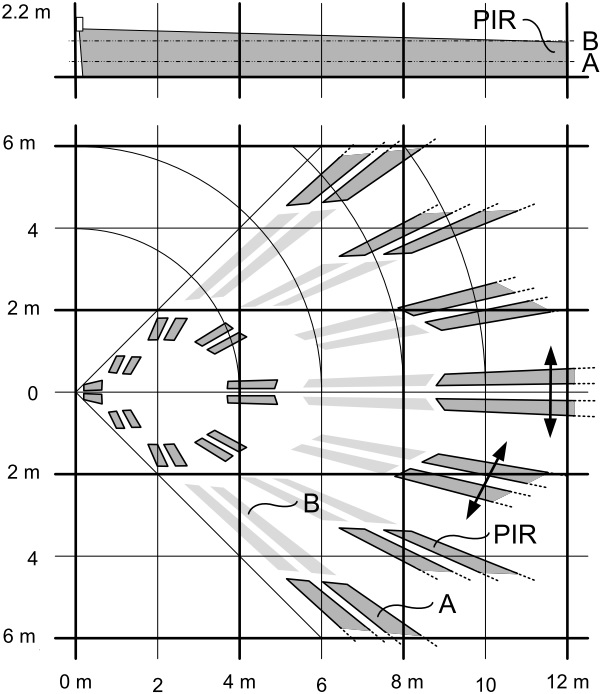

| Reception area: | 12 x 12 m |
| Alarm output: | NC |
| Sensitivity setting: | 4-stage |
| Resistant to animals: | - |
| Maximum output load: | 100mA / 30V DC |
| Target movement speed: | 0.2 … 3 m/s |
| Recommended mounting height: | 2.0m … 2.6m |
| Selected characteristics: | MAGIC Mirror technology Reliable intruder detection High resistance to false alarms Built-in parametric resistors EOL: 4.7kΩ 250mW Low power consumption Very easy installation |
| Environmental class: | EN 50131-2-2 Grade 2 |
| Protection class: | IP41 |
| Mechanical resistance class: | IK02 |
| Colour: | White |
| Source of energy supply: | 9 V … 16 V DC / 4.7 mA (max) |
| Operating temperature: | -10°C … 55°C |
| Allowable relative humidity: | < 95 % RH (non-condensing) |
| Weight: | 0.09 kg |
| Size: | 57 x 128 x 32 mm |
| Manufacturer / Brand: | Vanderbilt |
| Warranty: | 2 years |
