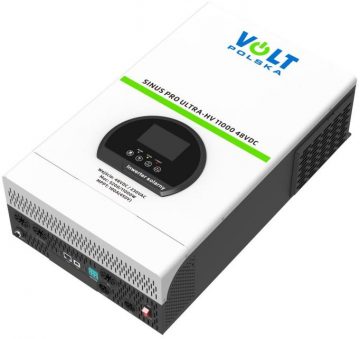

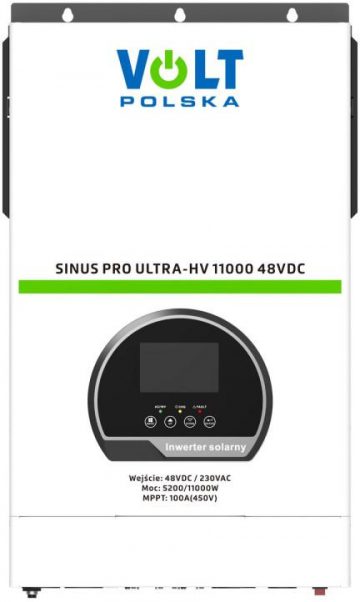

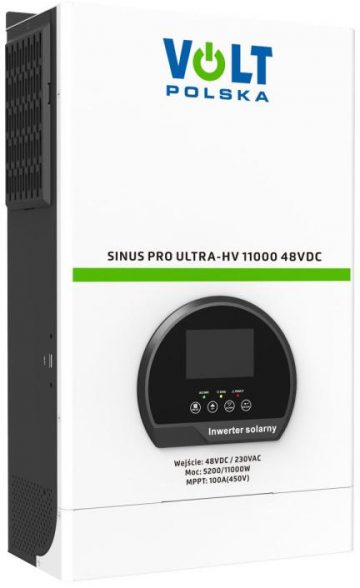

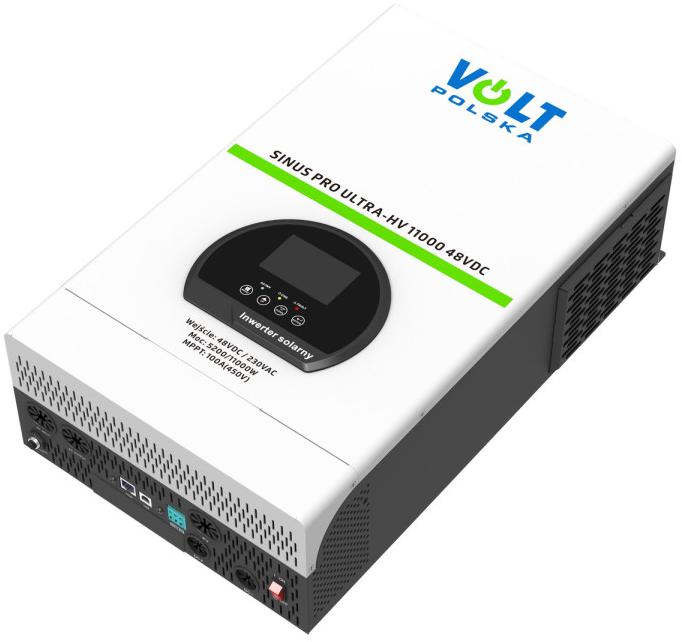

SinusPro Ultra-HV 11000 48V/230V 5200/11000W 100A MPPT (450V) solar inverter
Main parameters:
- Operates as an offline (island) inverter)
- Parameter configuration thanks to LCD display settings
- High Voltage MPPT Solar Controller (450 VDC)
- Compatible with Ultra 5 energy storage
- Short circuit, overload and temperature protection
- PC software via USB (parameter viewing and control)

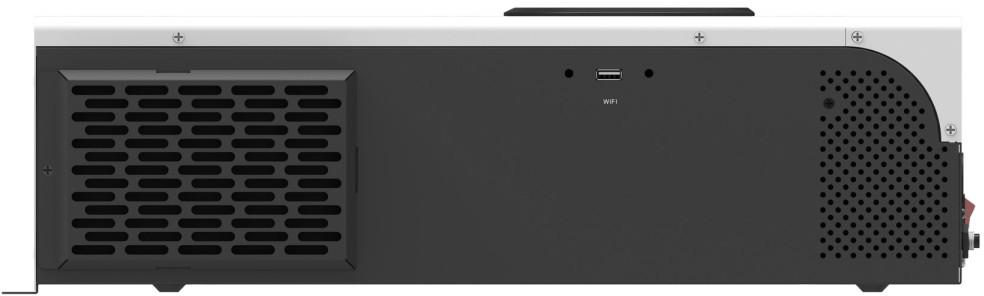

- External WIFI remote control module available
- ./li>
.
.
What devices does the SINUS PRO ULTRA-HV 11000 power?
- RV equipment such as TVs, receivers, hi-fi, DVDs
- Household appliances such as refrigerators, microwaves, blenders, toasters
- Office equipment such as refrigerators, microwaves, blenders, toasters
- Office equipment, e.g. printers, fax machines, computers, monitors
- Power tools, e.g. drills, grinders, angle irons
- Pumps, compressors
<.div class="row">
What distinguishes the SINUS PRO ULTRA-HV 11000 power supply from others?
Built-in cleans the SINUS The inverter type produces a “sinusoidal” voltage at the output, the same as the mains voltage. As a result, it can power inductive devices (including power tools, air compressors, air conditioners, refrigerators, freezers, etc.)
High voltage, which allows more solar panels to be connected in series rather than in parallel. This provides greater overall efficiency of the solar panel system.
How does an inverter work wirelessly? In wireless mode, the solar inverter operates independently of the user's power grid. The energy generated by the solar panels is stored in batteries and then transferred to the connected load.
.
If you use the SINUS PRO ULTRA series inverter to power photovoltaic cells (cyclic battery charging), we recommend using batteries best suited for this purpose, e.g.: gel GEL VPRO SOLAR, DEEP CYCLE VPRO SOLAR or lithium LiFePO4.
Make sure that the correct battery type and charging current are selected in the PSU settings according to the capacity. Incorrect selection of battery charging parameters can cause battery damage and void the battery warranty. Using non-sustainable AGM type batteries (e.g. AGM series, AGM OPTI, AGM VPRO) ) for photovoltaic installations (cyclic charging systems) may cause a faster decrease in battery performance/capacity. Such batteries are intended and best suited for buffer operation (voltage backup, UPS systems).
As with other battery types, choosing the wrong charging current can damage the battery and void the battery warranty.
Technical specifications
- Rated (instantaneous) power:11000VA
- Constant (continuous) power: 5200 W
- Output voltage waveform: pure sine wave
- Output voltage (inverter): 230 V DC
- Maximum efficiency (inverter): 90%-93%
- Switching time (inverter): 90 %-93%
- Switching time (inverter): 1: 10ms (UPS)/20ms (APL)
- Voltage (mains input):230VAC
- Input voltage range (mains):170~280VAC/90~280VAC/
- Frequency range:50Hz/60Hz
- Battery voltage:48VDC
- High-current voltage range Vmp:150~430VDC
- Max. Open Circuit Voltage Voc:450VDC
- Max. Charging current Imp:80A
- Operating temperature: 0°C~50°C
- Dimensions: 295x505x14.2mm +/-3%
- Weight:13kg +/-3%
Additional information
| Svars | 13,0000 kg |
|---|
