Output voltage: 12 V DC </span>;>Setting the output current: 12 … 14 V DC </span>;>Power adapter current performance: 6.3 A </span>;>Output power: 75.6W </span>;
<table>
Adapter type:
Impulse
Voltage power:
Output voltage:
12 V DC
Setting the output current:
12 … 14 V DC
Power adapter current performance:
6.3 A
Output power:
75.6W
Number of outputs:
1 piece
Efficiency:
85.5 %
Case type:
DIN
Protection:
Operating temperature/relative humidity:
-20 °C … 70 °C / 20 … 95 %
Weight:
0.43 kg

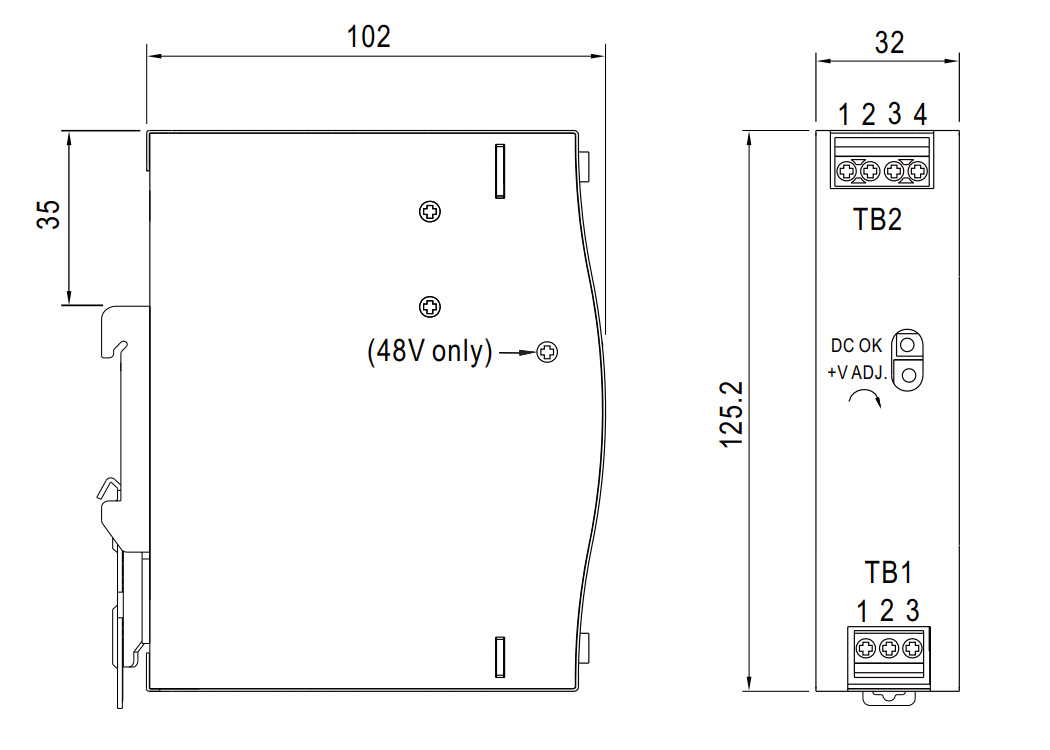

Size:
126 x 116 x 32 mm
Manufacturer / Brand:
MEAN WELL
WARRANTY:
3 years
Additional information
| Svars | 0,5000 kg |
|---|---|
| Dimensions | 150 × 145 × 55 cm |
