Technical Specification:

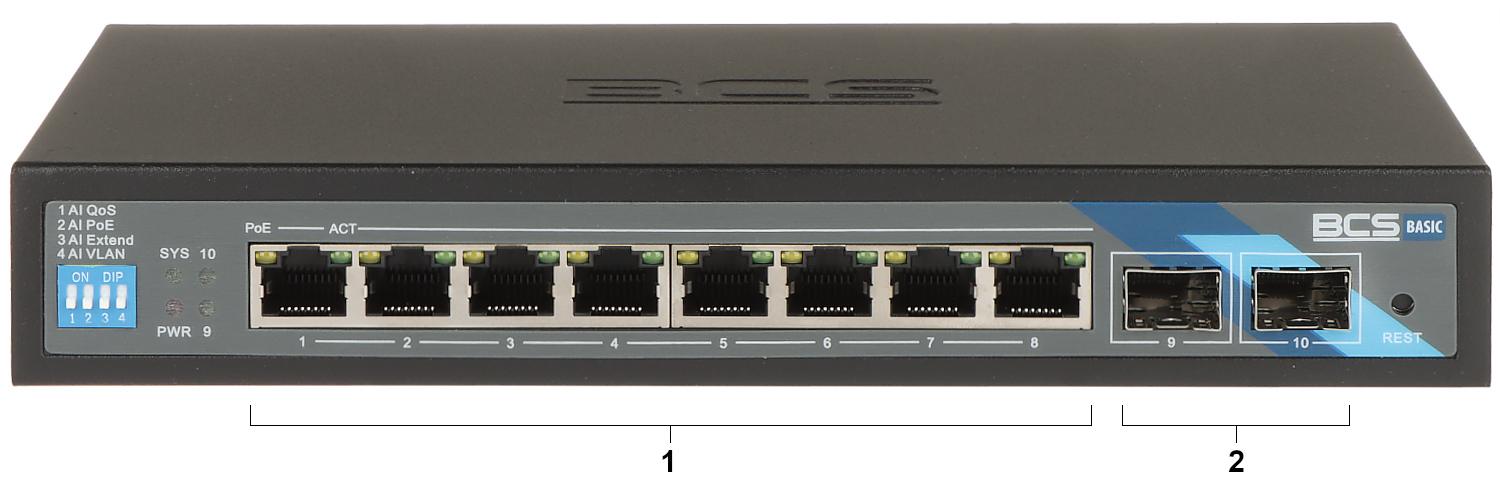

| LAN ports: | 2 x SFP 8 x RJ45 ( 8 x PoE (802.3af/at) ) |
| Management via WWW/console: | - |
| LED diodes: | Power, Link/Act, PoE, System, SFP |
| Transmission speed: | 10 / 100 / 1000 Mbps – 8 LAN & PoE ports, 1000 Mbps – 2 SFP ports |
| Maximum output power: | 30W / PoE socket |
| Maximum total power: | 96W |
| Selected characteristics: | 2 x SFP (Uplink) port 4 working modes: AI VLAN, AI EXTEND, AI PoE, AI QoS – setting with a switch AI VLAN mode – ports 1, 2, 3, 4, 5, 6, 7, 8 are isolated from each other and only have a connection to the Uplink port AI EXTEND mode – ports 1, 2, 3, 4, 5, 6, 7, 8 support transmission up to 250 m (cat5e, cat6) AI QOS (Quality Of Service) mode – video packet prioritization AI PoE mode – monitoring of ports supplying PoE devices and automatic restart by disconnecting power if an unresponsive device is detected ICMP DoS attack protection Compatible with DHCP snooping Advanced device functions ACL data flow classification for L2 ~ L4 support Port mirroring function Port forwarding IGMP Snooping V1/V2 802.1p/DSCP traffic priority Spanning Tree STP/RSTP/MSTP Multicast System windows RESET button Metal housing |
| Certificates: | CE |

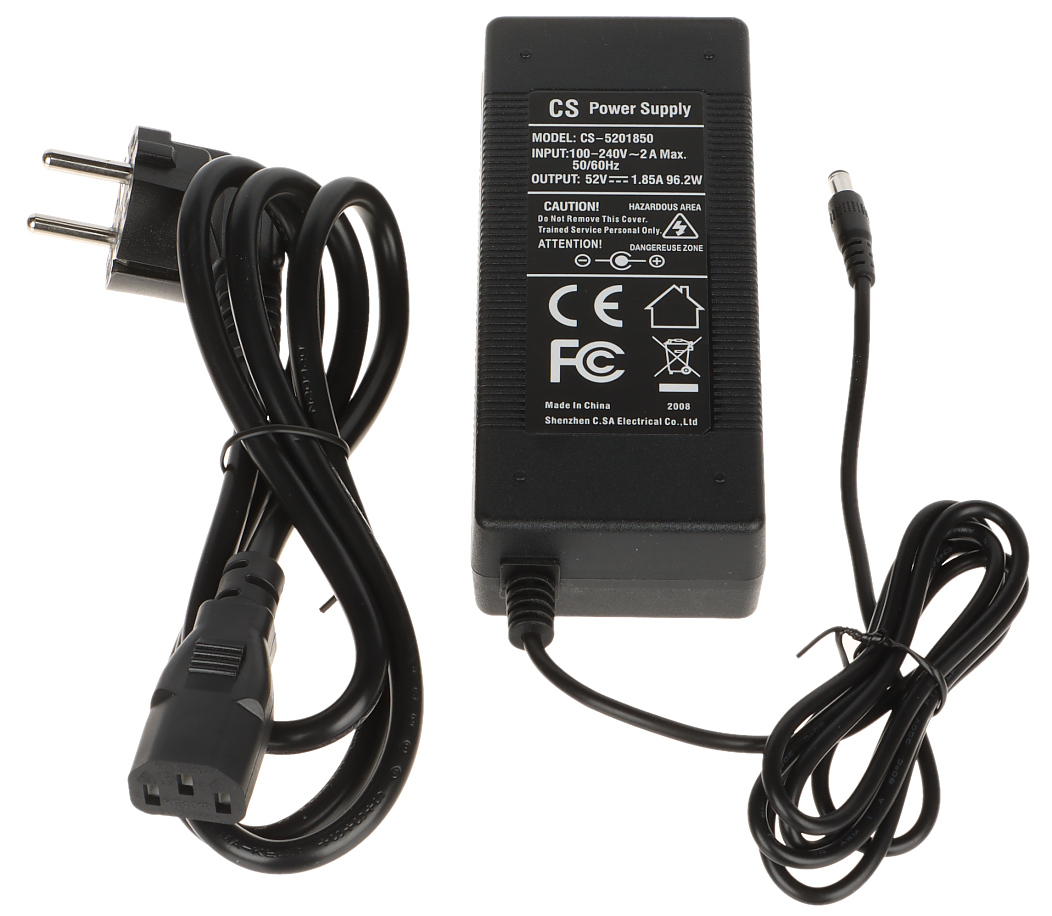

| Source of energy supply: | 48 V … 56 V DC 52 V / 1.85 A (power adapter included) |
| Weight: | 0.68 kg |
| Size: | 225 x 120 x 35 mm |
| Manufacturer / Brand: | BCS BASIC |
| Warranty: | 2 years |
