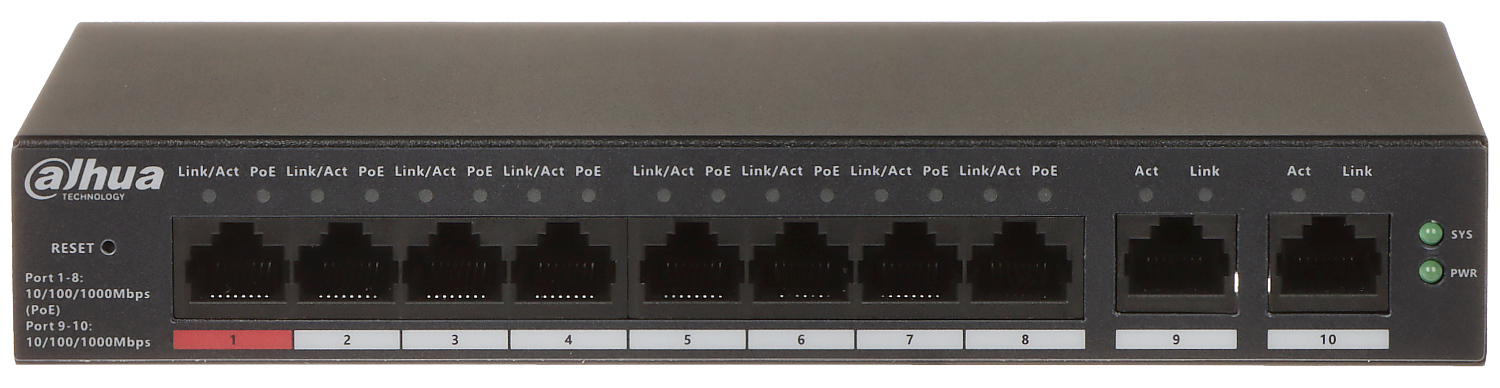

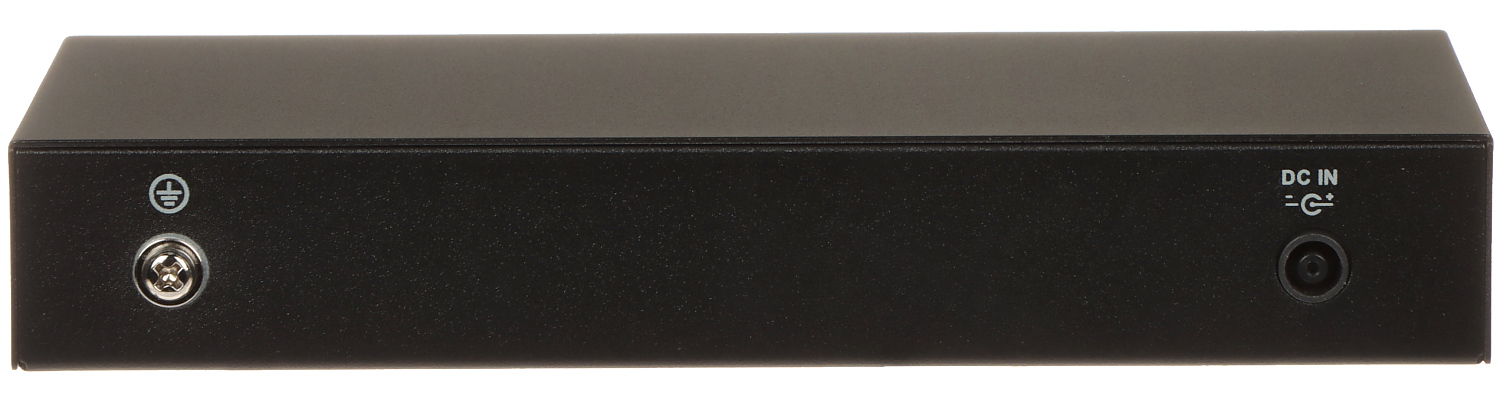

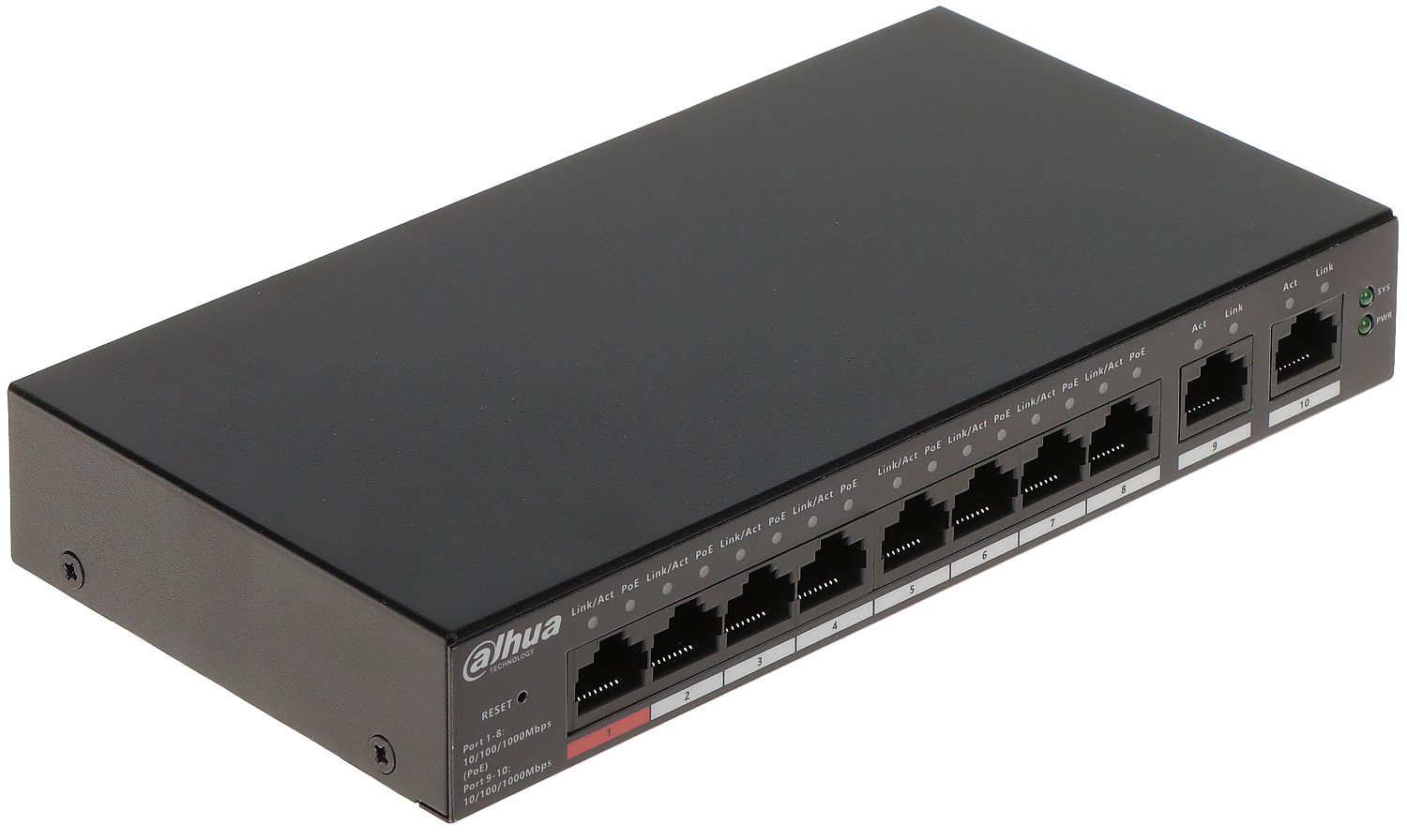

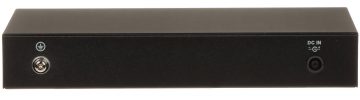

Name: SWITCH POE CS4010-8GT-110-V1 8-PORTU DAHUA
SKU: CS4010-8GT-110-V1
Availability: InStock

SWITCH POE CS4010-8GT-110-V1 8-PORTU DAHUA

Preces kods: CS4010-8GT-110-V1

EAN: 5902887101113

Piegādes laiks: 10-13 Martā

Estimated Delivery Dates

118,53 €

Availability: 2

LAN ports: 8 x RJ45 10/100/1000 Base-T ( 1 x Hi-PoE / PoE (802.3bt) + 7 x PoE (802.3af/at) ), 2 x RJ45 10/100/1000 Base-T – Uplink </span>;>Transmission speed: 10 / 100 / 1000 Mbps : 8 LAN & PoE porti, 10 / 100 / 1000 : 2 Uplink porti </span>;>Maximum total power: 110W </span>;>Selected characteristics: The switch is managed via the web and cloud (DoLynk Care app) </span>; <table>

LAN ports:

8 times RJ45 10/100/1000 Base-T ( 1 x Hi-PoE / PoE (802.3bt) + 7 x PoE (802.3af/at) ),

2 times RJ45 10/100/1000 Base-T – Uplink
Transmission speed:

10 / 100 / 1000 Mbps : 8 LAN & PoE porti,

10 / 100 / 1000 : 2 Uplink porti

Maximum output power:

90 W / Hi-PoE / PoE 802.3bt ligzda – 1 ligzda

30 W / PoE 802.3af/at ligzda – 2 … 8 porti
Maximum total power:
110W

MAC address table:
8k
Management:

Working mode:
Extend On : 250 m, 10 Mbps @ UTP cat. 5e, 6
LED diodes:
Power, System, PoE, Link/Act

Selected characteristics:

The switch is managed via the web and cloud (DoLynk Care app)

PoE power supply mode: The device is compatible with 8-pin power supply – pins: 1-2(+), 3-6(-), 4-5(+), 7-8(-)

protection against lightning discharge and voltage differences between devices

Watchdog PoE

Loop Protection

Compliance with LLDP protocol

Spanning Tree STP/RSTP

Port Based VLAN : 32

Data flow control (802.3x)

DHCP client

RESET key

Possibility of wall mounting
Certificates:
CE

Protection:

Lightning protection (common/differential): 4 / 2 kV

Protection against electrostatic discharge – Contact/Air (ESD/EMP): 6 / 8 kV
Hull:
Desktop, Metal

Source of energy supply:

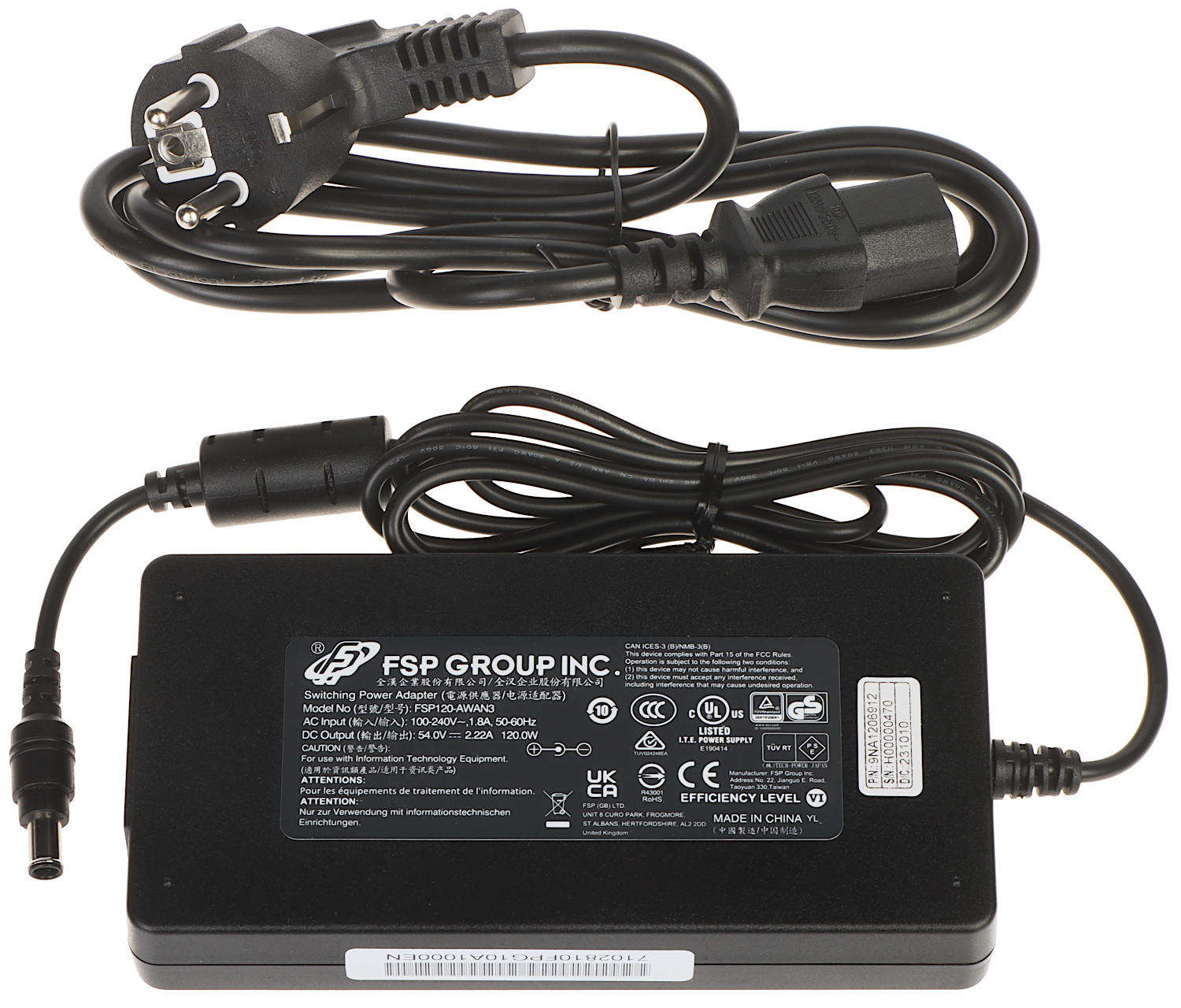

54 V DC / 2.22 A (komplektā strāvas adapteris)
Power consumed:
max. 110 W

Operating temperature:
-10°C … 55°C
Weight:
0.52 kg

Size:
190 x 106 x 30 mm
Manufacturer / Brand:
DAHUA

WARRANTY:
3 years

Additional information

Svars	1,2880 kg
Dimensions	255 × 245 × 90 cm
