Name: SWITCH POE DS-3T0506HP-E/HS 4-PORTU SFP Hikvision
SKU: DS-3T0506HP-E/HS
Availability: InStock

SWITCH POE DS-3T0506HP-E/HS 4-PORTU SFP Hikvision

Preces kods: DS-3T0506HP-E/HS

EAN: 6941264038351

Piegādes laiks: 10-13 Martā

Estimated Delivery Dates

97,96 €

Availability: 11

LAN ports: 4 x RJ45 10/100/1000 Base-TX ( 1 x Hi-PoE (802.3af/at/bt) + 3 x PoE (802.3af/at) ), 2 x SFP ligzda 1000 Base-X – Uplink </span>;>Transmission speed: 10 / 100 / 1000 Mbps – 4 LAN & PoE porti, 1000 Mbps – 2 SFP (Uplink) porti </span>;>Maximum total power: 60W </span>; <table>

LAN ports:

4 times RJ45 10/100/1000 Base-TX ( 1 x Hi-PoE (802.3af/at/bt) + 3 x PoE (802.3af/at) ),

2 x SFP ligzda 1000 Base-X – Uplink
Transmission speed:

10 / 100 / 1000 Mbps – 4 LAN & PoE porti,

1000 Mbps – 2 SFP (Uplink) ports

Maximum output power:

60 W / Hi-PoE ligzda – 1 ligzda

30 W / PoE ligzda – 2 … 4 porti
Maximum total power:
60W

MAC address table:
2k
Management:

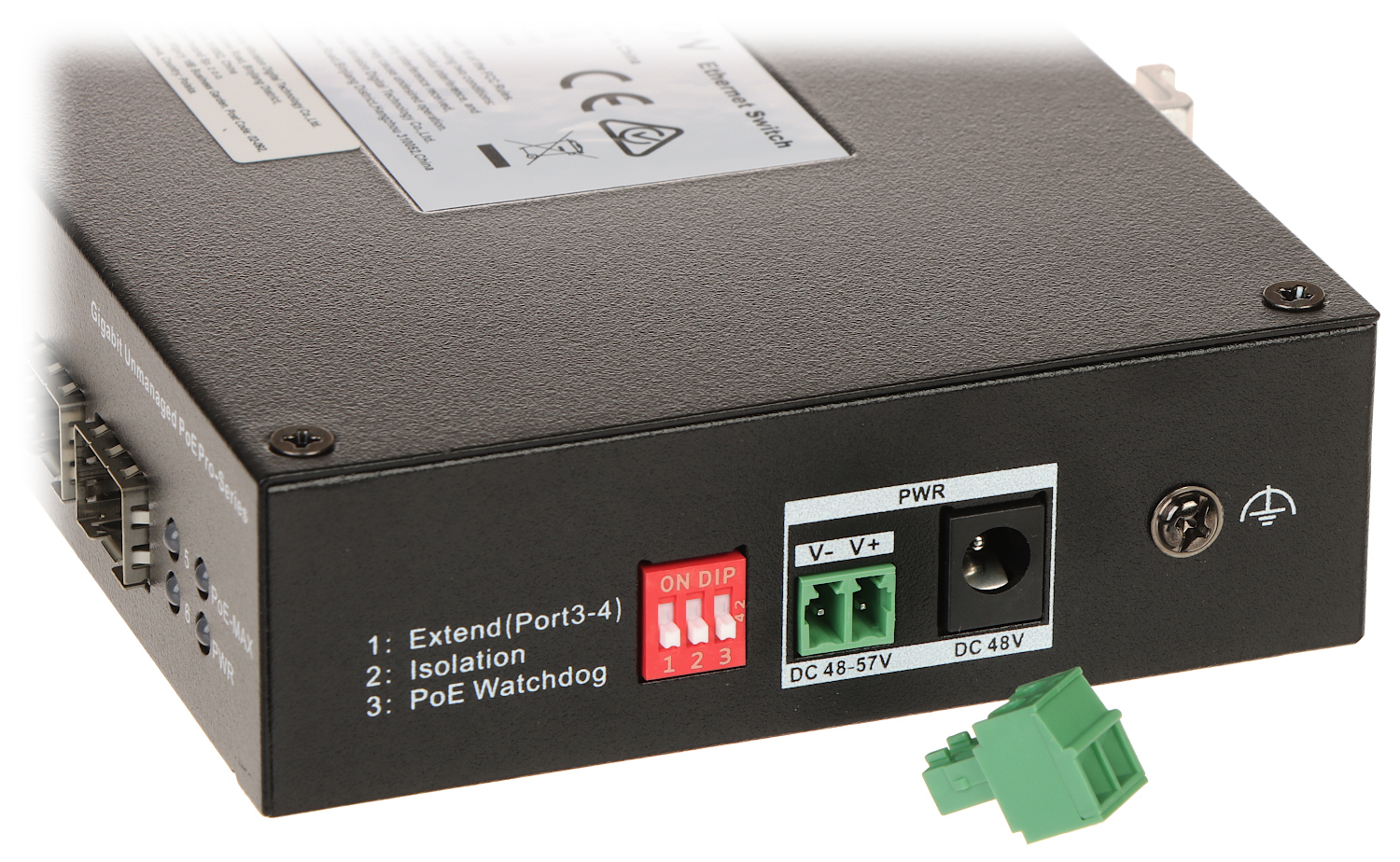

Working mode:

Extend Off : 100 m, 1000 Mbps – 1 … 4 porti

Extend On : 300 m, 10 Mbps – 3, 4 porti

Port Isolation : 1 … 4 porti

Watchdog PoE : 1 … 4 porti
LED diodes:
Power, Link/Act, PoE, PoE Max, SFP – 5, 6 porti

Selected characteristics:

Auto MDI/MDI-X detection - automatic detection of data transmission mode

Pārsprieguma aizsardzība : 6 kV – PoE porti

EXTEND režīms – 3, 4 porti

Ierīce ir saderīga ar 8–pinu barošanas avotu : dzīslas 1-2, 3-6, 4-5, 7-8

Port isolation

PoE Watchdog / PD Alive režīms – pieslēgvietu monitorings, kas apgādā PoE ierīces un automātiskā restartēšana, atvienojot strāvas padevi, ja tiek konstatēta nereaģējošā ierīce
Certificates:
CE, FCC, RoHS

Hull:
Metal
Source of energy supply:

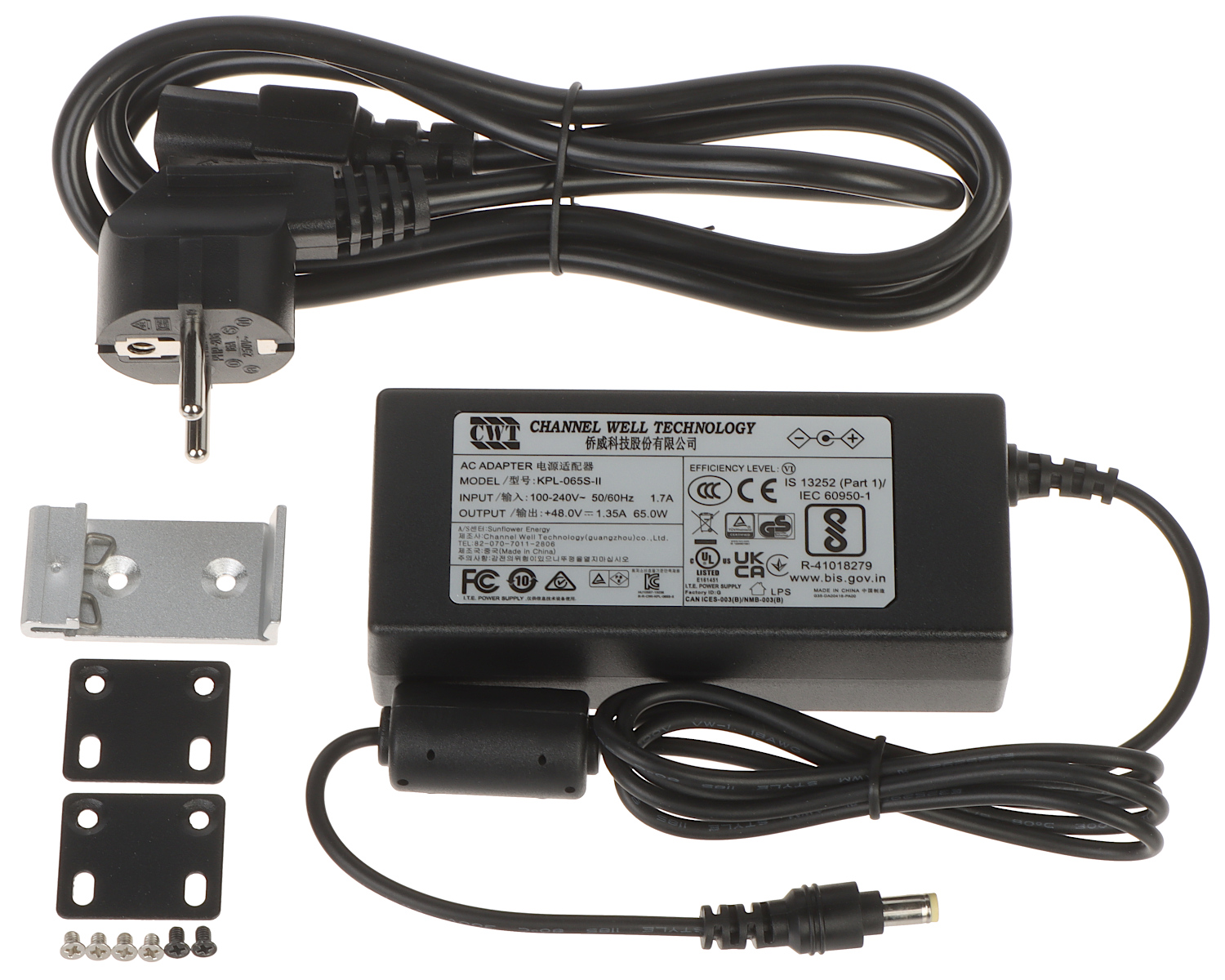

48V DC / 1.35 A (power adapter included)

Power consumed:
max. 65 W
Operating temperature:
-30 °C … 65 °C

Weight:
0.36 kg
Size:
158 x 104 x 32 mm

Manufacturer / Brand:
Hikvision
SAP Code:
301801602

WARRANTY:
3 years

Additional information

Svars	0,9960 kg
Dimensions	225 × 130 × 110 cm
