Technical Specification:

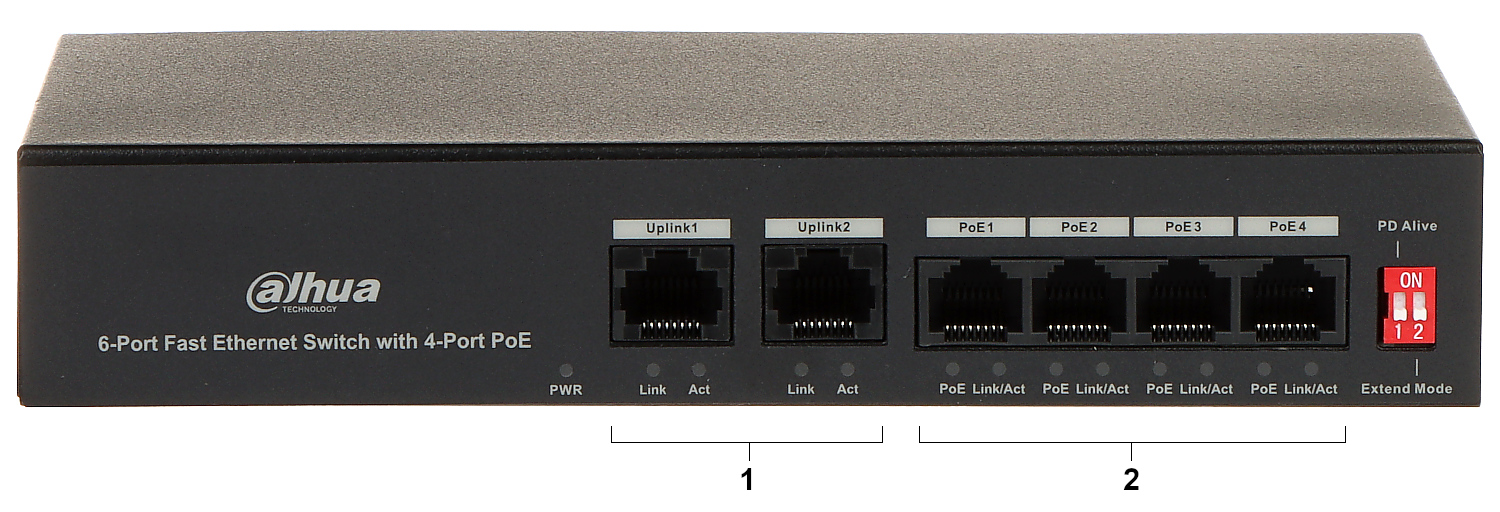

| LAN ports: | 2 x RJ45 10/100 Base-TX – Uplink, 4 x RJ45 10/100 Base-TX ( 4 x PoE (802.3af/at) ) |
| Standards: | IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at |
| Management via WWW/console: | - |
| LED diodes: | Power, Link/Act, PoE |
| Transmission speed: | 10 / 100 Mbps : 2 LAN ports + 4 LAN & PoE ports |
| Maximum output power: | 30W / PoE socket |
| Maximum total power: | 36W |
| MAC address table: | 2k |
| Working mode: | Extend On : 250 m, 10 Mbps Extend Off : 100 m, 100 Mbps |
| Selected characteristics: | PoE power mode: The device is compatible with 8-pin power supply EXTEND mode – port PoE1, PoE2, PoE3, PoE4 support transmission up to 250 m Watchdog PoE / PD Alive mode – monitoring of ports supplying PoE devices and automatic restart by disconnecting power supply if an unresponsive device is detected protection against lightning discharge and voltage differences between devices Kensington Lock |
| Certificates: | CE, FCC |

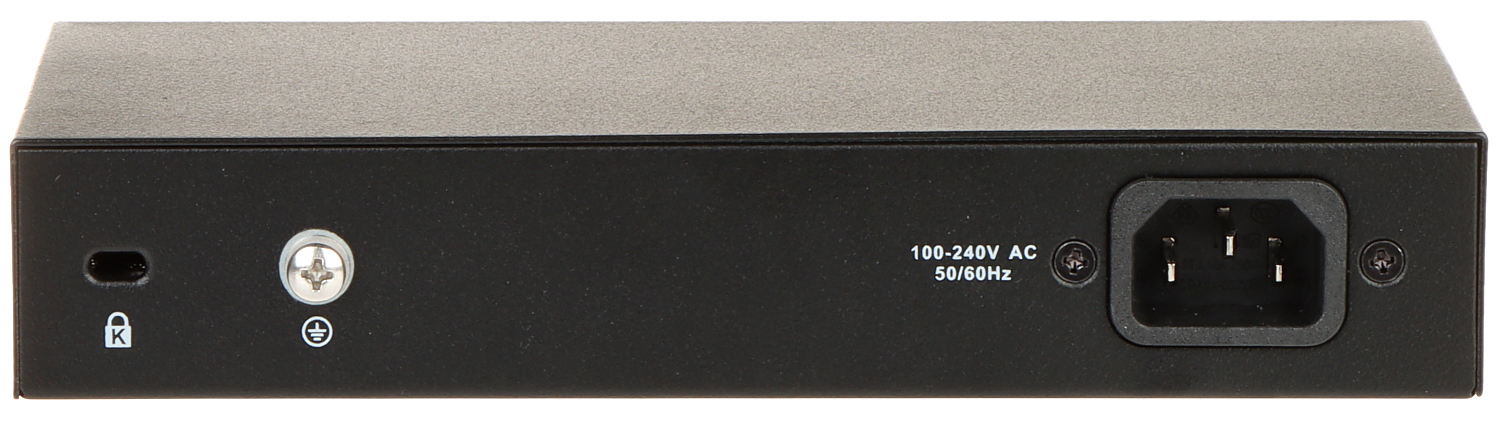

| Source of energy supply: | 100V … 240V AC |
| Operating temperature: | -10°C … 55°C |
| Weight: | 0.56 kg |
| Size: | 194 x 108 x 35 mm |
| Manufacturer / Brand: | DAHUA |
| Warranty: | 3 years |
