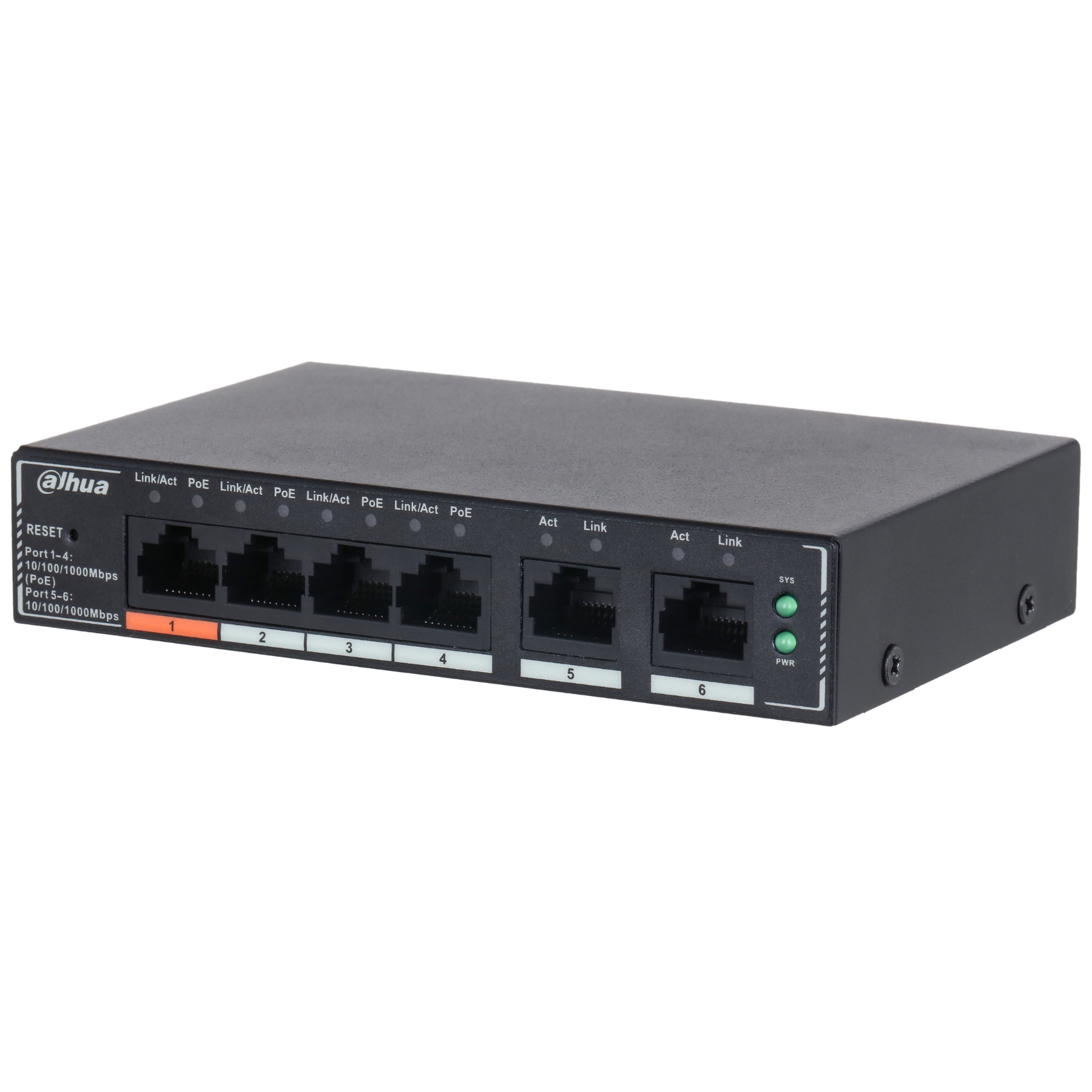

Name: Switch POE SG4006P 4-PORTU DAHUA
SKU: SG4006P
Availability: InStock

Switch POE SG4006P 4-PORTU DAHUA

Preces kods: SG4006P

EAN: 6939554904493

Piegādes laiks: 10-13 Martā

Estimated Delivery Dates

59,62 €

Availability: 2

LAN ports: 4 x RJ45 10/100/1000 Base-T ( 1 x Hi-PoE / PoE (802.3bt) + 3 x PoE (802.3af/at) ), 2 x RJ45 10/100/1000 Base-T – Uplink </span>;>Transmission speed: 10 / 100 / 1000 Mbps : 4 LAN & PoE porti, 10 / 100 / 1000 Mbps : 2 RJ45 (Uplink) porti, </span>;>Maximum total power: 60W </span>;>Selected characteristics: The switch is managed via the web and cloud (DoLynk Care app) </span>; <table>

LAN ports:

4 times RJ45 10/100/1000 Base-T ( 1 x Hi-PoE / PoE (802.3bt) + 3 x PoE (802.3af/at) ),

2 times RJ45 10/100/1000 Base-T – Uplink
Management:

Default IP address:
192.168.1.110
Default username/admin password:
admin / –
Administrator password must be set during first launch

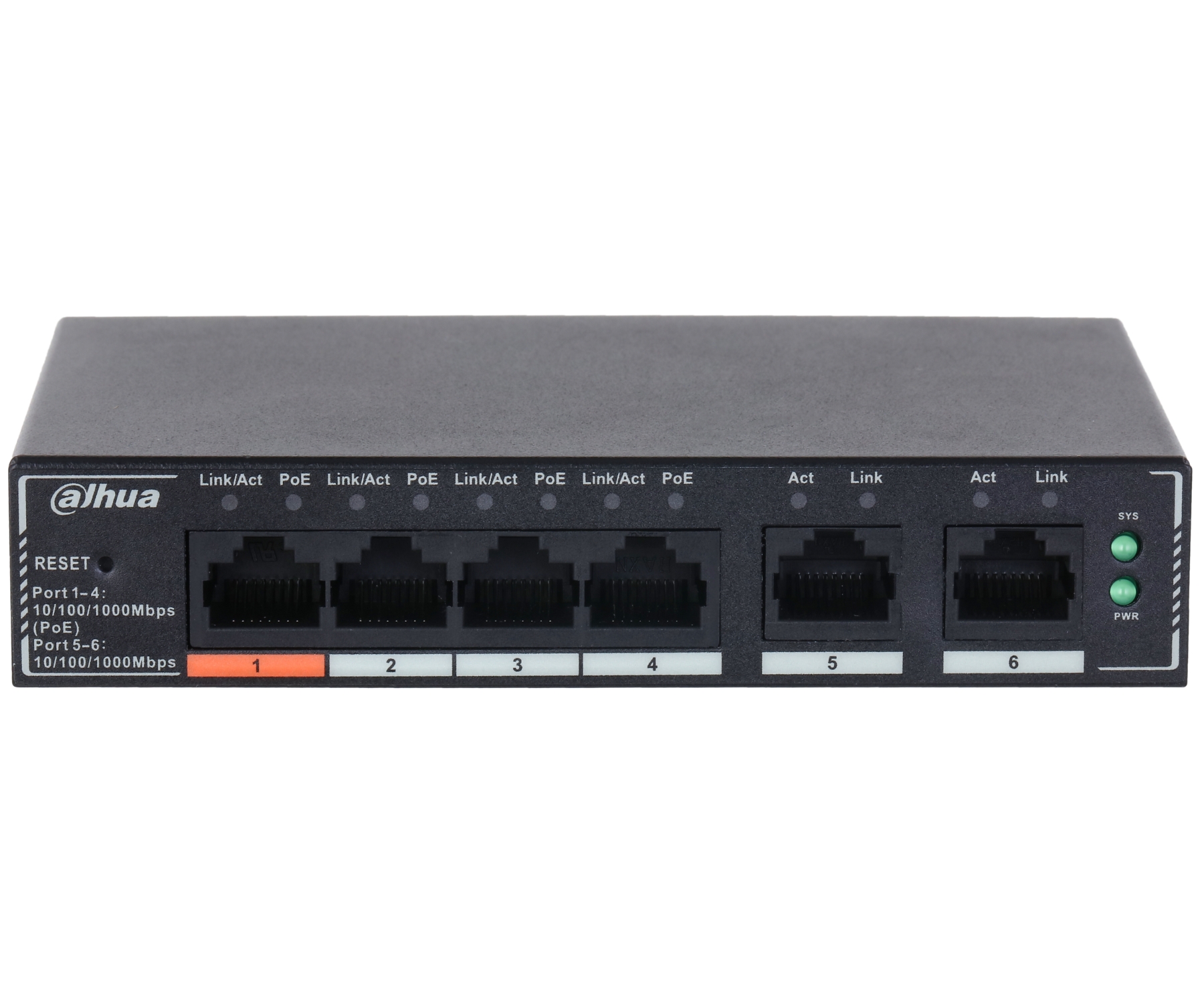

LED diodes:
Link / Act, PoE, Power, System
Transmission speed:

10 / 100 / 1000 Mbps : 4 LAN & PoE porti,

10 / 100 / 1000 Mbps : 2 RJ45 (Uplink) porti ,

Maximum output power:

60 W / Hi-PoE / PoE 802.3bt ligzda – 1 ligzda

30 W / PoE 802.3af/at ligzda – 2 … 4 porti
Maximum total power:
60W

MAC address table:
8k
Working mode:

Long Distance PoE On : 250 m, 10 Mbps @ UTP kat. 5e, 6

Selected characteristics:

The switch is managed via the web and cloud (DoLynk Care app)

PoE power supply mode: The device is compatible with 8-pin power supply – pins: 1-2(+), 3-6(-), 4-5(+), 7-8(-)

protection against lightning discharge and voltage differences between devices

Watchdog PoE

Loop Protection

Compliance with LLDP protocol

Spanning Tree STP/RSTP

Port Based VLAN

Data flow control (802.3x)

DHCP client

RESET key
Protection:

Lightning protection (common/differential): 4 / 2 kV

Protection against electrostatic discharge – Contact/Air (ESD/EMP): 6 / 8 kV

Hull:
Metal

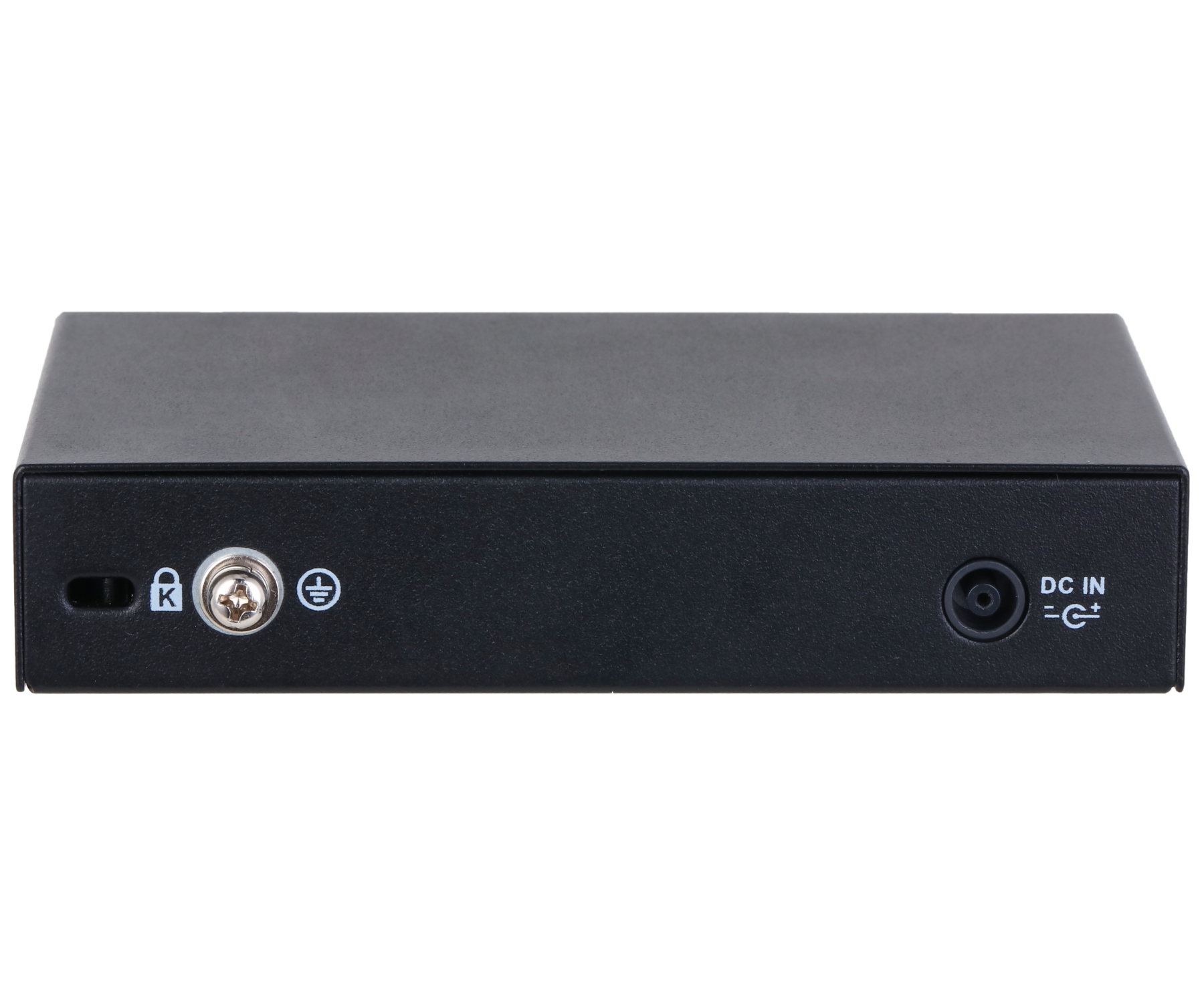

Source of energy supply:

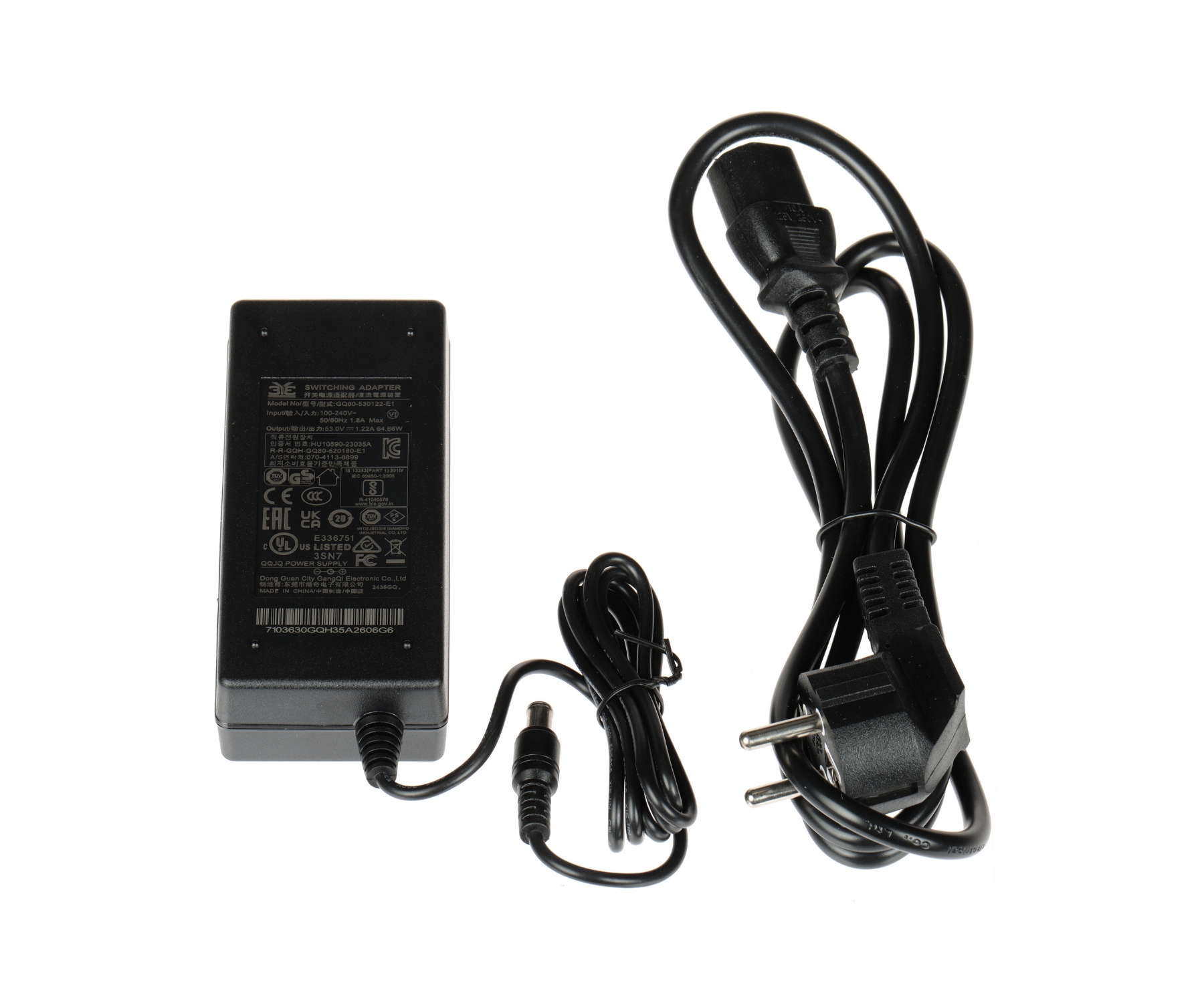

53 V DC 1.22 A (komplektā strāvas adapteris)

Power consumed:
max. 65 W
Operating temperature:
-10°C … 55°C

Weight:
0.29 kg

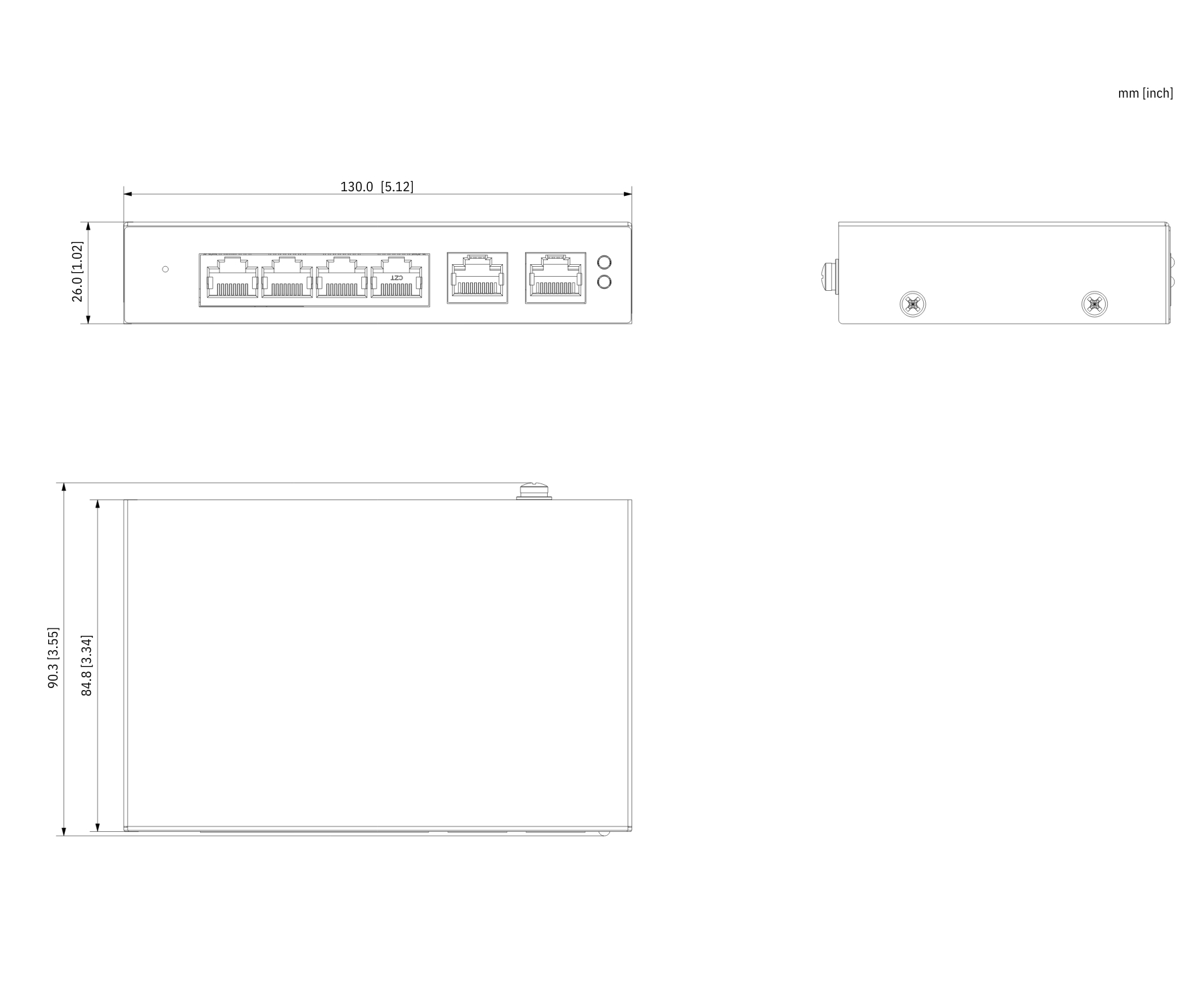

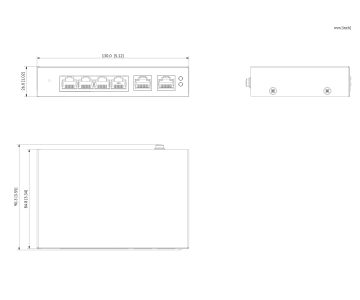

Size:
130 x 90 x 26 mm

Manufacturer / Brand:
DAHUA
WARRANTY:
3 years

Additional information

Svars	0,9500 kg
Dimensions	270 × 240 × 80 cm
