UBIQUITI LITEBEAM LONG RANGE LBE-5AC-LR

Name: UBIQUITI LITEBEAM LONG RANGE LBE-5AC-LR
SKU: 23567
Availability: OutOfStock

Product code: 23567

Piegādes laiks: 17-20 Aprīlī

Estimated Delivery Dates

131,68 €

Availability: 0

Apraksts
Additional information

UBIQUITI LITEBEAM LONG RANGE LBE-5AC-LR

Key features:

running 5 GHz band
2 standards. 80. a/n/ac
for radio configuration 2,4 GHz
energy increase 26 dBi

1 x Gigabit Ethernet port

permeability 450 Mbps -sm-6″>

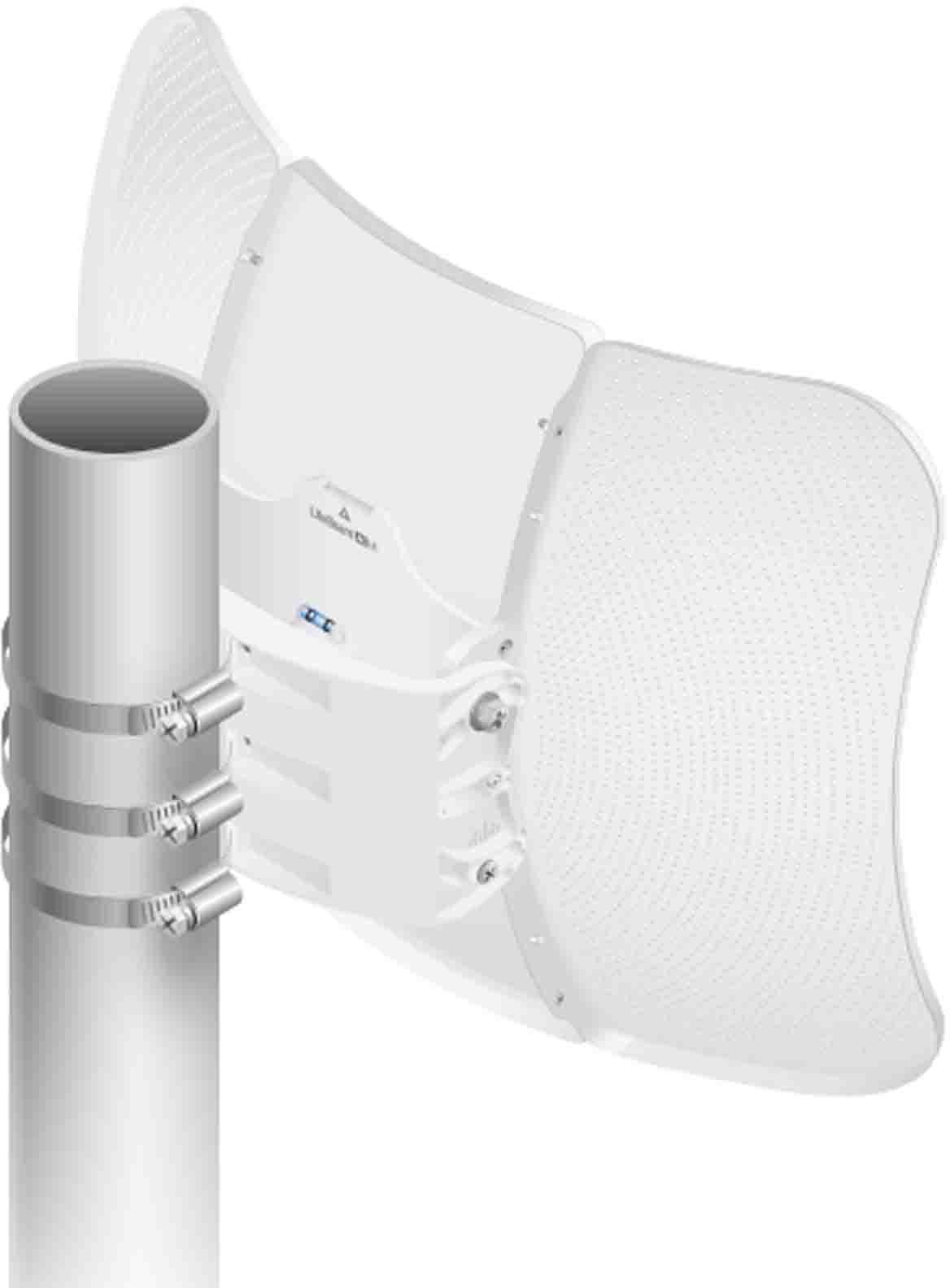

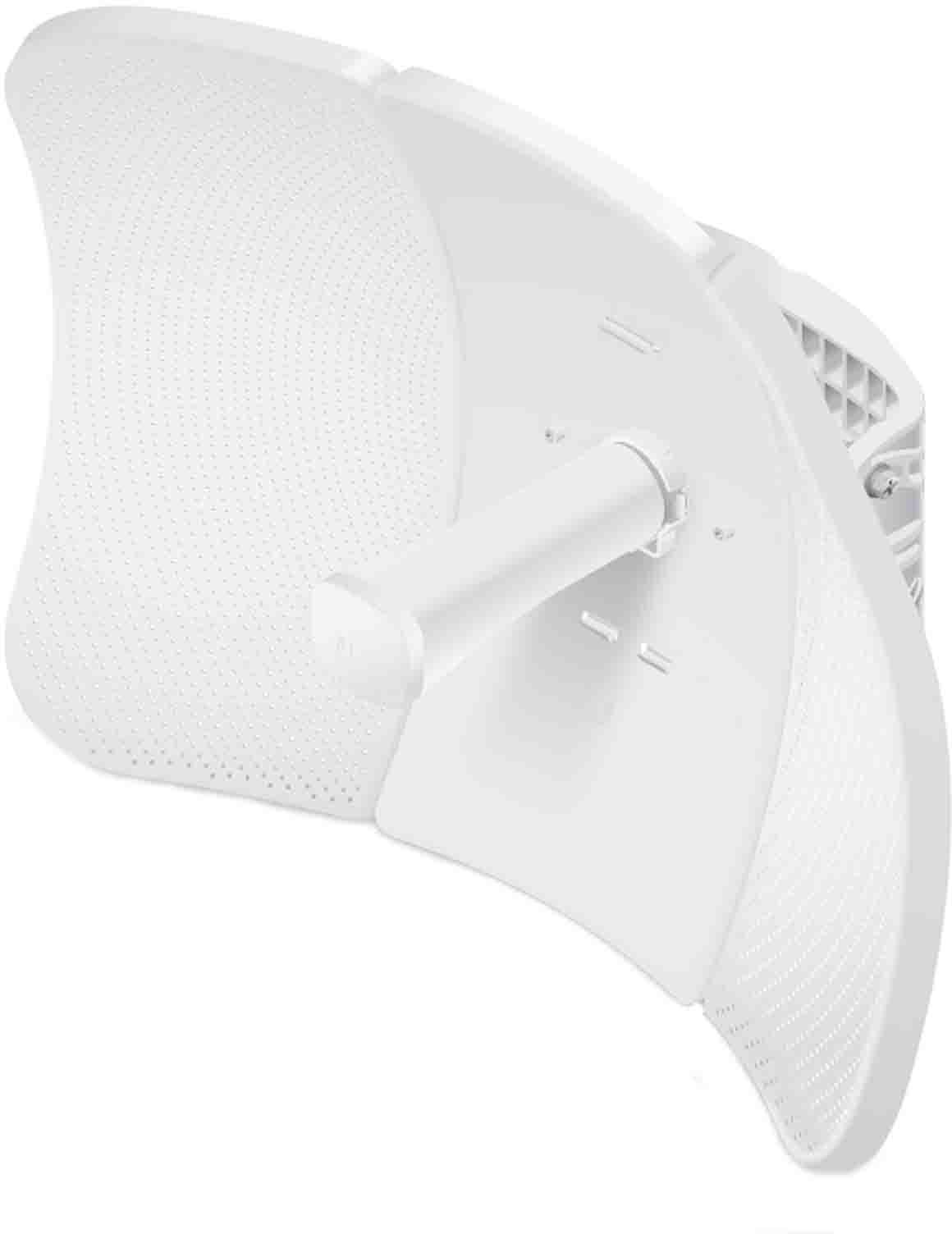

is a complete wireless device operating in the 5 GHz band. It is equipped with a Gigabit Ethernet port and also supports 802.11 a/n/ac standards. The Long-Range version differs from the LiteBeam 5AC Gen2 in its power gain. The long-range energy gain is 26 dBi, while the basic version of the antenna has 23 dBi.

The LBE-5AC-LR is a dedicated 2.4 GHz radio for configuration only. Power is supplied via passive PoE, a 24 V, 0.3 A power supply is included. The new LiteBeam is ideal for point-to-point connections and serves as a client device in hard-to-reach locations. Reach 450 Mbps throughput.

The device works with airOS® v8 software - a revolutionary operating system Ubiquiti® airMAX AC products.

Technical specifications

kg

Energy gain 26 dBi.>

25 dBm

Network interface 1x Gigabit Ethernet port 10/100/1000 Mbps

Processor MIPS D 74Kc. >
>

LED Power, Ethernet

Frequency range 5150-575 MHz

Control radio Yes, frequency 2412 - PtP: 10 / 20 / 30 / 40 / 50 / 60 / 80 MHz

PtMP mode: 10/20/30/40 MHz

Housing material plastics Plastics On pole (bracket included)

Power supply method Passive PoE (pairs 4, 5+; 7, 😎

Voltage range 24 V DC><± 10%

7 w

Dimensions 512,5 x 385,75 x 258,3 mm

weight without handle: 1,36 kg

wind resistance 550 n at 200 km/h

wind resistance 200 km/h

esd/emp protection Isable operating temperature -40 to 70 degrees C

Permissible humidity 5%-95% non-condensing

Certificates CE, FCC, IC

Broadcasting power 25 dBm Network interface 1x Gigabit Ethernet port 10/100/1000 Mbps Processor MIPS D 74Kc. >
> LED Power, Ethernet Frequency range 5150-575 MHz Control radio Yes, frequency 2412 - PtP: 10 / 20 / 30 / 40 / 50 / 60 / 80 MHz PtMP mode: 10/20/30/40 MHz Housing material plastics Plastics On pole (bracket included) Power supply method Passive PoE (pairs 4, 5+; 7, 😎 Voltage range 24 V DC><± 10%
7 w Dimensions 512,5 x 385,75 x 258,3 mm weight without handle: 1,36 kg
kg wind resistance 550 n at 200 km/h wind resistance 200 km/h esd/emp protection Isable operating temperature -40 to 70 degrees C Permissible humidity 5%-95% non-condensing Certificates CE, FCC, IC

Broadcasting power 25 dBm Network interface 1x Gigabit Ethernet port 10/100/1000 Mbps Processor MIPS D 74Kc. >
> LED Power, Ethernet Frequency range 5150-575 MHz Control radio Yes, frequency 2412 - PtP: 10 / 20 / 30 / 40 / 50 / 60 / 80 MHz PtMP mode: 10/20/30/40 MHz Housing material plastics Plastics On pole (bracket included) Power supply method Passive PoE (pairs 4, 5+; 7, 😎 Voltage range 24 V DC><± 10%
7 w Dimensions 512,5 x 385,75 x 258,3 mm weight without handle: 1,36 kg
kg wind resistance 550 n at 200 km/h wind resistance 200 km/h esd/emp protection Isable operating temperature -40 to 70 degrees C Permissible humidity 5%-95% non-condensing Certificates CE, FCC, IC

10 / 20 / 30 / 40 MHz Housing material Aluminium and PC plastics Installation on pole (bracket included) Power supply method
td> Voltage range 24 V DC± 10% Max. energy consumption 7 w Dimensions 512,5 x 385,75 x 258,3 mm weight without handle: 1,36 kg
kg wind resistance 550 n at 200 km/h wind resistance 200 km/h esd/emp protection Isable operating temperature -40 to 70 degrees C Permissible humidity 5%-95% non-condensing Certificates CE, FCC, IC
