| DC voltage measurements: |
60 mV ± (0.025% + 20) @ 0.001 mV , 600 mV ± (0.025% + 5) @ 0.01 mV , 6 V ± (0.025% + 5) @ 0.0001 V , 60 V ± (0.025% + 5) @ 0.001 V , 600 V ± (0.03% + 5) @ 0.01 V , 1000 V ± (0.03% + 5) @ 0.1 V |
| AC voltage measurements: |
60 mV @ 0.001 mV : ± (0.6% + 60) @ 45 Hz … 1 kHz , ± (1.2% + 60) @ >1 kHz … 10 kHz , ± (3.0% + 60) @ >10 kHz … 20 kHz , ± (4.0% + 60) @ >20 kHz … 100 kHz , 600 mV @ 0.01 mV : ± (0.3% + 30) @ 45 Hz … 1 kHz ± (1.2% + 40) @ >1 kHz … 10 kHz ± (3.0% + 40) @ >10 kHz … 20 kHz ± (4.0% + 40) @ >20 kHz … 100 kHz , 6 V @ 0.0001 V : ± (0.3% + 30) @ 45 Hz … 1 kHz ± (1.2% + 40) @ >1 kHz … 10 kHz ± (3.0% + 40) @ >10 kHz … 20 kHz ± (4.0% + 40) @ >20 kHz … 100 kHz , 60 V @ 0.001 V : ± (0.3% + 30) @ 45 Hz … 1 kHz ± (1.2% + 40) @ >1 kHz … 10 kHz ± (3.0% + 40) @ >10 kHz … 20 kHz ± (4.0% + 40) @ >20 kHz … 100 kHz 600 V @ 0.01 V : ± (0.3% + 30) @ 45 Hz … 1 kHz ± (1.2% + 40) @ >1 kHz … 10 kHz , ± (3.0% + 40) @ >10 kHz … 20 kHz , 1000 V @ 0.1 V : ± (0.6% + 30) @ 45 Hz … 1 kHz ± (3.0% + 40) @ >1 kHz … 5 kHz , ± (6.0% + 40) @ >5 kHz … 10 kHz |
| DC current measurements: |
600 µA ± (0.08% + 20) @ 0.01 µA , 6000 µA ± (0.08% + 10) @ 0.1 µA , 60 mA ± (0.08% + 20) @ 0.001 mA , 600 mA ± (0.15% + 10) @ 0.01 mA , 10 A ± (0.5% + 10) @ 0.001 A |
| AC current measurements: |
600 µA @ 0.01 µA : ± (0.6% + 40) @ 45 Hz … 1 kHz ± (1.2% + 40) @ >1 kHz … 10 kHz 6000 µA @ 0.1 µA : ± (0.6% + 20) @ 45 Hz … 1 kHz ± (1.2% + 40) @ >1 kHz … 10 kHz 60 mA @ 0.001 mA : ± (0.6% + 40) @ 45 Hz … 1 kHz ± (1.2% + 40) @ >1 kHz … 10 kHz 600 mA @ 0.01 mA : ± (0.6% + 20) @ 45 Hz … 1 kHz ± (1.2% + 40) @ >1 kHz … 10 kHz 10 A @ 0.001 A : ± (1.0% + 20) @ 45 Hz … 1 kHz ± (3.0% + 40) @ >1 kHz … 10 kHz |
| Active resistance measurements: |
600 Ω ± (0.05% + 10) @ 0.01 Ω , 6 kΩ ± (0.05% + 2) @ 0.0001 kΩ , 60 kΩ ± (0.05% + 2) @ 0.001 kΩ , 600 kΩ ± (0.05% + 2) @ 0.01 kΩ , 6 MΩ ± (0.3% + 10) @ 0.0001 MΩ , 60 MΩ ± (2.0% + 10) @ 0.001 MΩ |
| Capacitance measurement: |
6 nF ± (3.0% + 10) @ 0.001 nF , 60 nF ± (2.5% + 5) @ 0.01 nF , 600 nF ± (2.0% + 5) @ 0.1 nF , 6 µF ± (2.0% + 5) @ 0.001 µF , 60 µF ± (2.0% + 5) @ 0.01 µF 600 µF ± (2.0% + 5) @ 0.1 µF , 6 mF ± (5.0% + 5) @ 0.001 mF , 60 mF @ 0.01 mF – vizuālais mērījums |
| Inductance measurement: |
- |
| Frequency measurement: |
60 Hz ± (0.02% + 8) @ 0.001 Hz , 600 Hz ± (0.01% + 5) @ 0.01 Hz , 6 kHz ± (0.01% + 5) @ 0.0001 kHz , 60 kHz ± (0.01% + 5) @ 0.001 kHz , 600 kHz ± (0.01% + 5) @ 0.01 kHz , 6 MHz ± (0.01% + 5) @ 0.0001 MHz , 60 MHz ± (0.01% + 5) @ 0.001 MHz |
| Measurement of the duty cycle of a square wave signal: |
10 % … 90 % ± (1.2% + 30) @ 0.01 % |
| Pulse width measurement: |
250 ms ± (1.2% + 30) @ 0.001 ms … 0.01 ms |
| Temperature measurements: |
°C -40 … 40 °C ± (2.0% + 30) @ 0.1 °C >40 … 400 °C ± (1.0% + 30) @ 0.1 °C >400 … 1000 °C ± 2.5% @ 0.1 °C, °F -40 … 104 °F ± (2.5% + 50) @ 0.1 °F >104 … 752 °F ± (1.5% + 50) @ 0.1 °F >752 … 1832 °F ± 2.5% @ 0.1 °F |
| Automatic change of measuring ranges: |
- |
| hFE: |
- |
| Diode test: |
- |
| Continuity test signal: |
- |
| Checking the TTL status: |
- |
| RS-232: |
- |
| USB: |
- |
| Selected characteristics: |

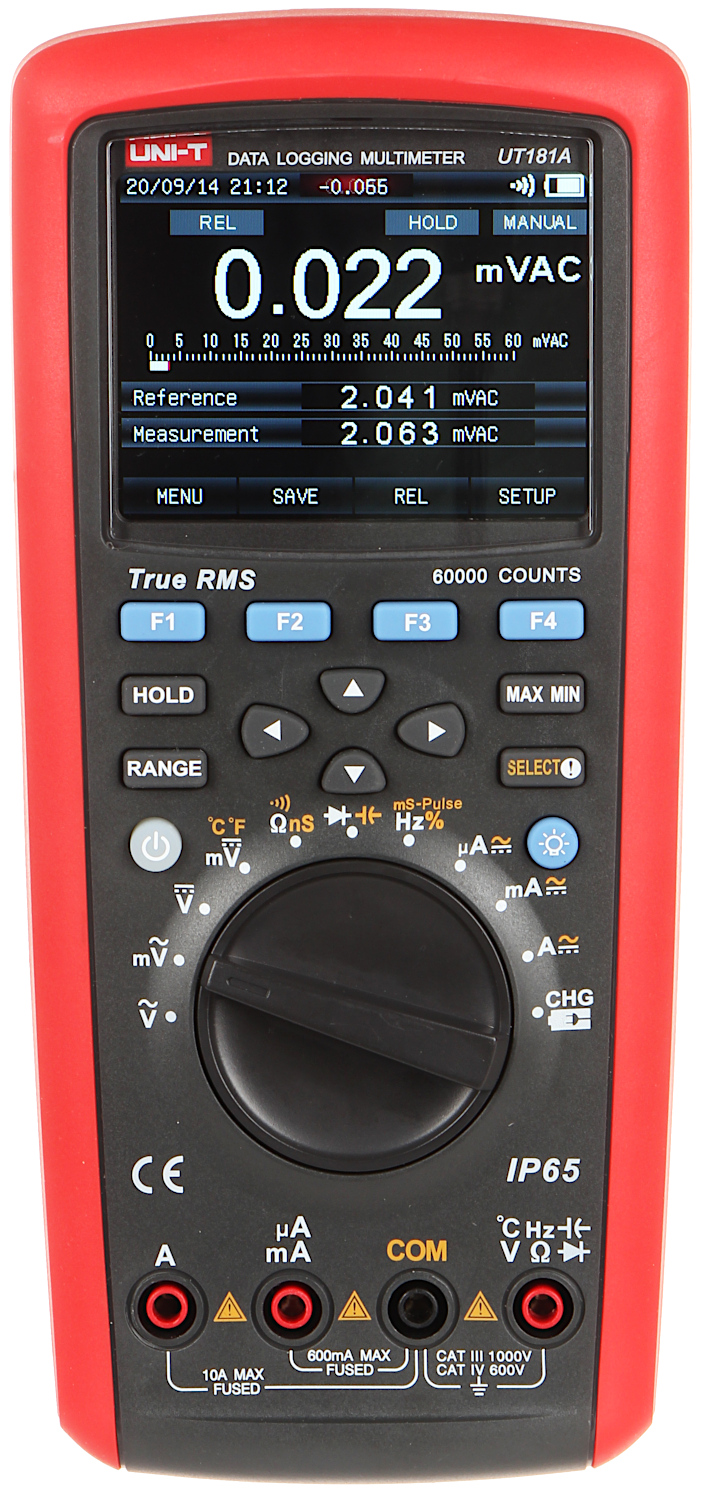

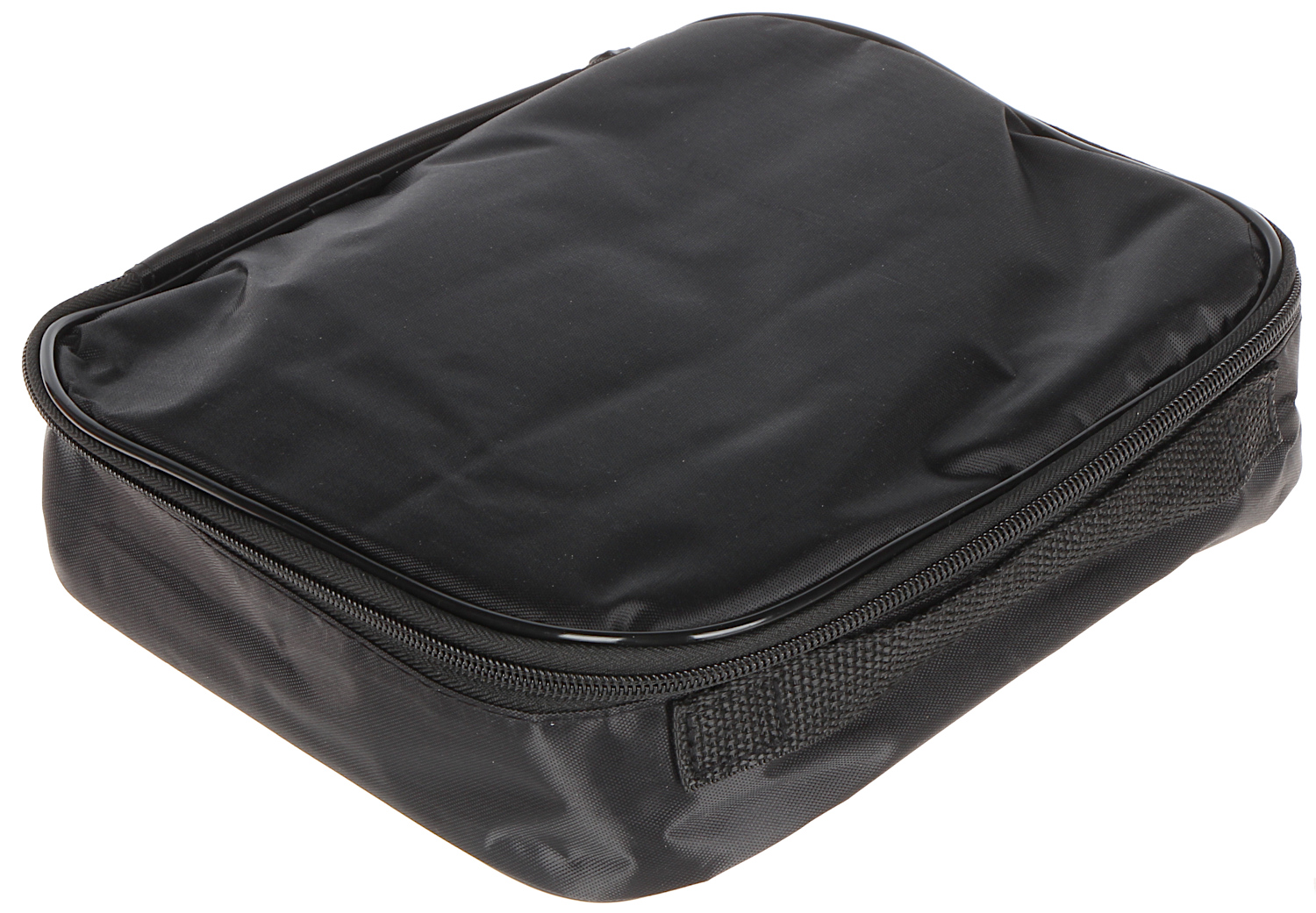

True RMS – strāvas un sprieguma precīzas vērtības mērījums jebkurai viļņa formai, Pēdējā lasījuma sasaldēšana, Augstākā vai zemākā mērījuma iesaldēšana, Writing the value peak, REL – relatīvā mērījuma režīms, Analogs barogrāfs, Iespēja saglabāt lasījumus, piekļūt saglabātajiem rezultātiem un nosūtīt tos uz datoru, izmantojot USB interfeisu, Liels, nolasāms LCD grafiskais displejs ar fona apgaismojumu, Iespēja uzzīmēt izmērītās vērtības izmaiņu grafiku laika gaitā, pamatojoties uz ierīcē saglabātajiem mērījumu datiem, Save to 20000 measurement results in the device memory, (dBV/dBm) sprieguma līmeņa mērījums, Zems akumulatora uzlādes līmenis, Estētisks izpildījums, Komplektā praktisks futrālis |
| Source of energy supply: |

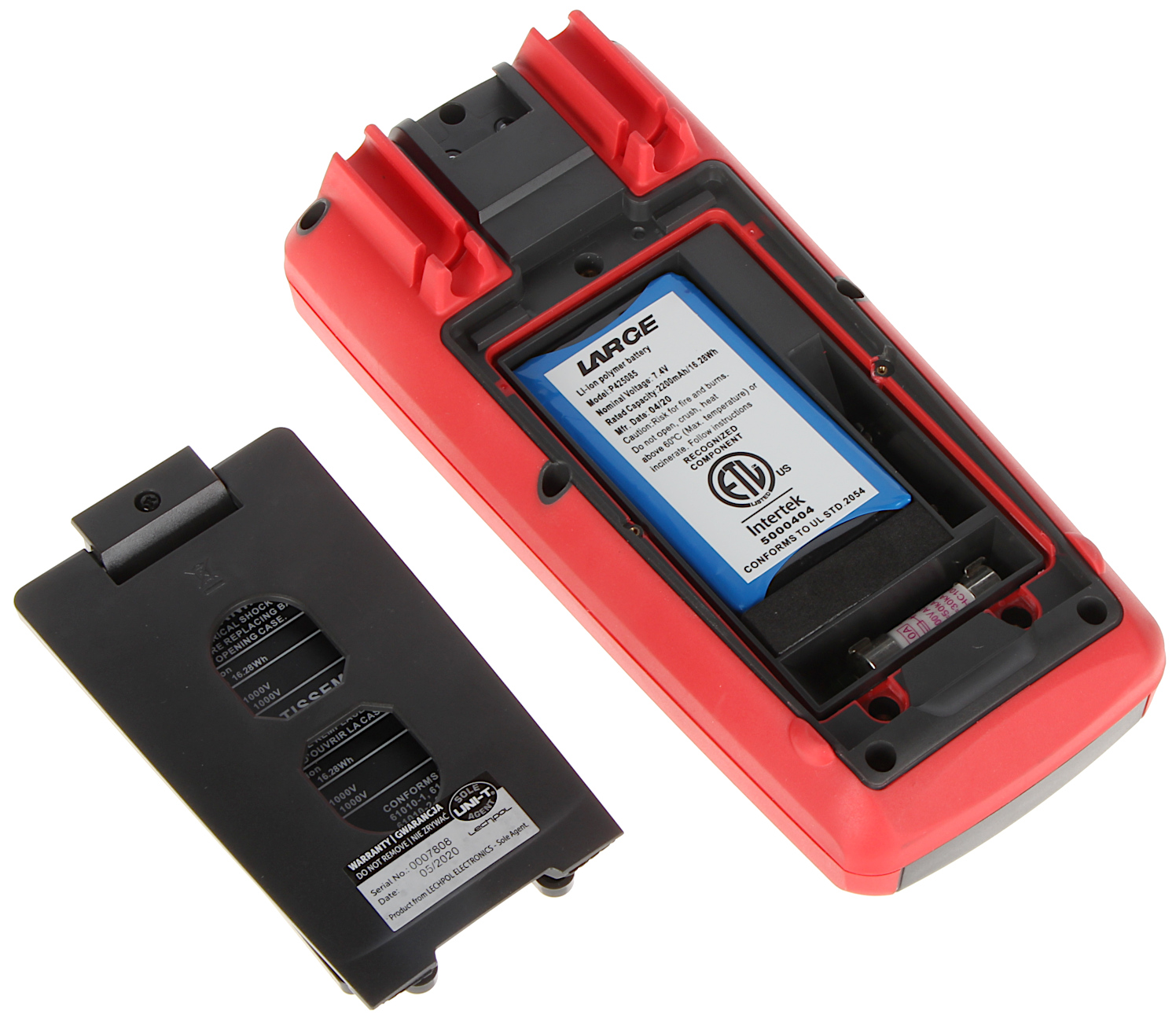

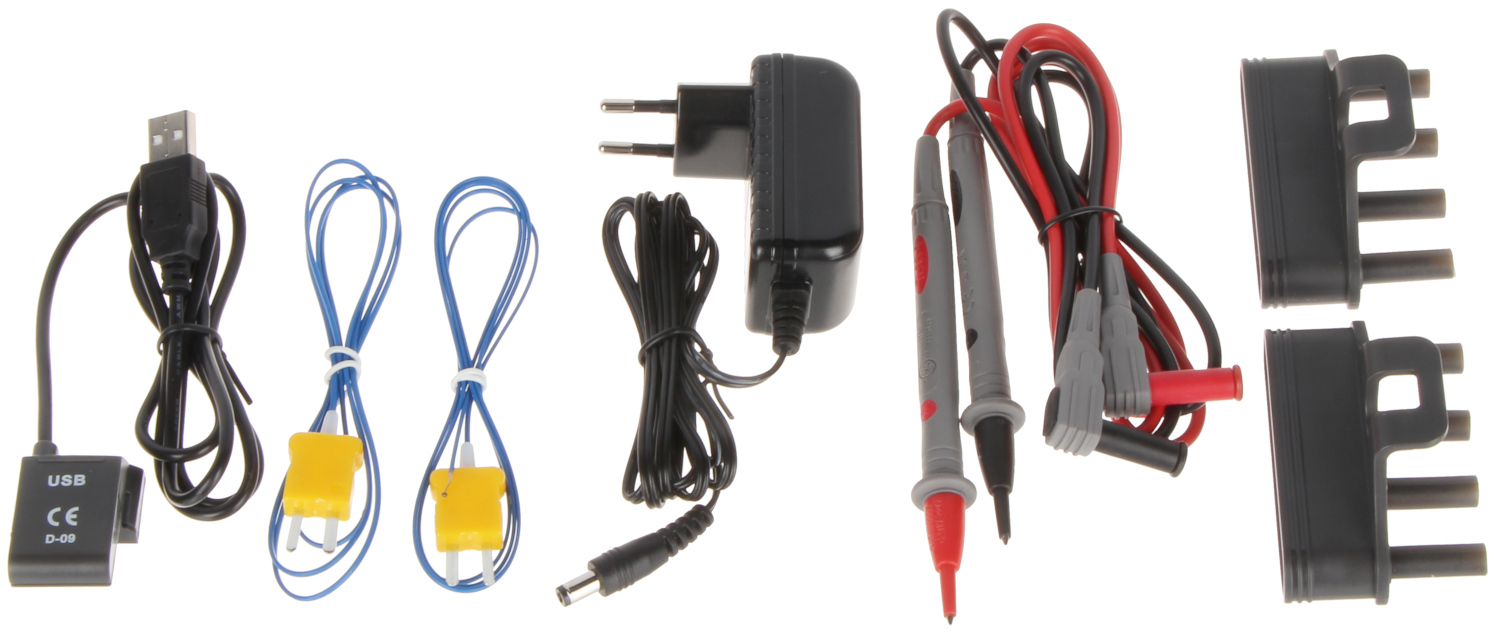

Built-in battery 7.4V / 2200mAh, the set includes a 10V / 500mA power supply and a power adapter for charging the battery |
| Weight: |
0.62 kg |
| Size: |
226 x 104 x 63 mm |

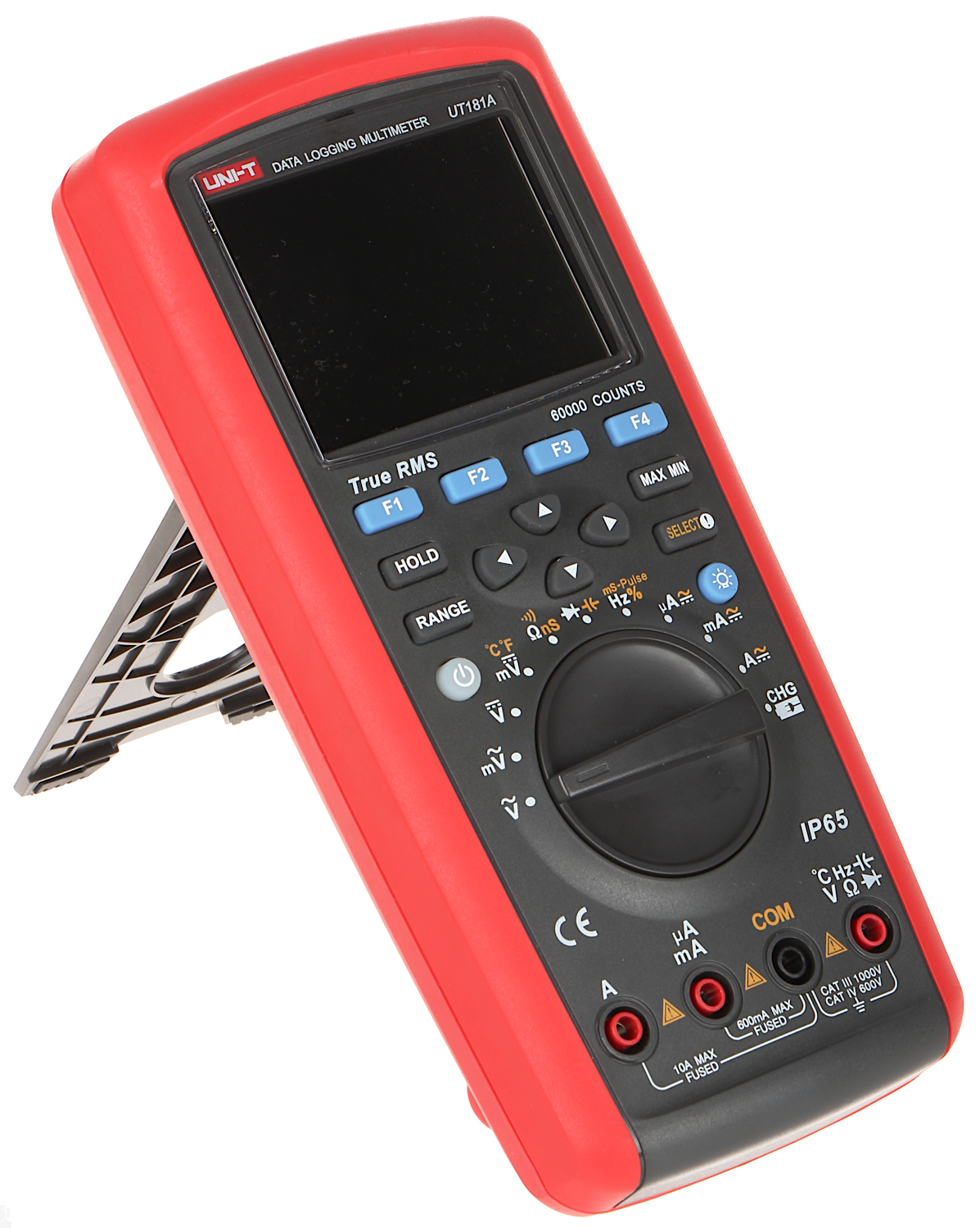

| Manufacturer / Brand: |
UNI-T |
| Warranty: |
2 years |
