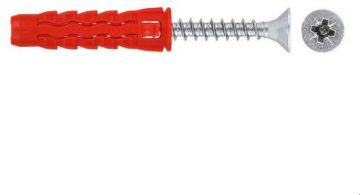

Universal hammock SFXP-06030050 Blister 12pcs.
Modern universal anchor for all substrates with countersunk screw with PZ2 socket<<
- Diameter [mm] 6
- MaterialPolyamide / steel

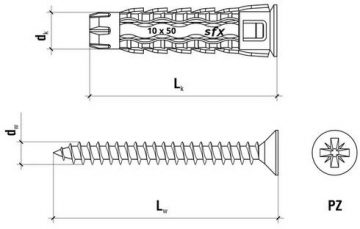

- Co-capital dimensions Lk x dk [mm] 6 x 30<
- Housing diameter dk [mm] 6
- Housing flange diameter Dk [mm] 8
- Housing length Lk [mm] 30
- Housing length Lk [mm] 30
- Core materialPolyamide
- Connection/screw/screw shank dimensions dw x Lw [mm] 4 x 50
- Screw/bolt/shank diameter dw [mm] 4
- Screw/bolt/shank length Lw [mm] 50
- .Screw/bolt/shank/nail materialSteel
- Coating thickness [µm] 5
- Screw/bolt head type Conical
- Head type/li>
- Screw/bolt/shank type PZ-2
- Screw/bolt/rod head diameter Dw [mm] 8<
- Durum diameter up to [mm] 6
- Mounting hole depth [mm] 40
- Max. Mounting thickness tfix max [mm] 15
Purpose
.Fixing of home equipment elements, fixing of cable routes and electrical installations, fixing of lighting elements in substrates such as concrete, aerated concrete, solid ceramic brick, ceramic brick, perforated brick, solid silicate brick, cement boards, plasterboard.
