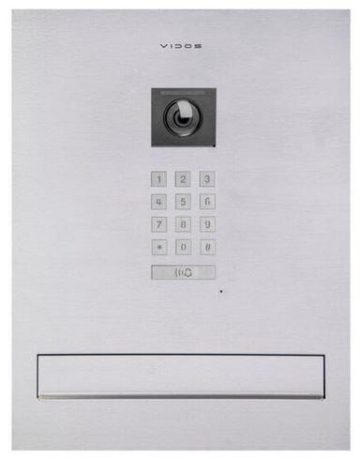

VIDOS 2IP S204-SKM mailbox
Vidos S204-SKM mailbox with video intercom – uncompromising security and style
Modern Vidos S204-SKM mailbox with video intercom combines two functions – mail collection and entrance monitoring – into one elegant stainless steel device. Ideal for single-family homes and small offices, it provides convenience, access control and protection in a stylish design.
Vidos 2IP – intelligent 2-wire IP video intercom system
In 2IP is a modern video intercom system based on IP technology and is distinguished by easy installation using only two wires. This makes device installation and configuration quick and intuitive – without the need for in-depth programming.
External stations are addressed using DIP switches, while the monitors are assigned building and apartment numbers. As a result, the entire system is ready to operate in just a few minutes.
Remote access from anywhere
As an IP-based system, In 2IP allows you to make calls not only locally, but also remotely – via the cloud. After proper configuration, you can receive video intercom calls, no matter where you are – all you need is internet access on your phone. This is the perfect solution for people who are often away from home and want to constantly control access to their property.
Compatibility with various installations
That,In 2IP stands out for its full functionality even on a standard two-wire cable, such as UTP or OMY. Unlike systems based solely on twisted pair cables, this solution can be implemented in almost any building – both in modern installations and in existing buildings.
Why choose Vidos 2IP?
- Quick installation using only 2 wires
- Remote control of the video intercom via mobile app
- Stable operation and reliable IP communication
- Compatibility with UTP and OMY cables
- Applications from single-family homes to large commercial investments
Technical data:
- Mailbox type – transparent with video intercom
- Number of slots – one
- Front panel and rear door material – polished stainless steel
- Drawer material – hot-dip galvanized steel
- Number of intercom or video intercom buttons – 1
- Type of door station used – S204
- Front panel dimensions – 285 x 350 mm
- Rear panel dimensions – 260 x 110 mm
- Drawer width – 250 mm
- Box depth adjustment – 260–410 mm
Technical data of the S204 door station:
- Operation for one or more tenants
- CMOS Full HD camera
- 125° wide lens viewing angle
- PIN code access support
- QR code access support (with M200-X monitor)
- Two-way “Duplex” audio
- Illuminated keyboard
- IR (infrared) night light
- Ability to control electric lock and automatic gate
- Low-current electric lock power supply DC 12V to 300mA
- One relay output
- Exit button support
- 2-wire non-polarized connection
- Adjusting the call volume
- Vandal-resistant stainless steel housing
- IP54 protection class
