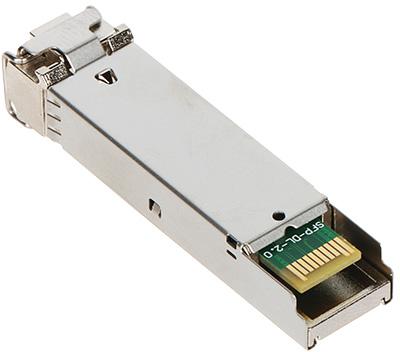

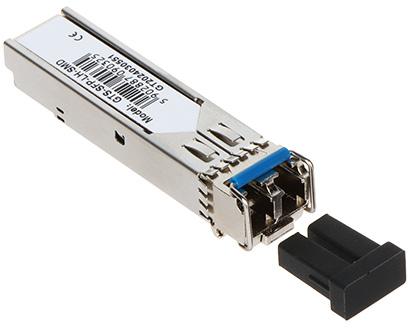

VIENREŽĪMA GTS-SFP-LH-SMD MODULIS
Modelis: GTS-SFP-LH-SMD
Technical specifications
| Transmisija protokoli: | IEEE 802.3z 1000Base-FX |
| Šķiedras tips: | 8,3/125 µm, 8,7/125 µm, 9/125 µm, 10/125 µm – Vienmoda šķiedra |
| Maksimālais pārraides diapazons: | 20 km |
| Transmission: | 1,25 Gb/s / 1,063 Gb/s |
| Number of fibers required: | 2 |
| 2 x LC / PC | |
| FP lāzers / 1310 nm | |
| Transmitter power: | -9 … -3 dB |
| Receiver sensitivity: | ≥ -23 dB |
| Power supply: | 3,3 V līdzstrāva |
| Operating temperature: | 0 °C … 70 °C |
| Weight: | 0,017 kg |
