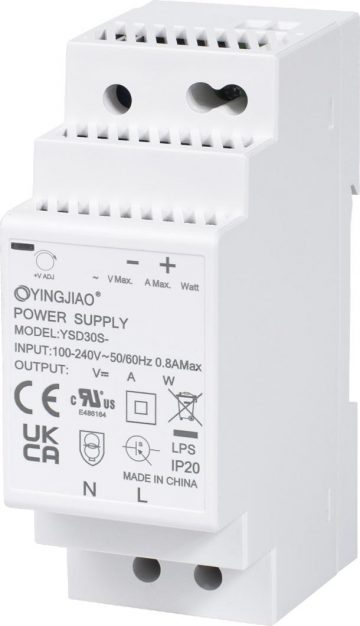

DIN rail power supply YINGJIAO YSD30S-2401250 24V/30W/1.25A
YINGJIAO YSD30S-2401250 DIN SLIDE SWITCHING POWER SUPPLY 24V/30W/1.25A — MAIN FEATURES:
YSD-S is a 2-volt plastic and 2-volt plastic power supply housing with features such as DC voltage regulation using a potentiometer and Class II insulation. The power supplies have a built-in set of protection circuits against short circuit, overload, over temperature and abnormal voltage levels. They provide high MTBF and a high degree of safety. They comply with international standards. They are designed for a wide range of applications in industrial automation systems and control systems.
- Input voltage range: 90-264VAC
- mains supply voltage frequency range: 50-60 m
- nominal output voltage: 24 V
- output voltage trimmer adjustment: 21.5-26.5 V
- rated output power: 30 W
- rated load current: 1.25 A
- Max. Output voltage ripple: 150 mVp-p
- Energy conversion efficiency: above 89 %
- Operating temperature range: -20ºC to +70ºC
- Output protection: overcurrent (OCP), short circuit (SCP), overvoltage (OVP)
- Input protection (UVP) s: overvoltage:9 0x58 mm
- Weight: 120 g
- Housing: IP20
lazy” />
Additional information
| Svars | 0,1200 kg |
|---|
