Name: GRAPHIC KEYPAD FOR SIGNAL CONTROL PANEL INT-TSH210-B SATEL
SKU: INT-TSH210-B
Availability: InStock

GRAPHIC KEYPAD FOR SIGNAL CONTROL PANEL INT-TSH210-B SATEL

Preces kods: INT-TSH210-B

EAN: 5905033339101

Piegādes laiks: 23-30 Decembrī

Estimated Delivery Dates

338,46 €

Availability: 4

A large, easy-to-read LCD display shows detailed information about the system status; the MACRO function helps you perform a set of actions with the press of a single button; Support: INTEGRA, INTEGRA Plus, VERSA, PERFECTA 64 M </span>;>Selected features: 10 " capacitive touchscreen 1024 x 600 px </span>;>Colour: Black </span>; <table>

Support:
INTEGRA, INTEGRA Plus, VERSA, PERFECTA 64 M
Selected functions:

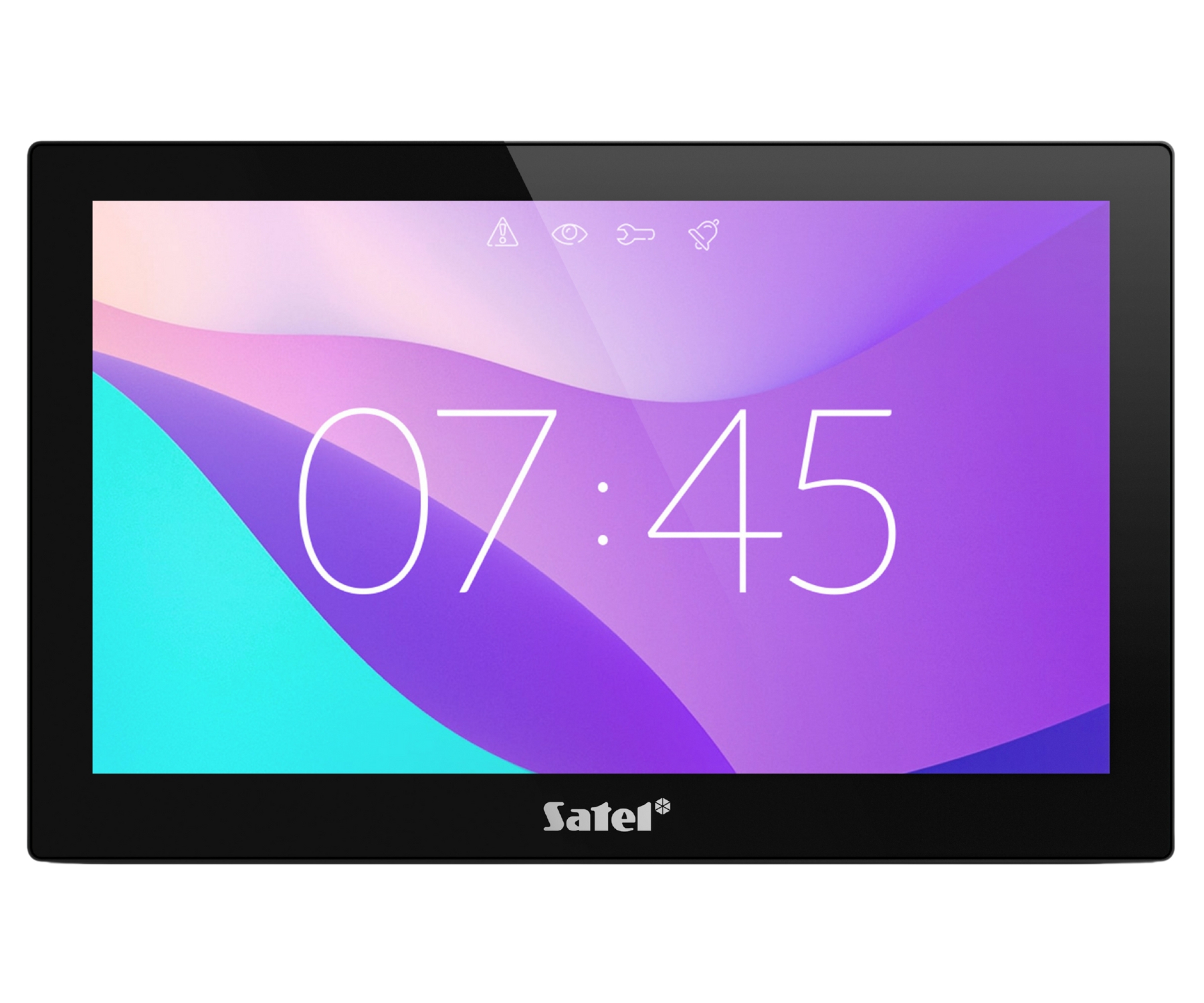

Large, easy-to-read LCD display shows detailed information about system status

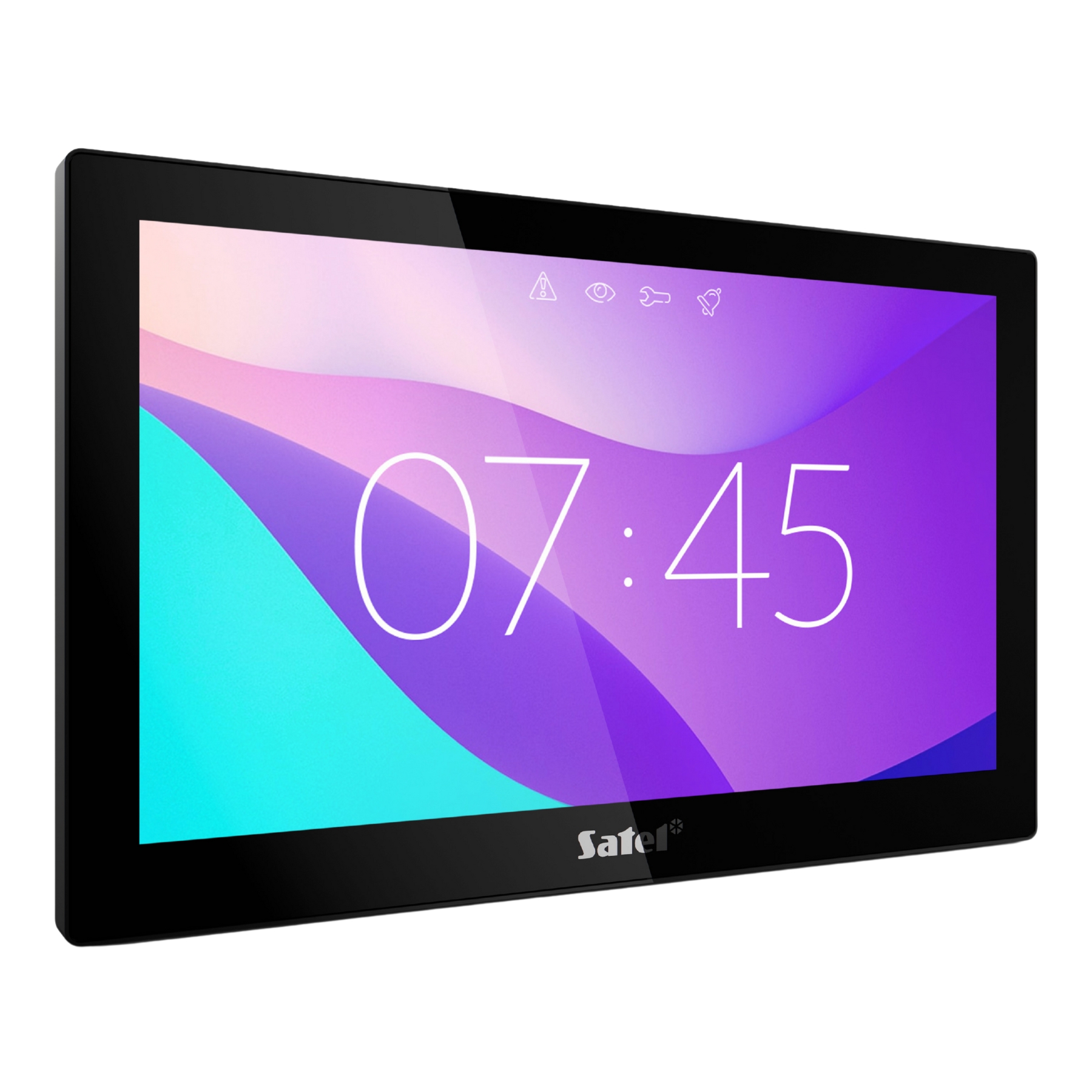

10 " capacitive touchscreen 1024 x 600 px

Swipe gesture support

Transparent graphical interface

Over 20 preset graphic themes allowing the user to create their own composition

Possibility to display visualization of the protected facility

Keyboard operation status indicator

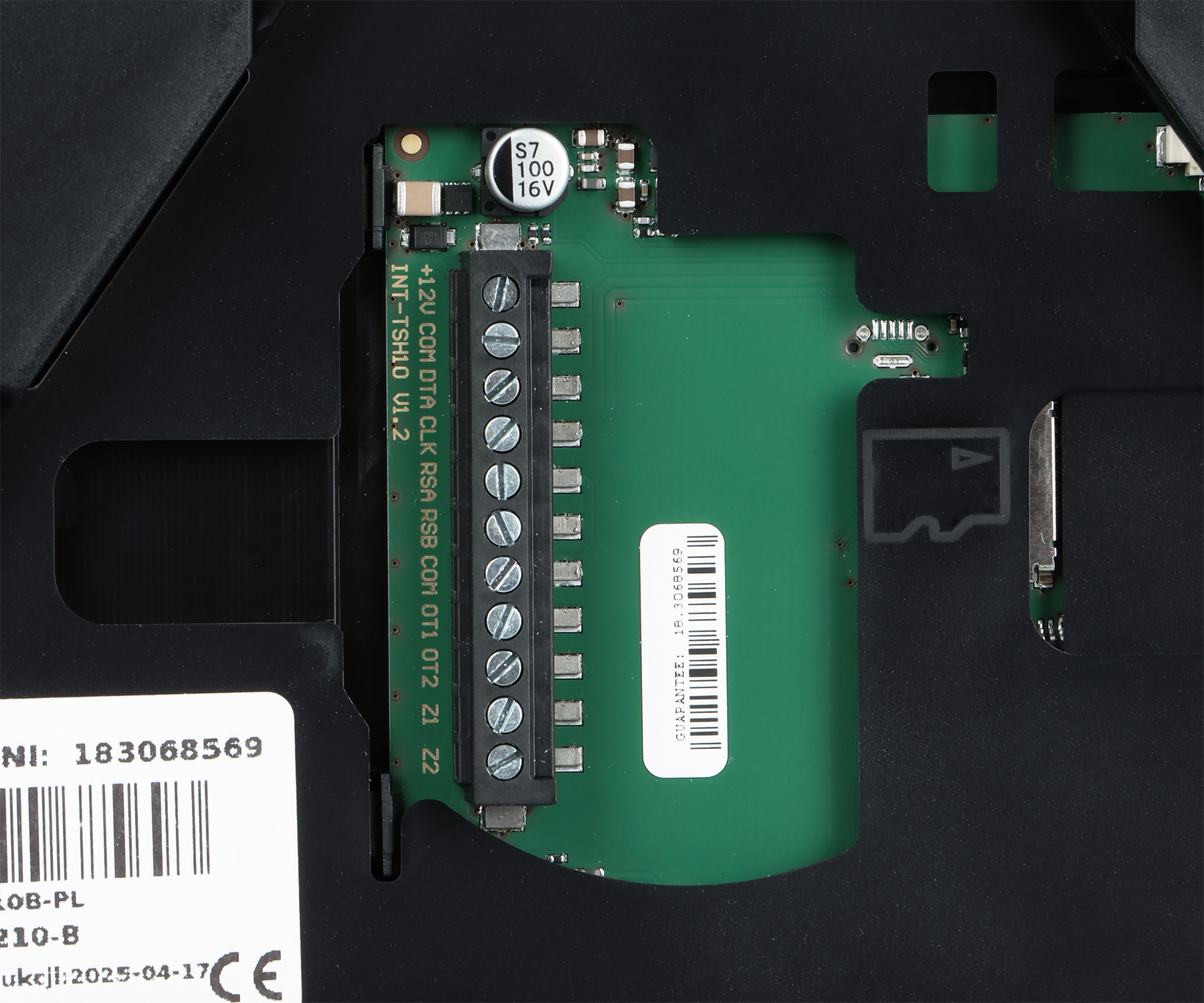

2 Inputs – only INTEGRA, INTEGRA Plus:

Support for NO, NC type detectors
Vibration and roll-up detector support
Compatible with EOL, 2EOL, 3EOL configurations

The MACRO function helps you perform a set of actions with a single keystroke

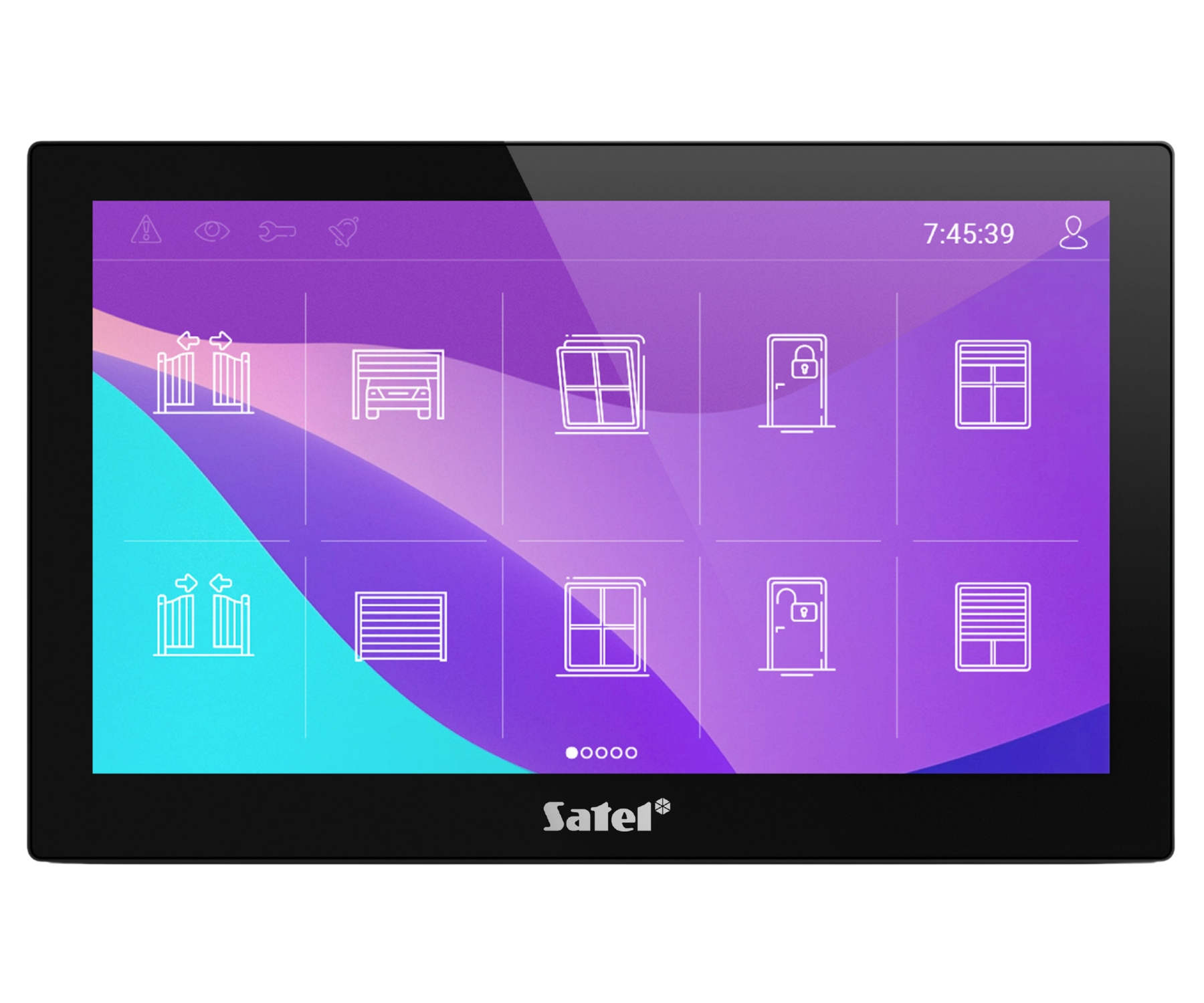

Configurable user screens max. 24

convenient multi-zone system control

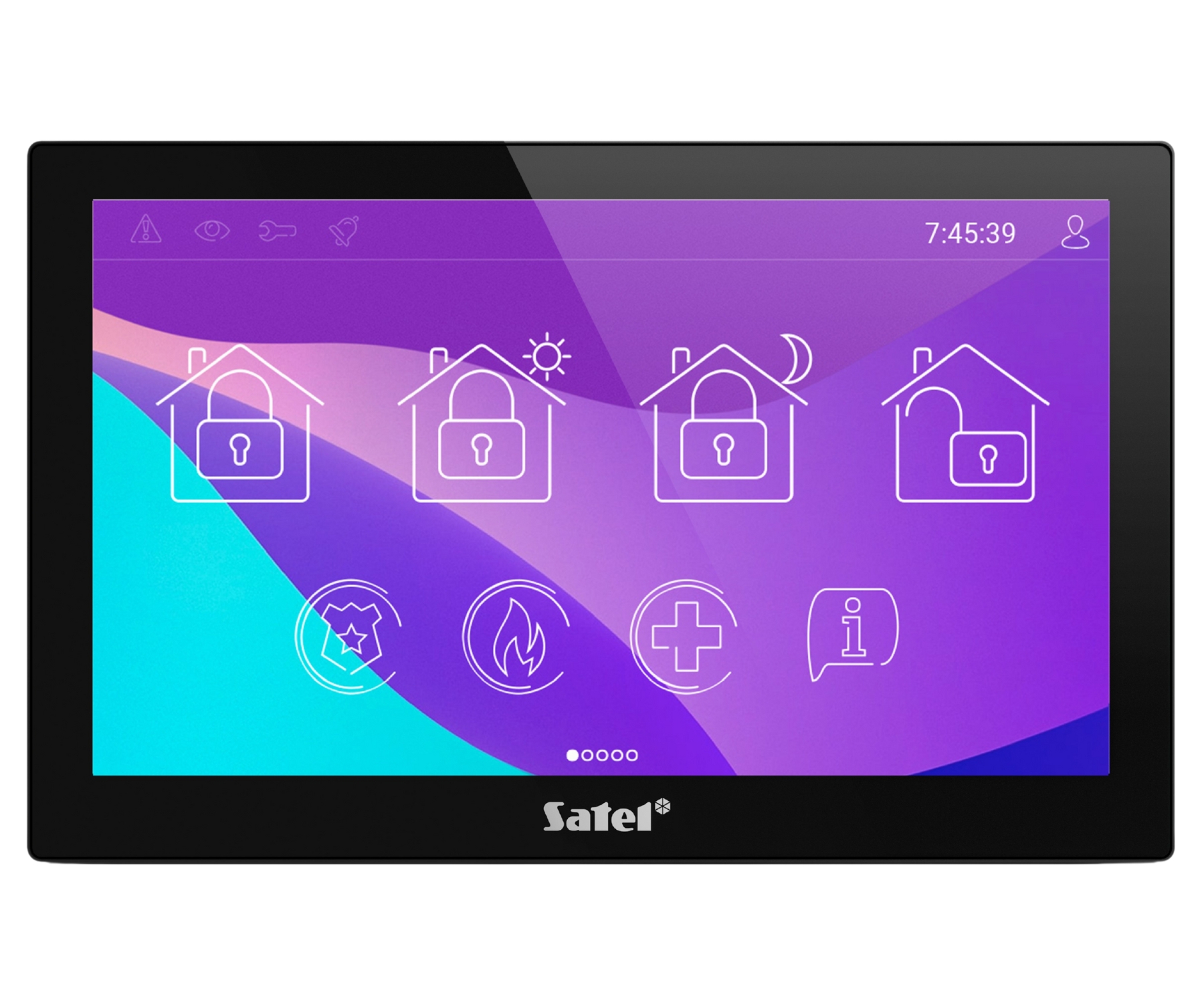

Alarms: ATTACK, FIRE, HELP call from the keypad

Audible alarms for selected system events

Compatibility with the KNX system is possible by connecting an INTEGRA series alarm control panel

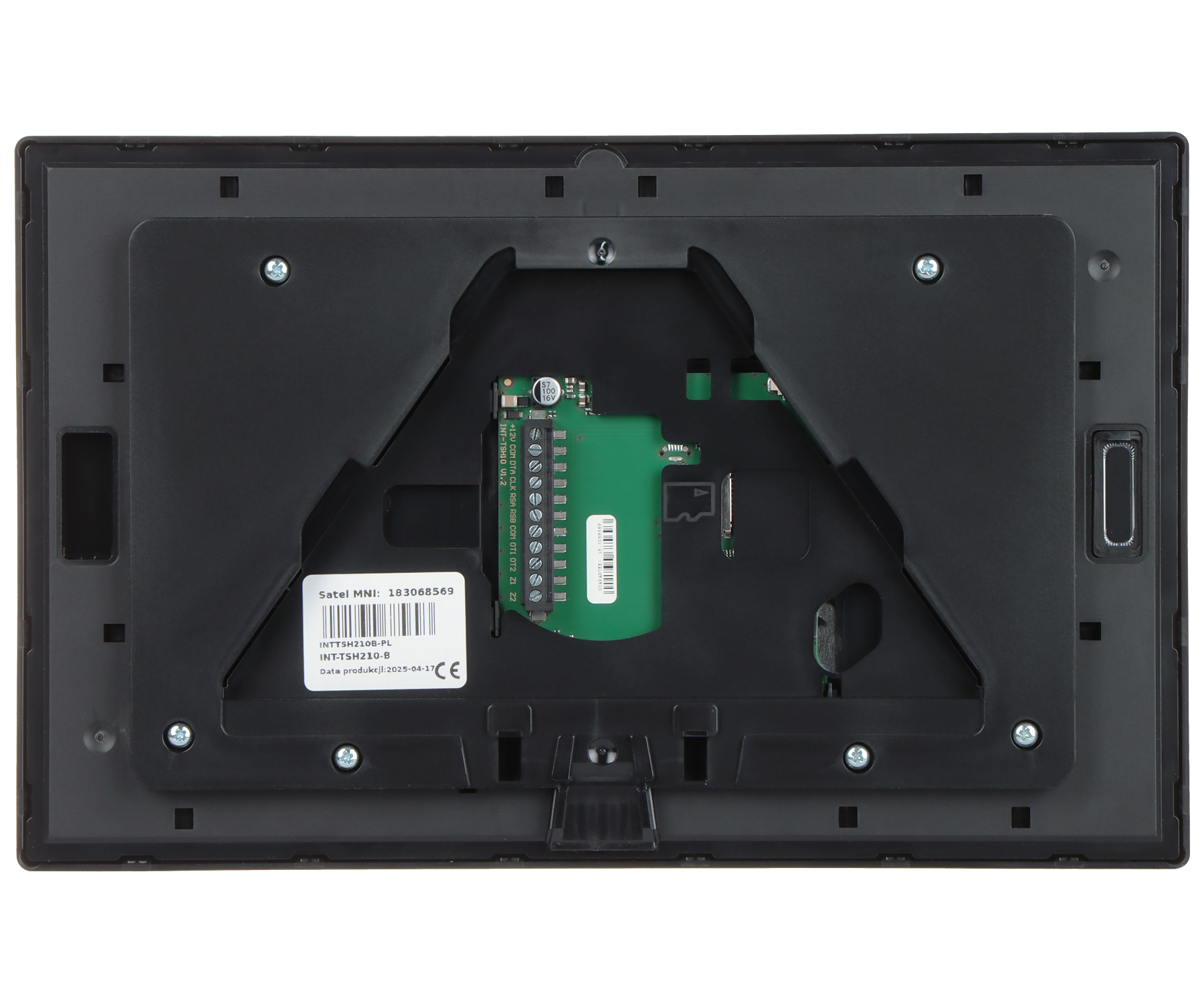

Tamper detection – opening the case, detaching it from the base

Memory card slot – microSD

Screensaver with calendar, clock or picture frame function

Day/night mode

Environmental class EN 50130-5: II

Source of energy supply:
12 V DC
Current consumption:
max. 415 mA

Colour:
Black
Operating temperature:
-10°C … 55°C

Weight:
0.58 kg
Size:
251 x 157 x 18 mm

Manufacturer / Brand:
SATEL
WARRANTY:
2 years

Additional information

Svars	0,7620 kg
Dimensions	305 × 165 × 30 cm
