Name: FIBER OPTIC WELDER AI-30 Signal Fire
SKU: AI-30
Availability: OutOfStock

FIBER OPTIC WELDER AI-30 Signal Fire

Product code: AI-30

EAN: 5902887095146

Piegādes laiks: 23-30 Decembrī

Estimated Delivery Dates

1380,69 €

Availability: 0

Optical fiber type: single mode (SM) – G.652, G.657, multimode (MM) – G.651, DS/NZDS ;>Knife for cutting fibers: built-in automatic fiber cleaver with high precision fiber cutting ;>Visual fiber optic fault locator (VFL): 650 nm ;>Optical Power Meter (OPM): Measurement range: -50 … +30 dBm ;>Display: 5" TFT LCD ;>MENU access: Bluetooth 4.2, Signalfire2 app ;>Source of energy supply: 13.5V DC ; <table>

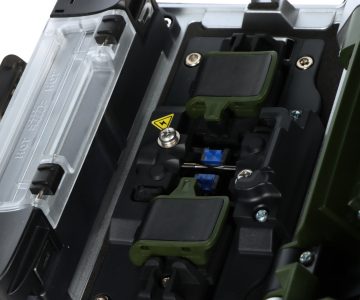

Fiber alignment method:

6 engine

accuracy of fiber alignment: 0.05 µm
Fiber positioning:
centering to the core

Splicing time:
6 seconds
Splice protector sleeve heating time:
15 s – possibility of your own settings

Optical fiber type:

single mode (SM) – G.652, G.657,

multimode (MM) – G.651,

DS/NZDS
Shell diameter:
80 … 150 µm

Average weld loss:

0.02 dB (SM)

0.01 dB (MM)

0.04 dB (DS/NZDS)
Splicing mode:
automatic, semi-automatic, manual

Knife for cutting fibers:
built-in automatic fiber cleaver with high precision fiber cutting
Visual fiber optic fault locator (VFL):

Power : 15mW

650 nm

steady on mode, flashing mode 2 Hz

Optical Power Meter (OPM):

Optical wavelength : 850 nm, 1300 nm, 1310 nm, 1490 nm, 1550 nm, 1625 nm, 980 nm, 1270 nm, 1577 nm, 1650 nm

Measurement range: -50 … +30 dBm
Image zoom:

320 x in the X and Y axes – single view

200 x in the X and Y axes – double view

Supported splice protector sleeve lengths:
25 … 60 mm
Mechanical strength test:
2 N

Display:
5" TFT LCD
MENU access:
Bluetooth 4.2, Signalfire2 app

Selected characteristics:

Quick start of the fusion splicer: 1 s

Case: Water resistant, Dustproof, Fall proof

Built-in automatic fiber cleaver

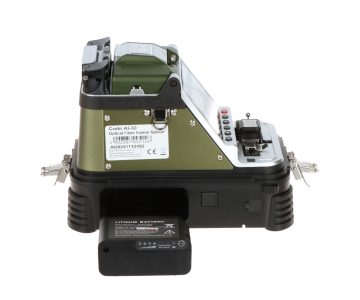

Battery:

capacity: 7800 mAh

~ 240 splicing cycles

Typical battery charging time ~ 3.5 h

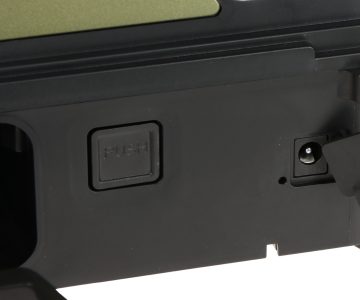

Source of energy supply:
13.5V DC / 4.8 A (power adapter included)
Conditions for correct operation:

Temperature: -15 °C … +50 °C

relative humidity : < 95 % (non-condensing)

Wind speed: max. 15 m/s

Altitude: 0 … 5000 m

Language selection:
Polish, English, Arabic, Chinese, French, Spanish, Portuguese, Russian, Italian
Weight:

3.06 kg – welding machine

4.38 kg – Protective cap + welding machine

Size:
