Technical Specification:

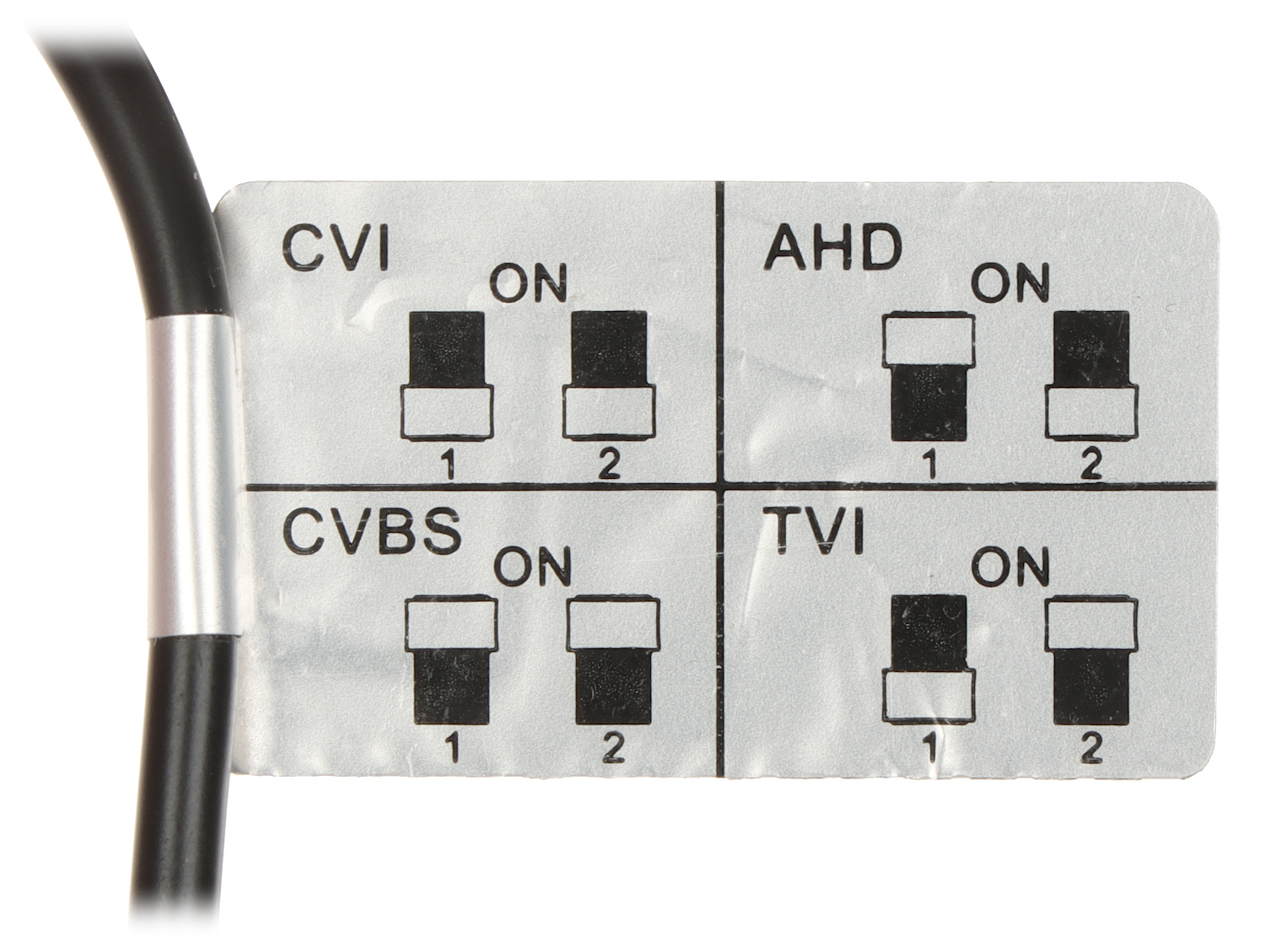

| Standard: | AHD, HD-CVI, HD-TVI, CVBS |
| Sensors: | 1/2.7” Progressive Scan CMOS |
| Matrix size: | 2.1 Mpx |
| Resolution: | 1920 x 1080 – 1080p , 1280 x 720 – 720p , 960 x 576 – 960H , PAL |
| Lens: | 2.7 … 12 mm – Motozoom – Kamera nav aprīkota ar autofokusa funkciju |
| Viewing angle: | 102 ° … 33 ° (ražotāja dati) 96 ° … 34 ° (mūsu pārbaudes) |
| Infrared illumination detection area: | 60 m |
| Compatible with IR illuminator: | ICR – Infrared mechanical filter |
| IR illuminator power adjustment: | Automatic |
| Video output: | AHD / HD-CVI / HD-TVI / CVBS – 1 Vpp / 75 Ω |
| Signal to noise ratio (S/N): | > 65 dB |
| Audio: | Built-in microphone – HD-CVI only |
| Selected features: | Motozoom objektīvs D-WDR – Plašs apgaismojuma dinamikas diapazons 2D-DNR – Digitāla trokšņa redukcija F-DNR (Defog) – Ar atmosfēras nokrišņiem saistīto trokšņu redukcija Dienas/nakts režīms ICR – infrasarkano staru mehāniskais filtrs BLC/HLC – fona / spēcīgas gaismas kompensācija Automātisks baltā balanss AGC – Automātiska attēla pastiprinājuma regulēšana Mirror – spoguļattēls Sharpness – Attēla kontūru asums Privātuma zonas – maks. 8 |
| OSD screen menu: | OSD menu available via video recorders |
| Source of energy supply: | 12 V DC / 690 mA |
| Power consumption: | ≤ 8.2 W |
| Housing: | Dome, Alumīnijs |
| Colour: | Dark graphite |
| Anti-vandalism: | – |
| Protection class: | IP67 |
| Operating temperature: | -30°C … 60°C |
| Weight: | 0.6 kg |

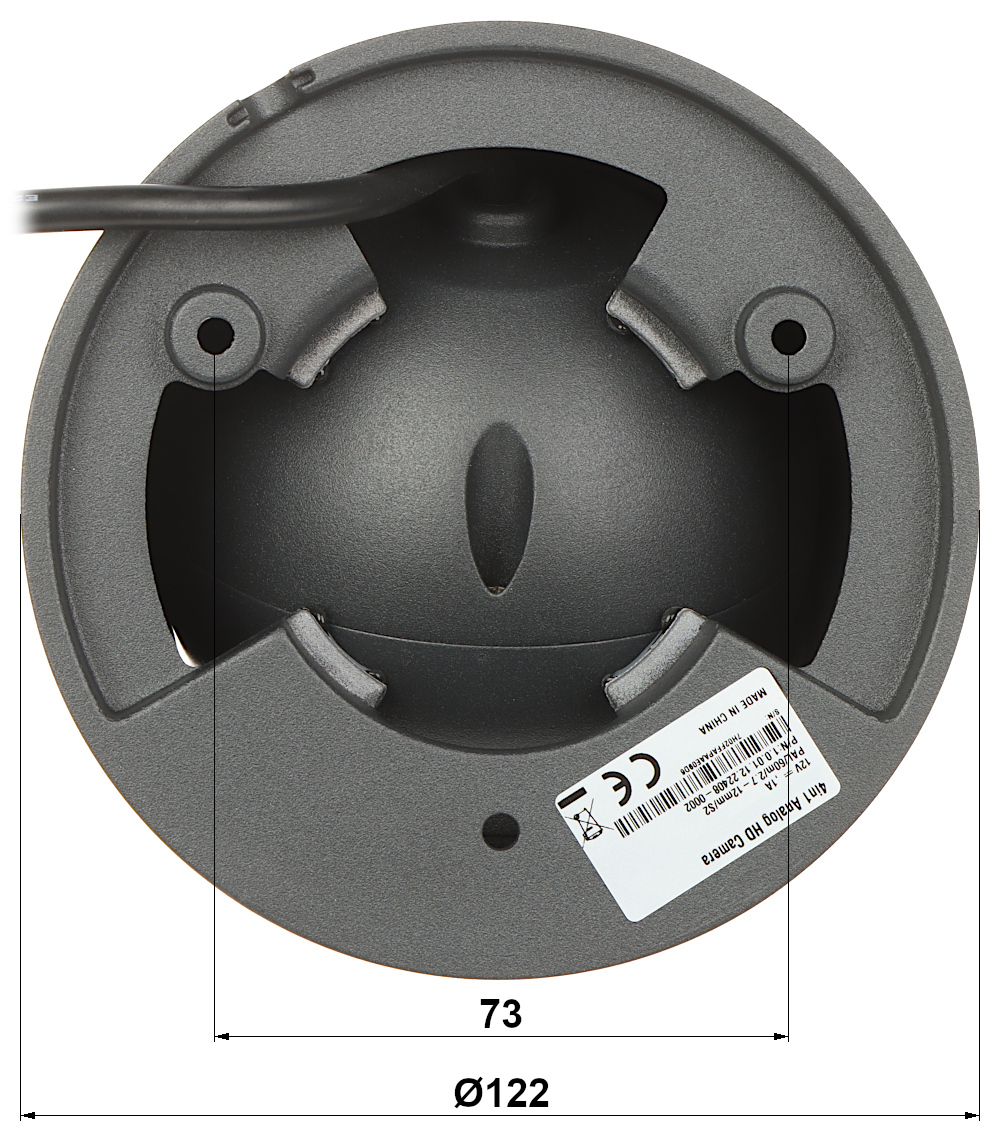

| Size: | Ø 122 x 105 mm |
| Manufacturer / Brand: | BCS Line |
| Warranty: | 3 years |
