Technical Specification:

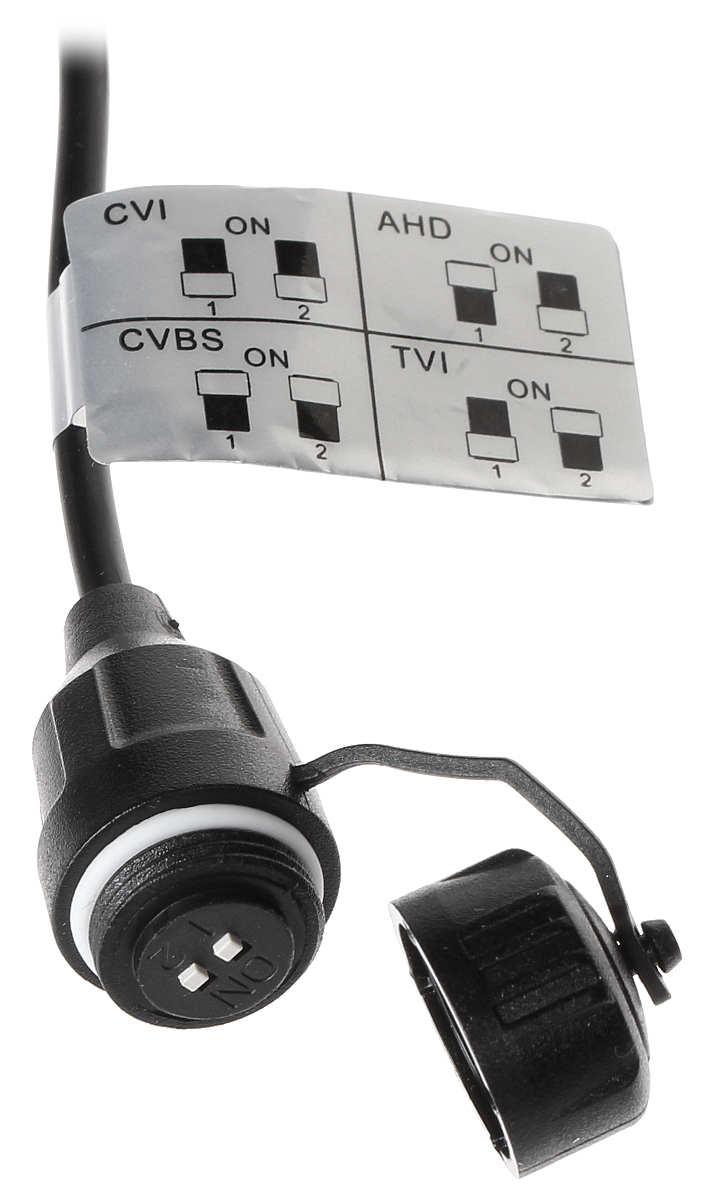

| Standard: | AHD, HD-CVI, HD-TVI, CVBS |
| Sensors: | 1/2.7” Progressive Scan CMOS |
| Matrix size: | 5 Mpx |
| Resolution: | 2880 x 1620 – 5 Mpx @ HD-CVI – 25 fps: Aspect Ratio 16:9, 2560 x 1440 – 4 Mpx @ AHD / HD-CVI / HD-TVI – 25 fps 1920 x 1080 – 1080p @ HD-CVI – 25 fps 960 x 576 – 960H @ PAL |
| Lens: | 2.7 … 12 mm – Motozoom |
| Viewing angle: | 107 ° … 34 ° (manufacturer data) 102 ° … 35 ° @ HD-CVI (our tests) 90 ° … 31 ° @ AHD / HD-CVI (our tests) |
| Infrared illumination detection area: | 60 m |
| IR illuminator power adjustment: | Automatic |
| Video output: | AHD / HD-CVI / HD-TVI / CVBS , 1 Vpp / 75 Ω |
| Audio: | – |
| OSD screen menu: | – |
| Selected features: | Motozoom lens – The camera is not equipped with an autofocus function D-WDR – Wide dynamic range of lighting 2D-DNR – Digital noise reduction BLC – Backlight compensation HLC – High light compensation (spot) AGC – Automatic image gain control ICR – Infrared mechanical filter Privacy zones – max. 8 Mirror – mirror image Automatic white balance Sharpness – Sharpness of image contours |
| Source of energy supply: | 12V DC / 820mA |
| Power consumption: | ≤ 9.8W |
| Housing: | Compact, Metal |
| Colour: | Dark graphite |
| Protection class: | IP66 |
| Operating temperature: | -20°C … 60°C |
| Weight: | 0.58 kg |
| Size: | 210 x 90 x 90 mm |
| Manufacturer / Brand: | BCS |
| Warranty: | 3 years |
