Technical Specification:
| Adapter type: | Impulse |
| Output voltage: | 12 … 15 V DC |
| Setting the output current: | With potentiometer |
| Output current (total): | 5 A |
| Maximum single output current: | 1 A |

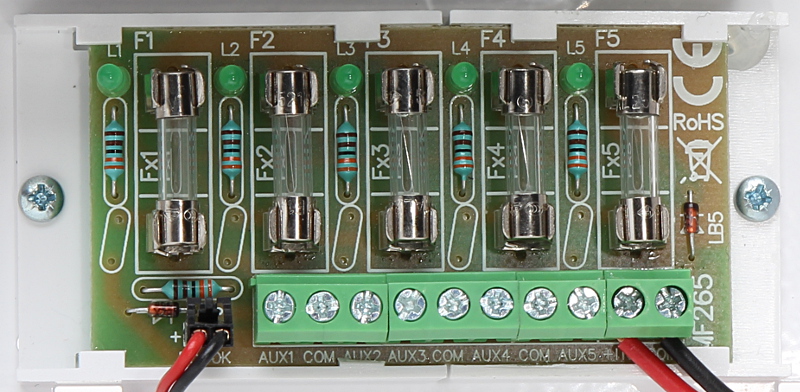

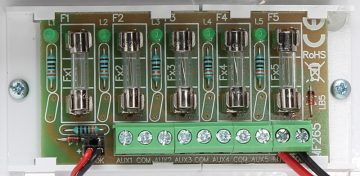

| Output protection: | 1 A Fuse |
| LED indication: | – |
| Protection: | Short circuit Overload Overvoltage |
| Input voltage: | 85…264V @ 50Hz |
| Power: | 60W (max) |
| Number of outputs: | 5 |
| Connector type: | Cable terminals |

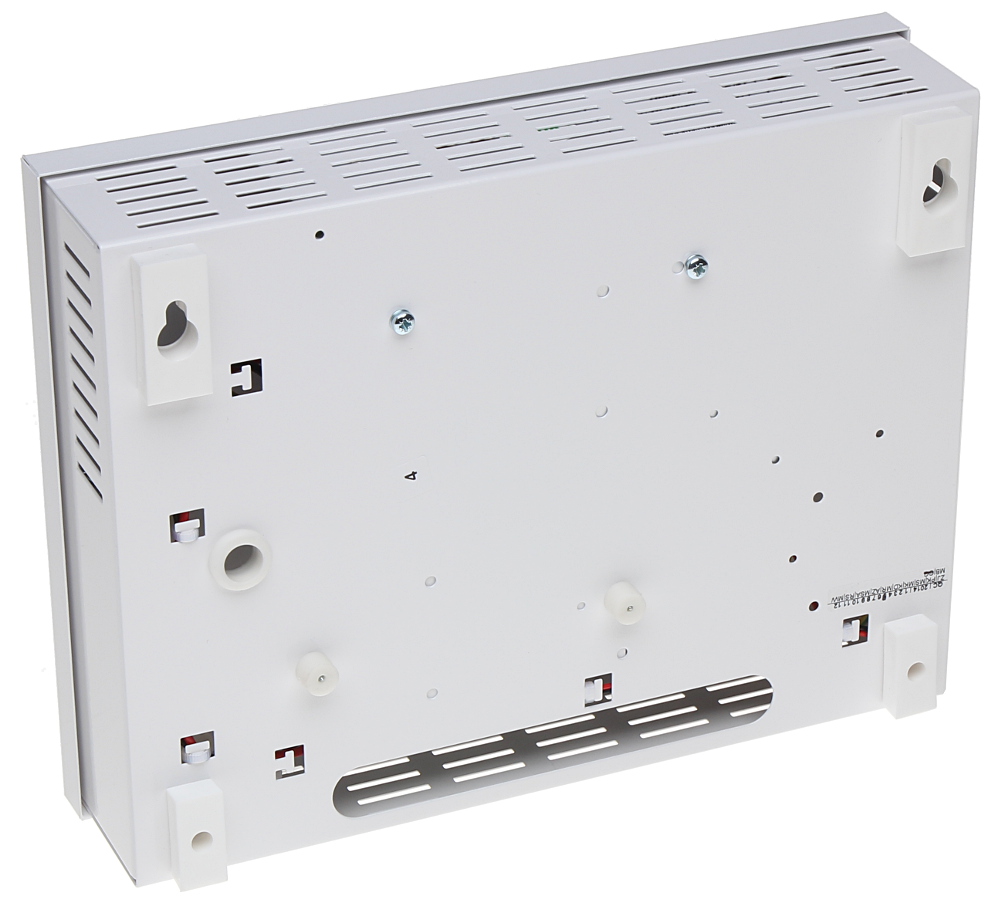

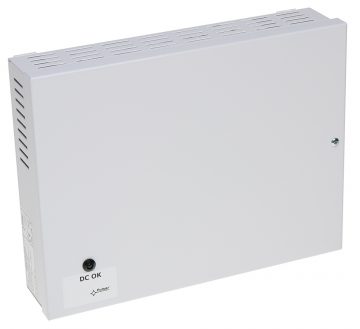

| Body type: | Metal, for wall mounting |
| Lockable with key: | – |
| Operating temperature/relative humidity: | -10 … 50 °C / 20 … 90 % |
| Weight: | 1.3 kg |

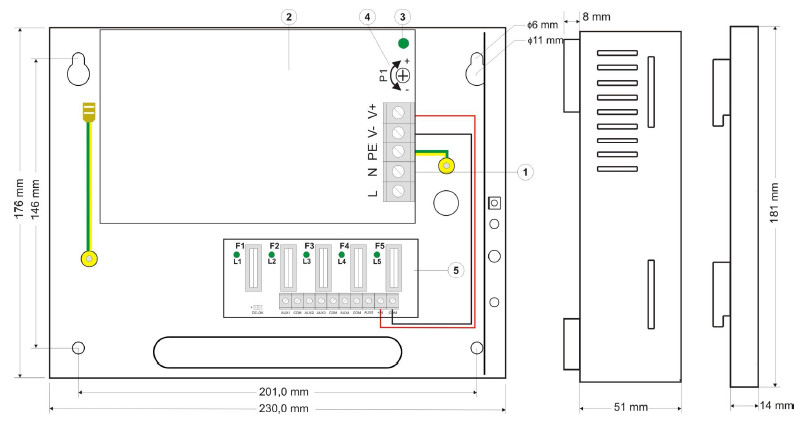

| Size: | 230 x 176 x 59 mm |
| Manufacturer / Brand: | PULSAR |
| Warranty: | 2 years |
