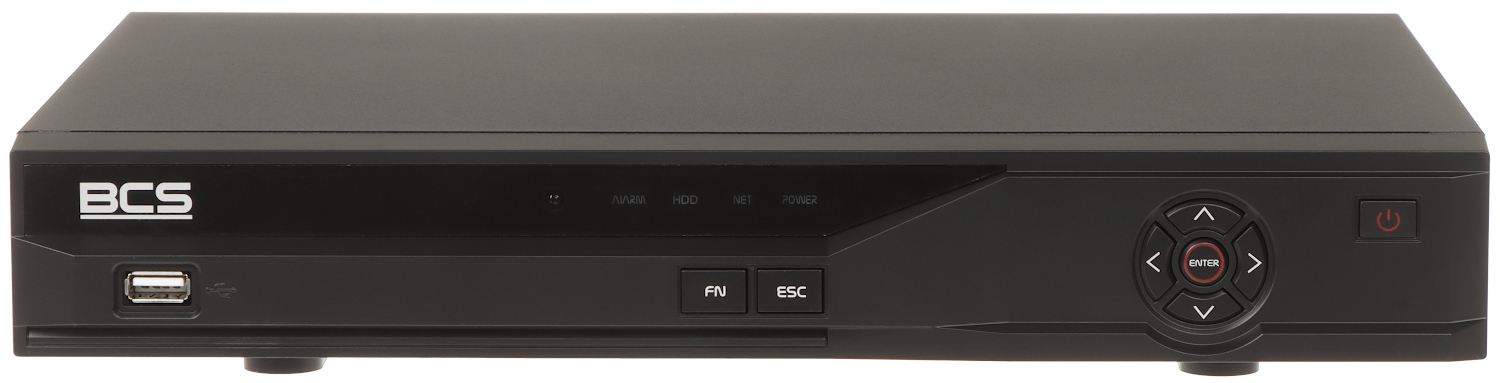

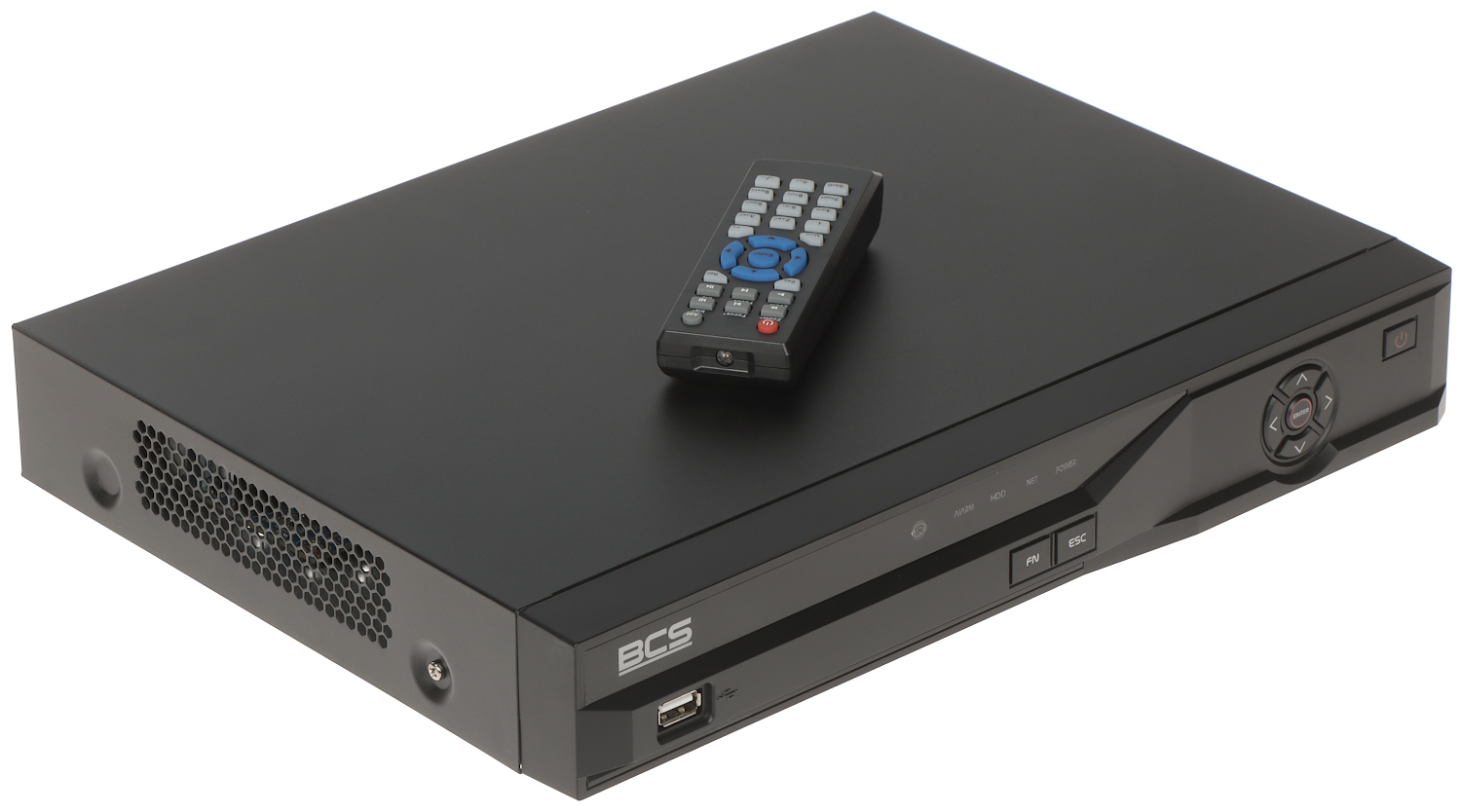

BCS Line AHD, HD-CVI, HD-TVI, CVBS, TCP/IP Tīkla Video Ierakstītājs Videoreģistrators BCS-L-XVR1601-4KE-IV 16 KANĀLI BCS Line

Audio input: 1 pc. CINCH </span>;>Image compression method: AI Coding / H.265+ </span>;>Recorded image resolution: AHD / HD-CVI / HD-TVI : 8 Mpx, IP : max. 8 Mpx </span>;>Supported hard drives: 1 x 16 TB SATA </span>;>Selected features: SMD PLUS – objekta meklēšana, kas klasificēts kā: cilvēks, mehānisks transportlīdzeklis, Inteliģenta attēla analīze, veido detekcija </span>; <table>

Standard:
AHD, HD-CVI, HD-TVI, CVBS, TCP/IP

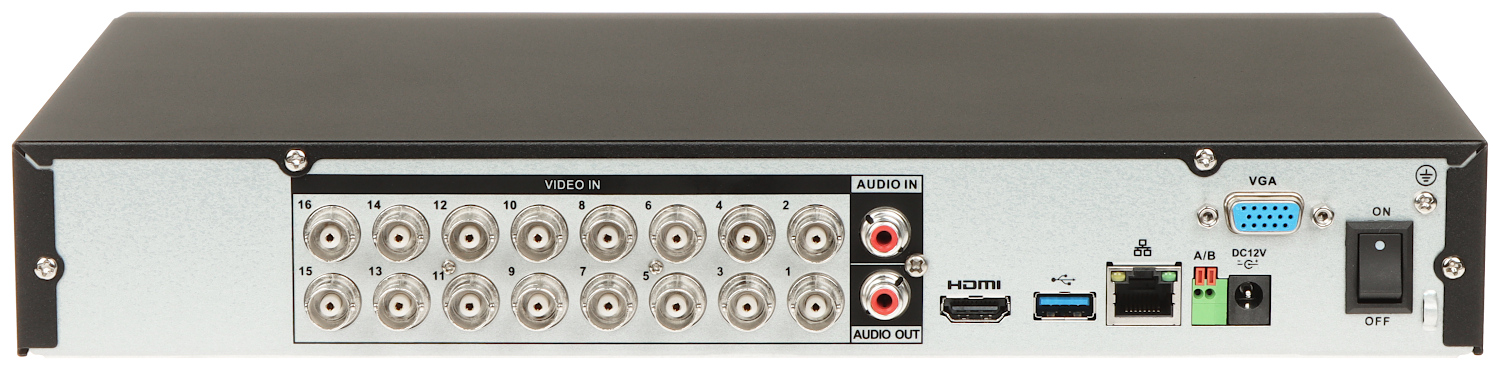

Video inputs:
16 pcs. BNC

Video outputs:
1 pc HDMI 4K
1 piece VGA
Audio input:
1 piece CINCH
16 Kanāli – Audio atskaņošana, izmantojot koaksiālo kabeli, tikai HD-CVI

Audio output:
1 piece CINCH
Image compression method:
AI Coding / H.265+ / H.265 / H.264+ / H.264

Recorded image resolution:

iOS (iPhone): Free app BCS Manager

Alarm inputs/outputs:

PTZ head rotation control:
IP Speed Dome cameras
Control compatible with coax PTZ HD-CVI
RS-485 - PELCO-D/P

Motion detection:
Screen division: 22 x 18 motion zones
Selected functions:

Intelligent image analysis: crossing the line, burglary – classification of persons and vehicles, detection

Mouse crew:

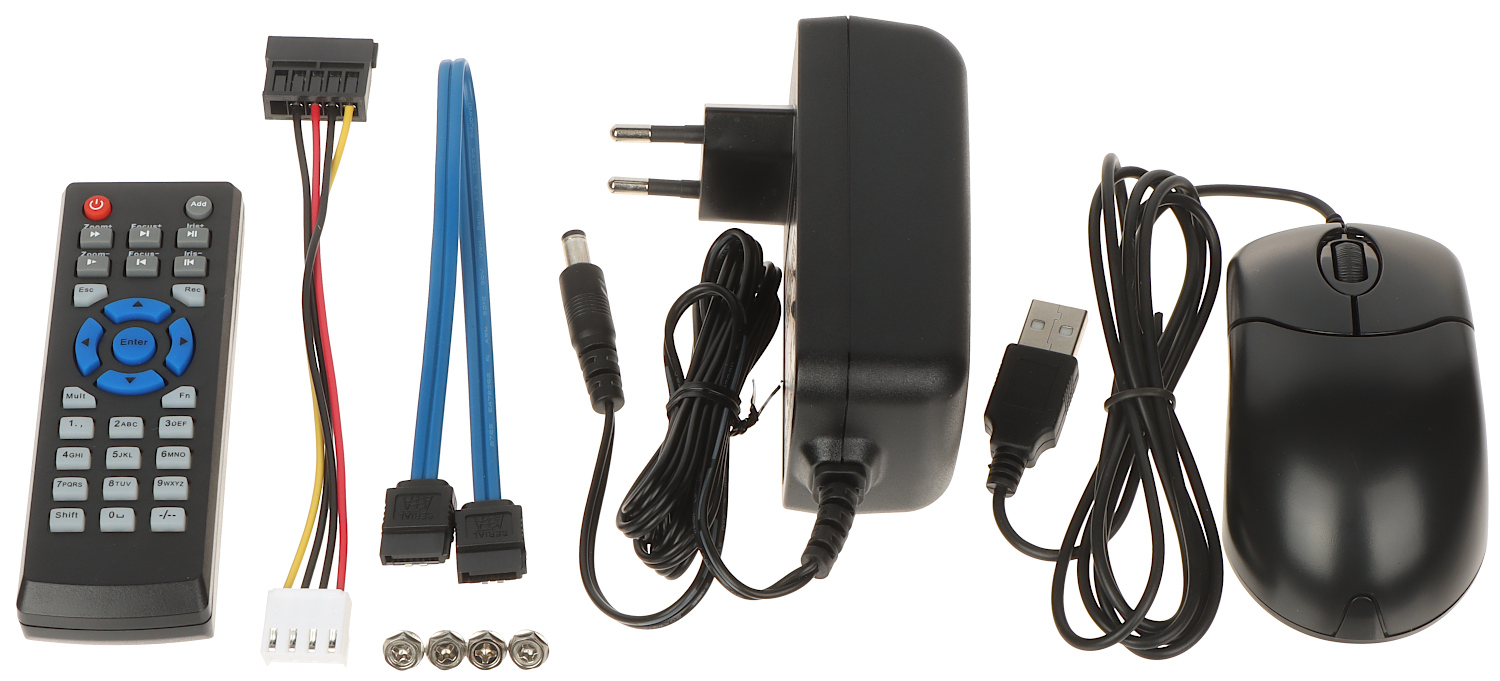

IR remote control included:


Source of energy supply:
12 V DC / 3 A (power adapter included)
Colour:
Black

Weight:
1.41 kg
Size:
325  x 256  x 55 mm, RACK 19", 1U

Language selection:
Polish, English
Manufacturer / Brand:
BCS Line

WARRANTY:
3 years
