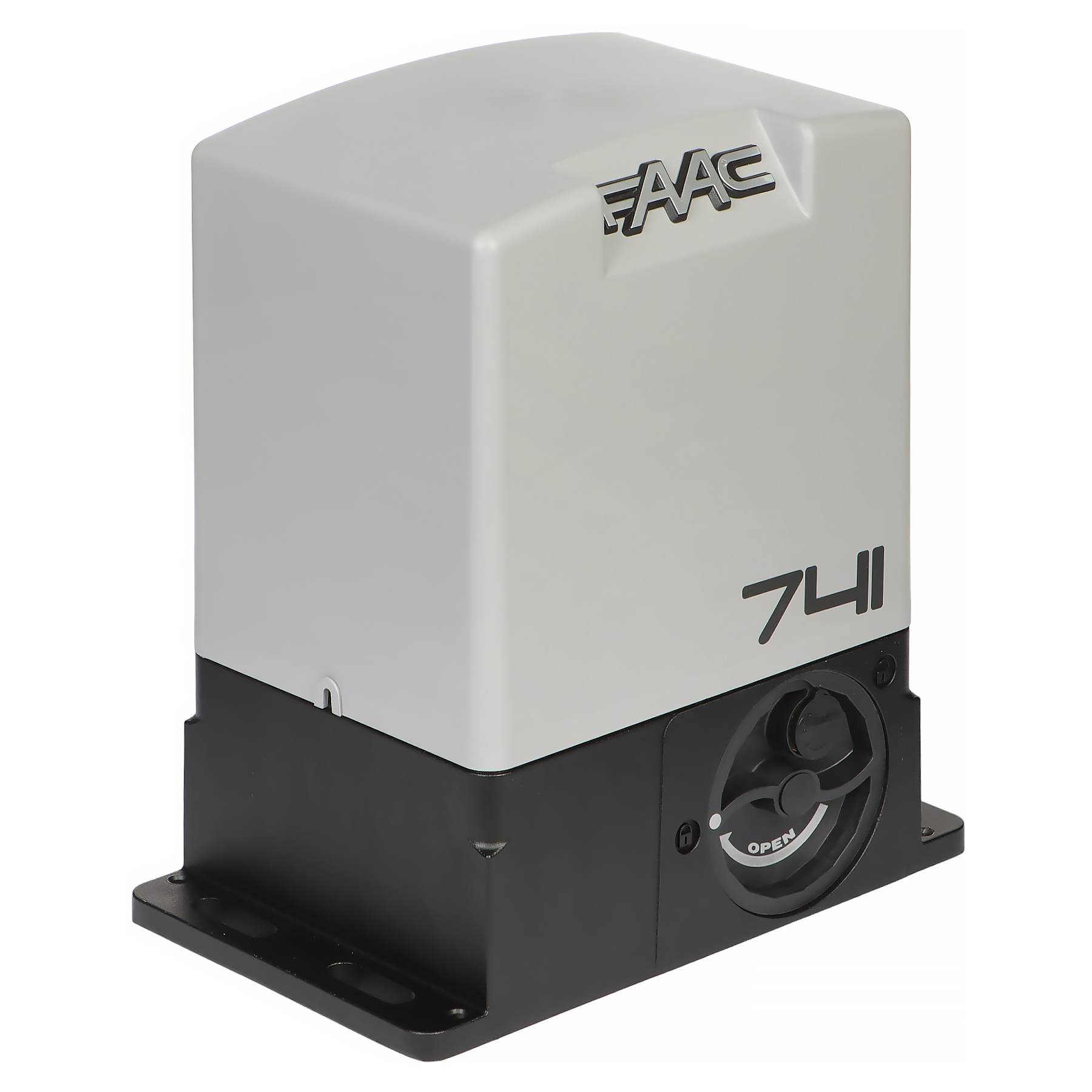

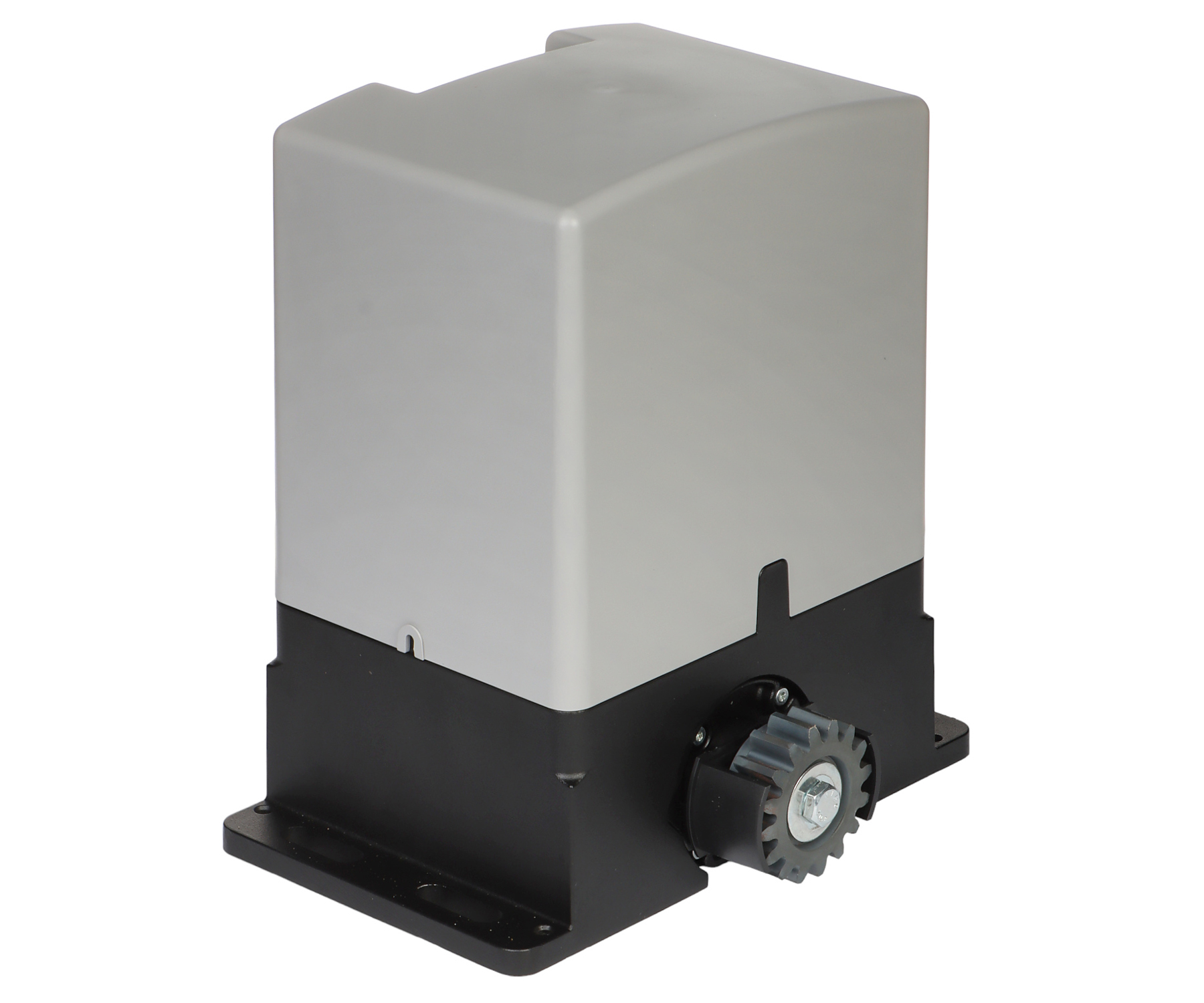

BĪDĀMO VĀRTU PIEDZIŅA FAAC-DELTA-3-FDS/KIT – STARTA KOMPLEKTS

Gate drive type: Mechanical </span>;>Torque: 24 Nm (max) </span>;>Maximum gate weight: 900 kg </span>;>Maximum gate length: 15 m </span>;>Linear speed: 12 m/min (max) </span>;>Wireless transmission reception area: ≥ 50 m (in open area) </span>;>Selected characteristics: Self-locking closer </span>; <table>

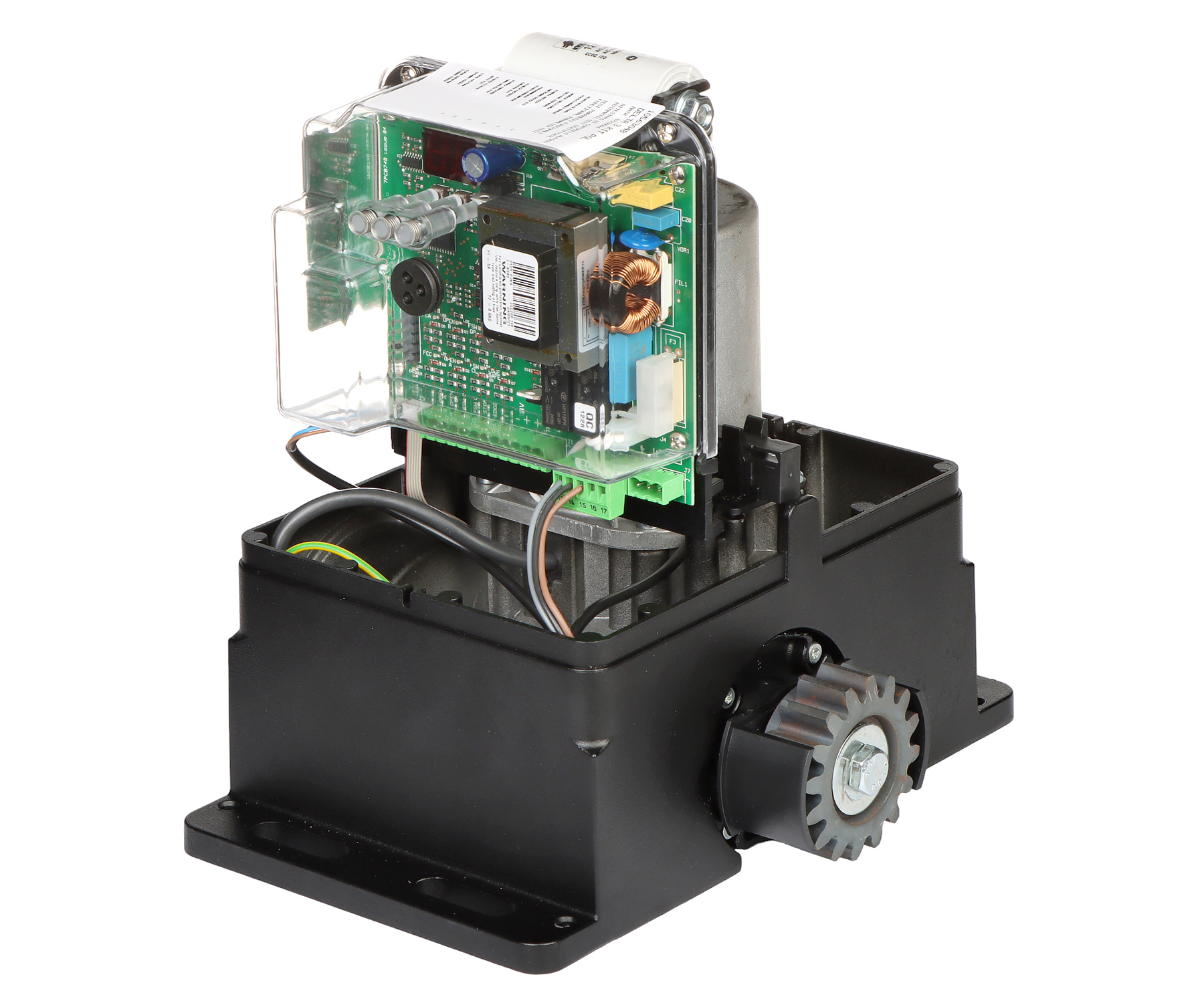

Gate drive type:
Mechanical, For Sliding Gates – Starter Kit
Torque:
24 Nm (max)

Maximum thrust:
650 N
Engine type:
Asynchronous single-phase motor, 230 V AC

Maximum gate weight:
900 kg
Maximum gate length:
15 m

Linear speed:
12 m/min (max)
Automatic gate closing:

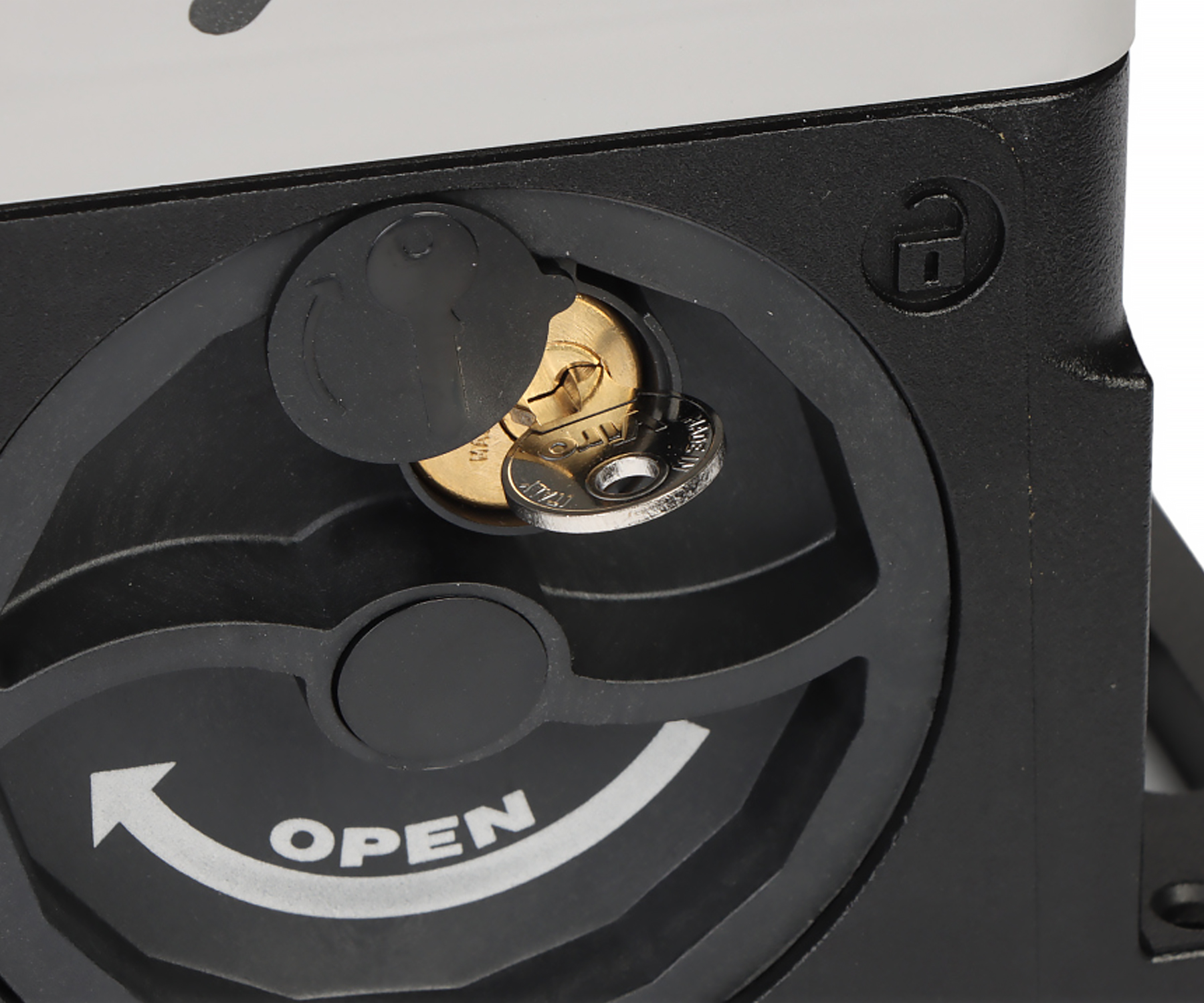

Automatic drive lock:

Limit switch:

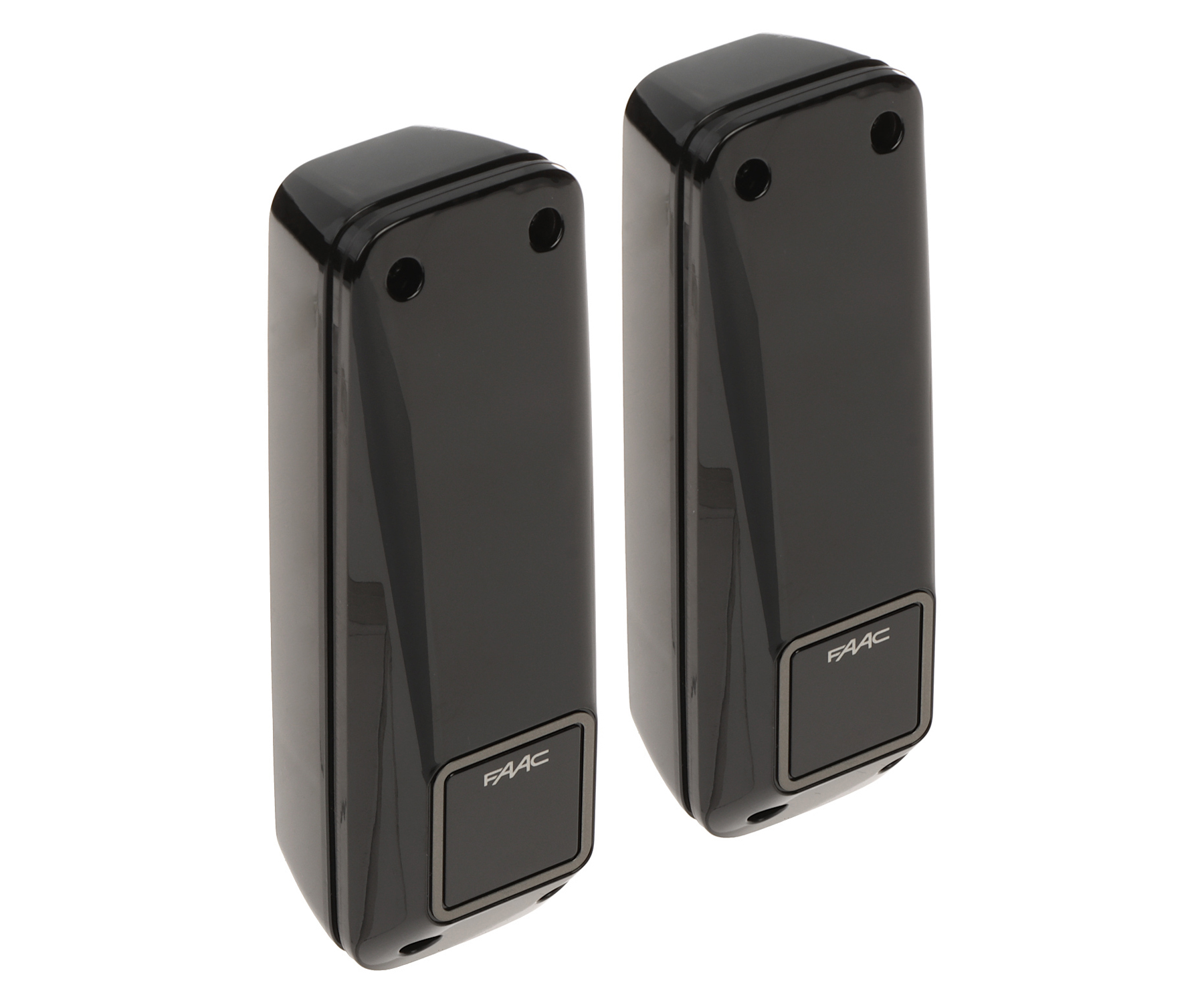

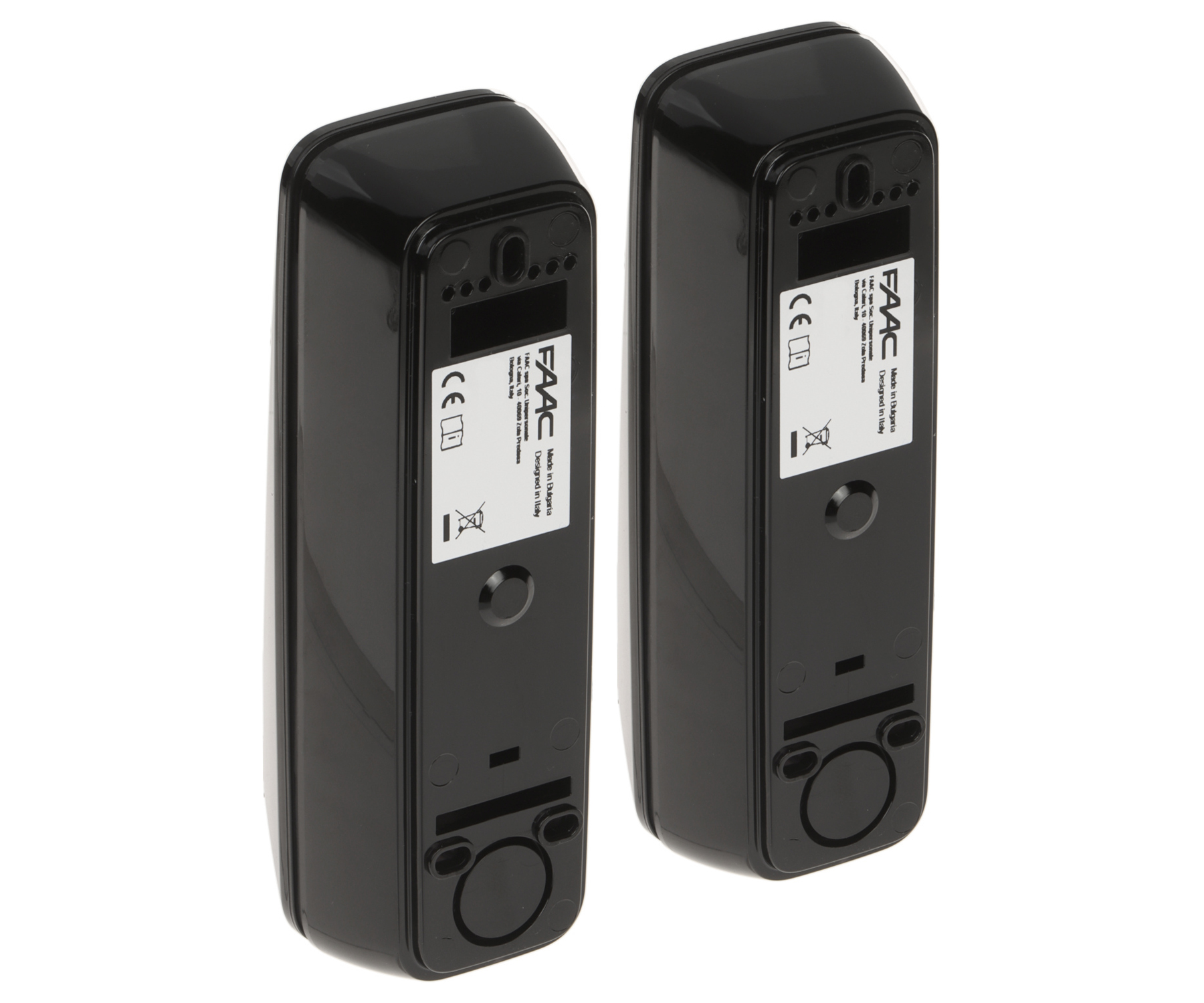

Possibility to connect a photocell:

Possibility to connect a signal lamp:

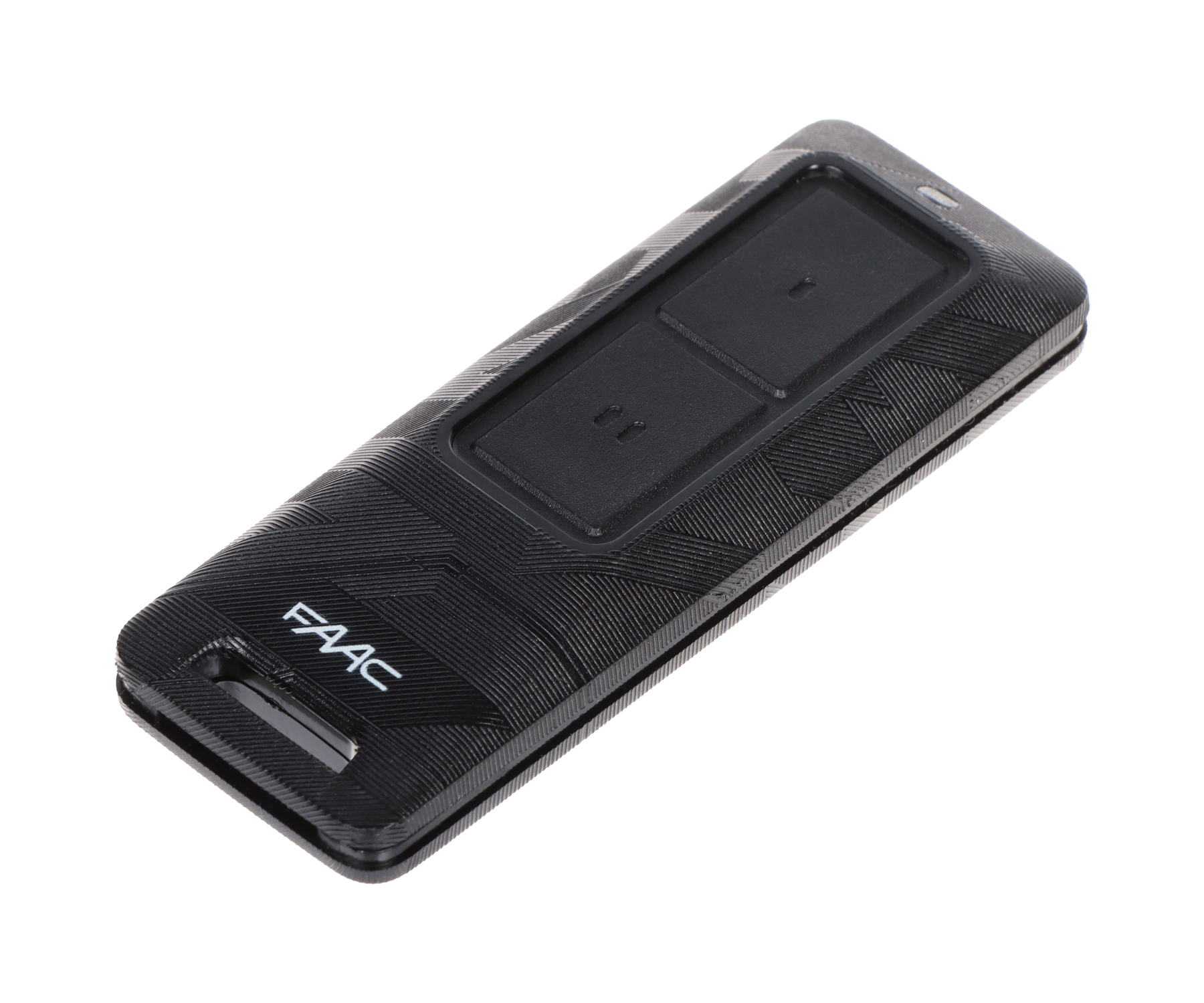

Maximum number of programmed remote controls:
250 Channels
Wireless transmission reception area:
≥ 50 m (in open area)

System operating frequency band :
868.35 MHz
Selected characteristics:
Self-locking closer

Source of energy supply:
220 … 240 V AC, 50 / 60 Hz
Hull:
Plastics

Class of protection:
IP44
Colour:
Light gray + Black

Operating temperature:
-20°C … 55°C
Weight:
10.5 kg

Size:
295 x 181 x 320 mm
Manufacturer / Brand:
FAAC

WARRANTY:
2 years
