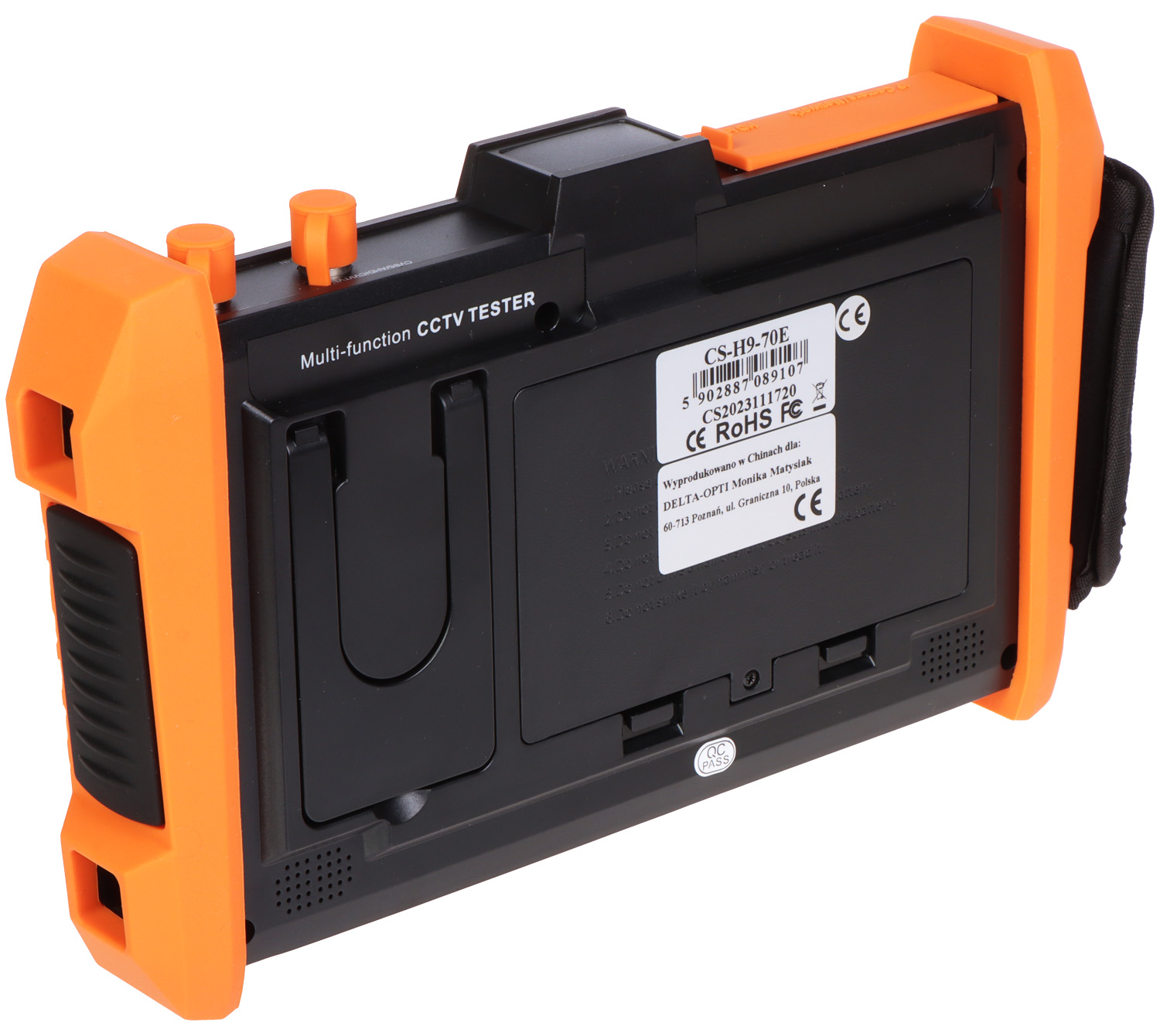

MULTIFUNCTION TESTER CCTV CS-H9-70E

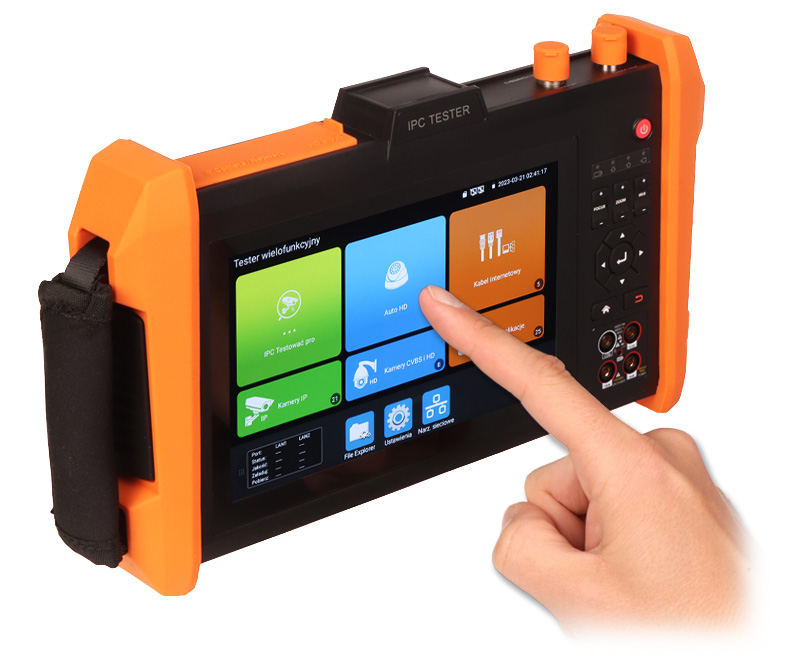

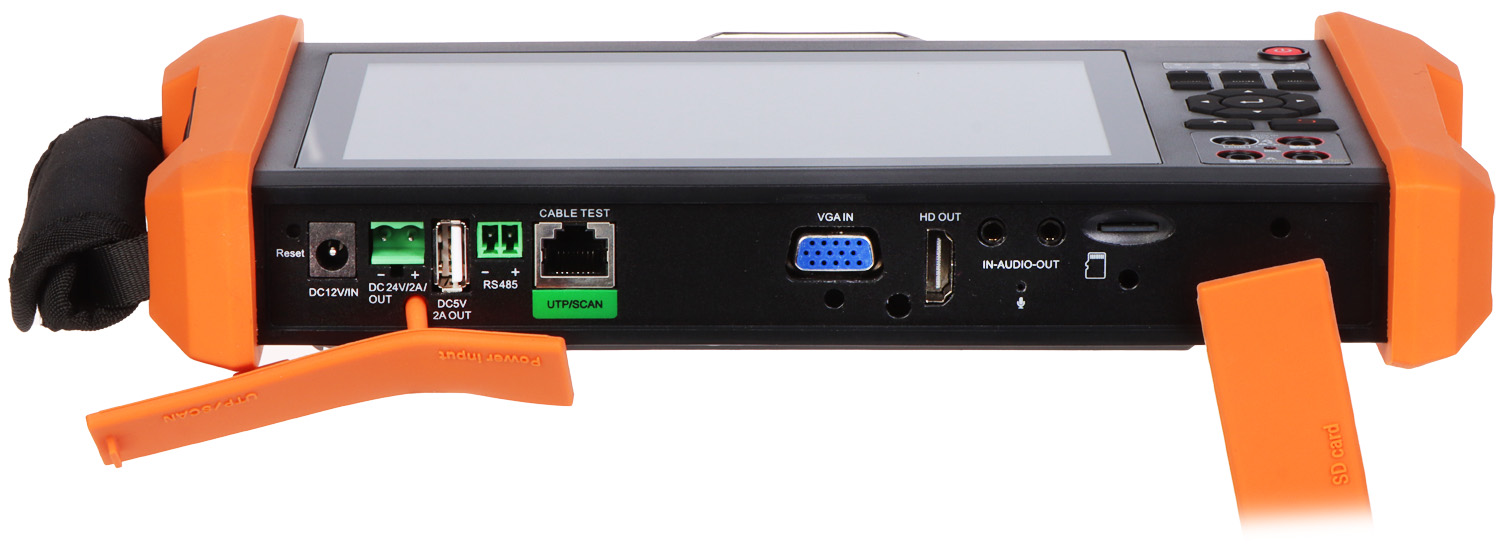

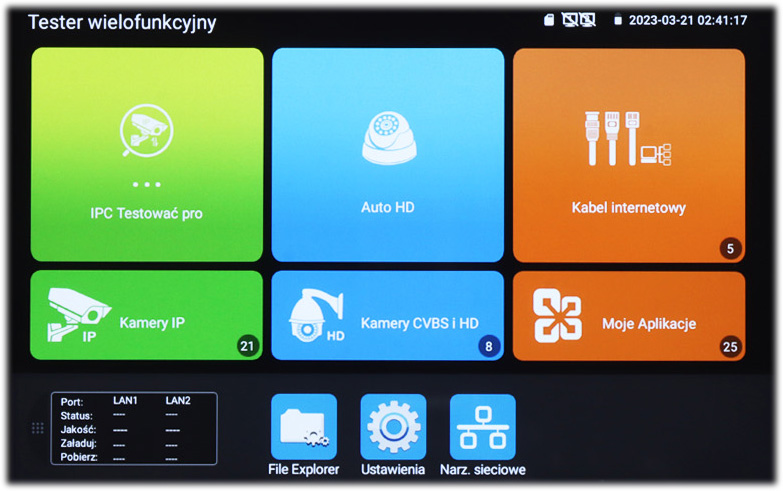

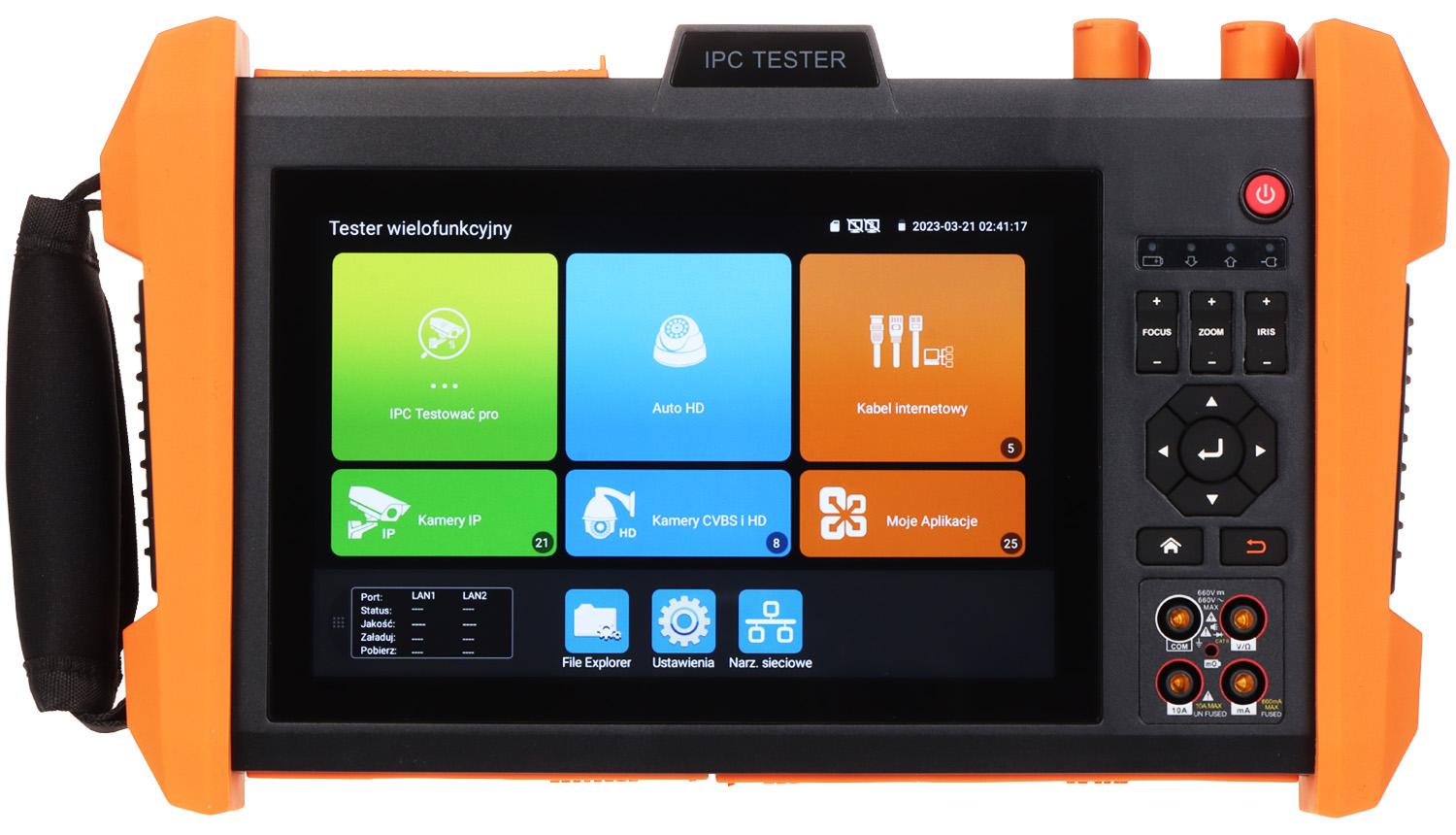

Video standard: AHD – 8 Mpx, HD-CVI – 8 Mpx, HD-TVI – 8 Mpx, TCP/IP – 8K @ H.265 / 4K @ H.264, CVBS – PAL / NTSC </span>;>Display: 7 " Retina - capacitive touchscreen, 1280 x 800 px </span>;>Entrance Video: 1 pc. AHD / HD-CVI / HD-TVI / CVBS – BNC socket 1 pc. VGA 1 pc. HDMI </span>;>Output Video: 1 pc CVBS 1 pc HDMI </span>;>LAN port: 2 pcs. – Compatible with video cameras and PoE switch </span>;>Regular ports: RS-485 </span>;>Protocols: : Pelco-D, Pelco-P </span>;>Wi-Fi module</span>;>Digital multimeter: Measurements: voltage, current, active resistance, continuity test, diode test, electrical load </span>;>Selected features: Compatible image compression methods: H.265, H.264, MJPEG </span>; <table>

Video standard:

1 piece HDMI

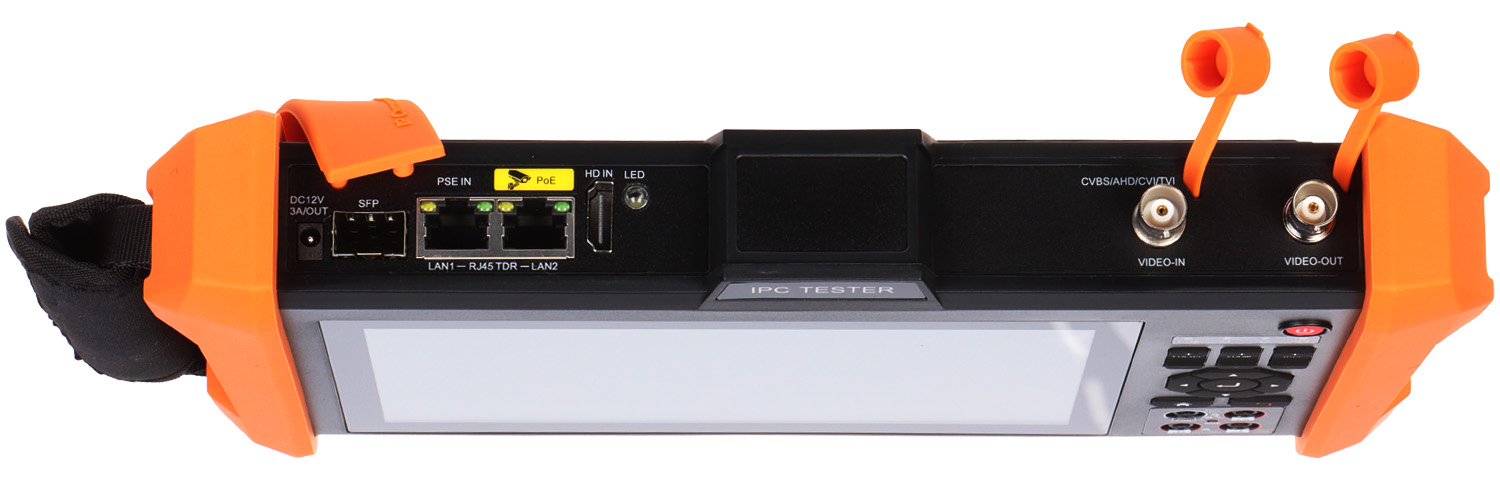

LAN port:
2 pcs. – Compatible with video cameras and PoE switch
Audio Input:
1 pc. Mini Jack

Audio Output:
1 pc. Mini Jack
Video signal level meter:


Video signal generator:

Regular ports:
RS-485

Protocols:
Supports more than 30 RS485 protocols: Pelco-D, Pelco-P, YAAN, YAAN-O, YAAN-1, SAMSUNG, PANASONIC, Lilin-FAST, Lilin-MLP2, MOLYNX, MINKING A01, Fastrax, CBC, LC-NEW, WV-CS850, SONY-EVI, LG-MULTIX, DAT-SD, VICON, Vcltp, DH-YTC 06, Santachi, Bosch OSRD, TeleEye DM2, HD 600, Hikvision, KALATEL ASC, AD 168(MB), SAMSUNG SPD, Siemens, Cohu, MINKING B01, ALEC
Transmission speed:
150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 115200 b/s

Testing a twisted pair cable or telephone line:
Testing UTP cables or telephone connections with RJ-45 plugs
Line test RS-485, RS-232:
Data check with master device (commands are displayed in hexadecimal)

Wi-Fi module:

Cable identification in a cable group:


Audio test:

Digital multimeter:
Measurements: voltage, current, active resistance, continuity test, diode test, electrical load

Optical power measurements:

VLS (VFL) – visual fault locator from optical fibers:


TDR reflectometer:

Work as a power source:
