Technical Specification:
| Standard: | TCP/IP |
| Sensors: | 1/3” Progressive Scan CMOS |
| Matrix size: | 4 Mpx |
| Resolution: | 2560 x 1440 – 4 Mpx |
| Lens: | 3.6 mm |
| Viewing angle: | 79 ° |
| Infrared illumination detection area: | 30 m |
| Horizontal rotation range: | 355° |
| Vertical rotation range: | 0°…90° |
| Audio: | Built-in microphone, Audio signal transmission over the network |
| Image compression method: | H.265 |
| Main stream transmission speed: | 25 frames per second @ 4 Mpx |
| Network protocols: | TCP, DHCP, ONVIF |
| Network interface: | Ethernet : 100 Mbps Wi-Fi IEEE 802.11 b/g/n |
| WEB Server: | - |
| Mobile phone access: | Cloud access (P2P) Android: Free IMOU app iOS (iPhone): Free IMOU app |
| Default username/admin password: | admin / – Administrator password must be set during first launch |
| Default IP address: | DHCP |
| Browser access ports: | - |
| Access ports using PC application: | - |
| Access ports using the mobile application: | - |
| ONVIF port: | - |
| RTSP URL: | - |

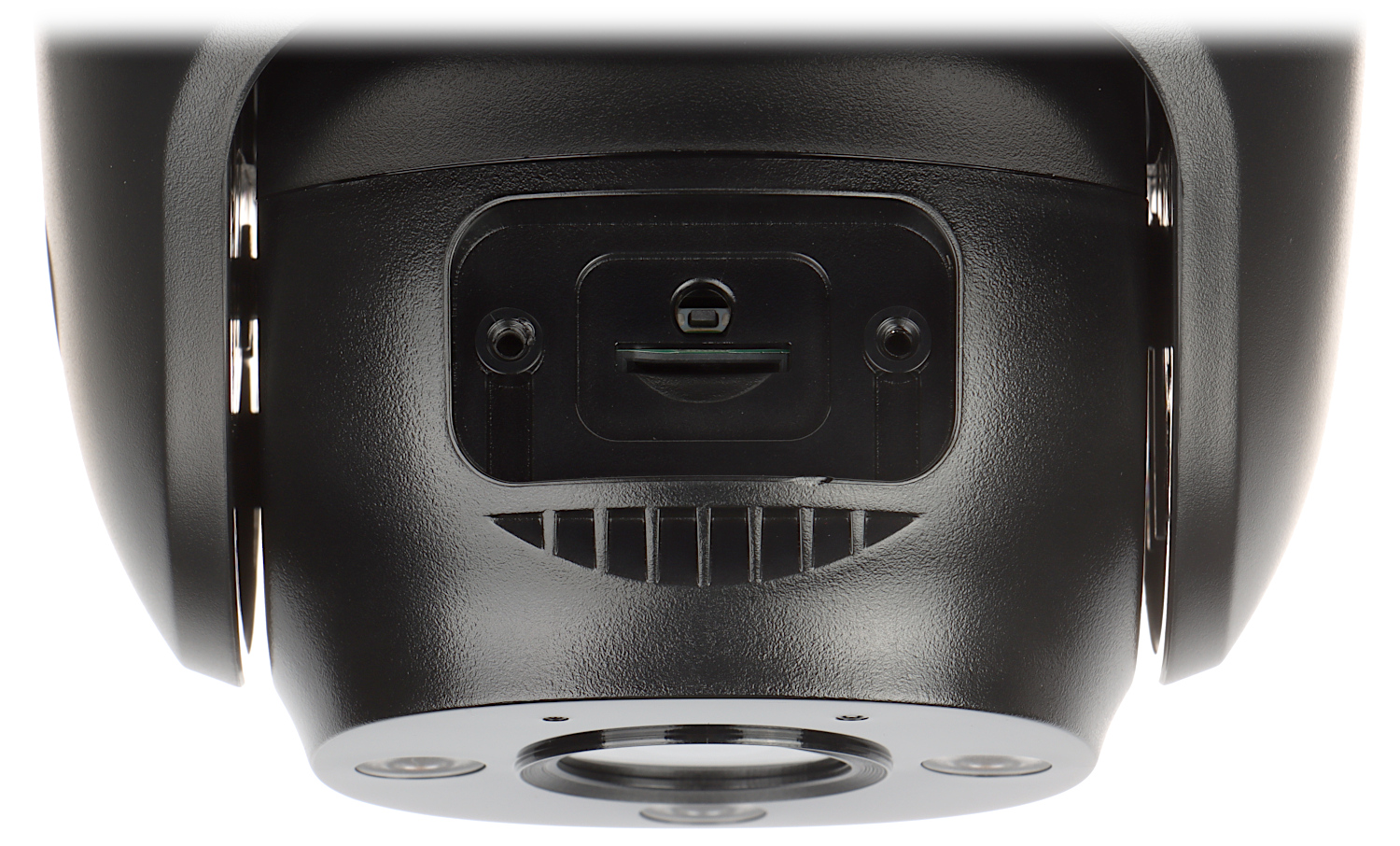

| Memory card slot: | Supports Micro SD memory cards up to 256GB (local recording possible) |

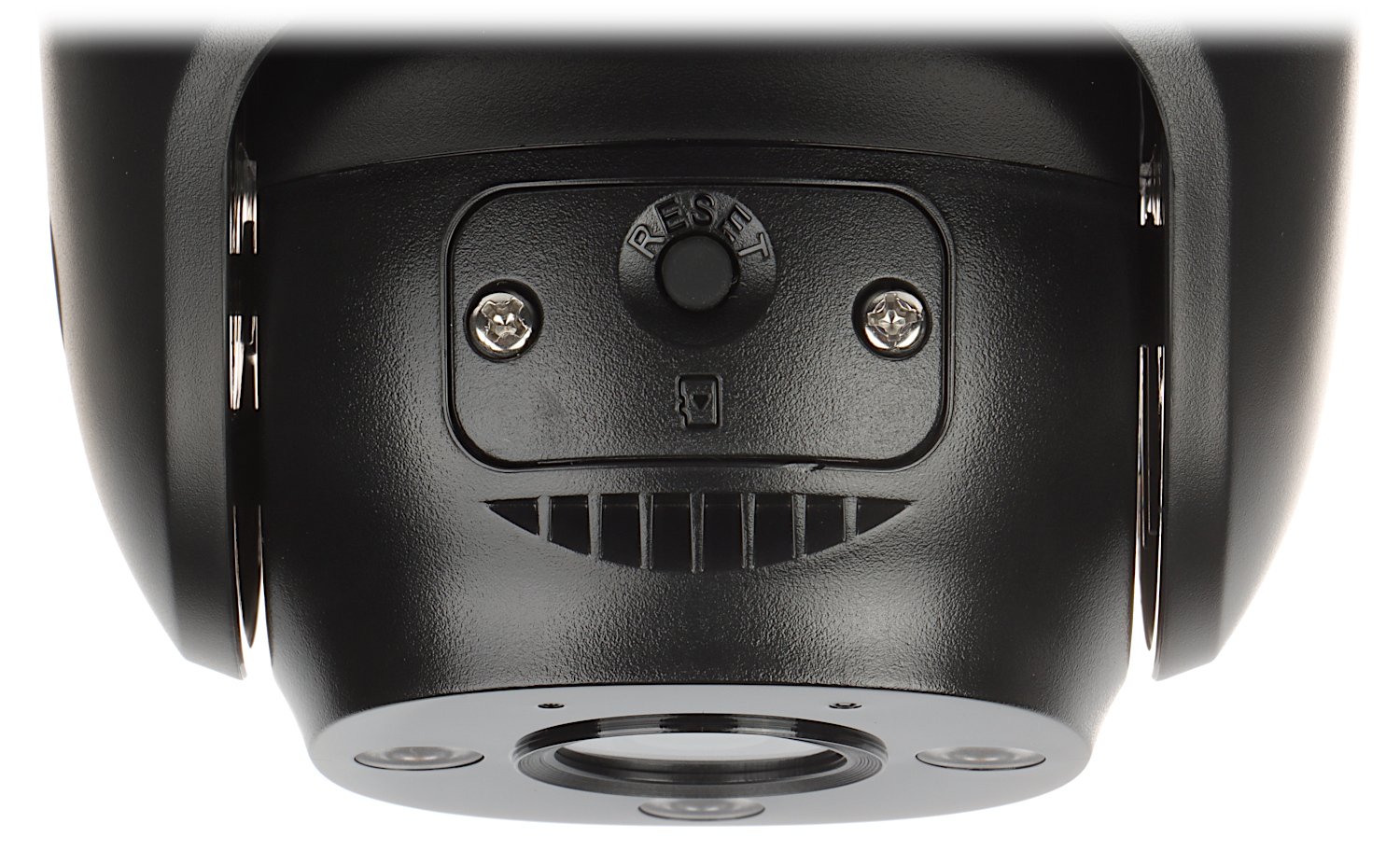

| Selected features: | MODULE Wi-Fi – IEEE 802.11 b/g/n, Detection range: 100 m (open space), Motion detection Person detection Intelligent object tracking Alarm notifications – Instant sending of motion-activated alerts to your mobile phone D-ZOOM – Digital zoom: 16x Full Color – colorful night mode LED reflector Light alarm Active deterrence function IMOU cloud RESET button |

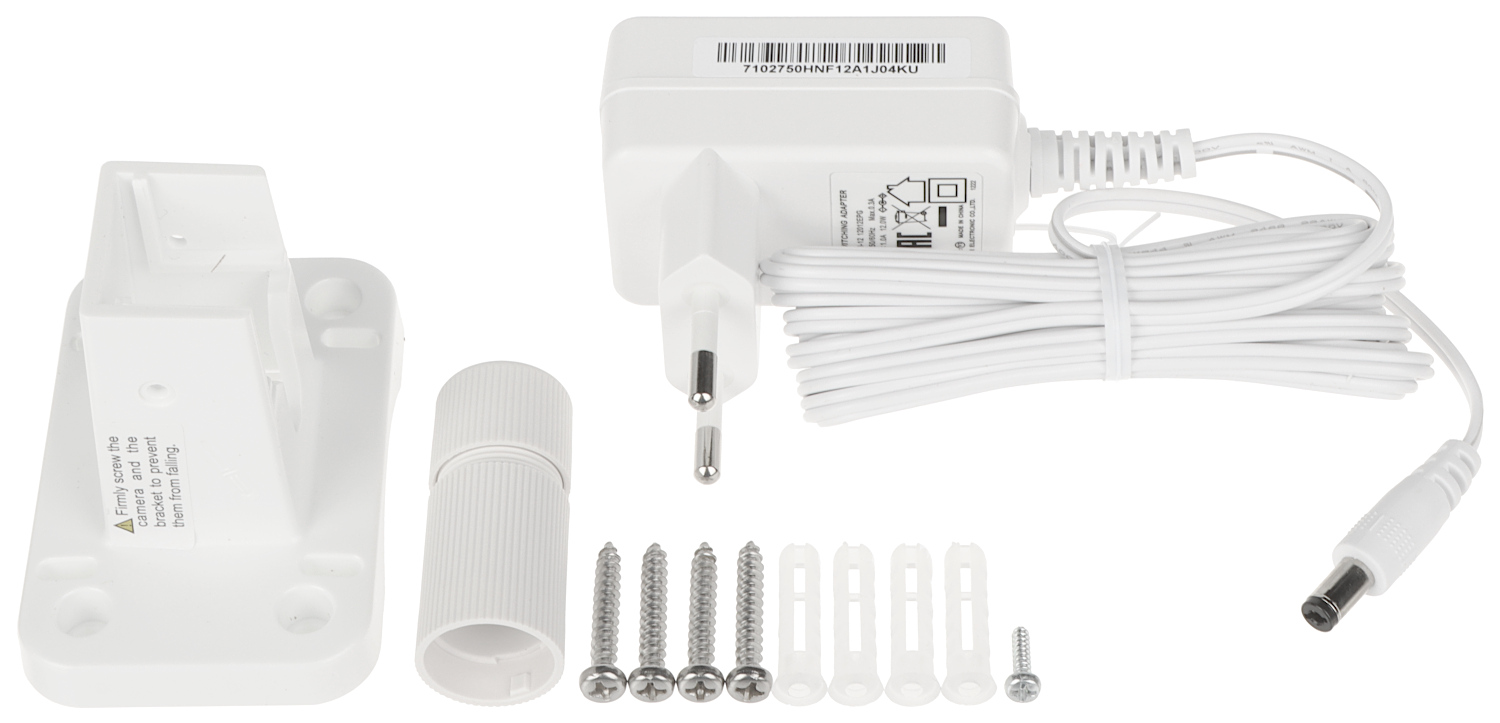

| Source of energy supply: | 12 V DC / 1 A (power adapter included) |
| Power consumption: | < 6.2W |
| Protection class: | IP66 |
| Weight: | 0.39 kg |
| Size: | Ø 110 x 129 mm (Camera) 136 x 121 x 183 mm (with mount), (with antennas) |
| Language selection: | - |
| Manufacturer / Brand: | DAHUA / IMOU |
| Warranty: | 2 years |
