Supported resolution: max. 8.3 Mpx 4K UHD – 3840 x 2160 px </span>; Audio support: 9 Channels </span>; Image compression method: H.265+ </span>; Supported hard drives: 1 x 8TB SATA </span>;
| Standard: | IP |
| Supported resolution: | max. 8.3 Mpx 4K UHD – 3840 x 2160 px |
| Video outputs: | 1 piece HDMI |
| Audio support: | 9 Channels – Audio from cameras |
| Audio input: |  |
| Audio output: | |
| Image compression method: | H.265+ / H.265 / H.264+ / H.264 |
| Bit transmission: | 72 Mbps (incoming) |
| Supported hard drives: | 1 x 8TB SATA |
| Recording modes: | Manual, motion detection, schedule |
| Backups on external media: | Backup to USB (pendrive, external drive) |
| Searching and playing recordings: | Search for recordings by time and event type. Playback: forward, backward, speed up, slow down Channels played simultaneously: 1 @ 8 Mpx, 30 frame rate 1 @ 5 Mpx, 30 frame rate 2 @ 4 Mpx, 30 frame rate 2 @ 3 Mpx, 30 frame rate 4 @ 1080p, 30 frame rate 9 @ 720p, 30 frame rate |
| Network interface: | 1 x RJ-45 10/100 Base-TX |
| Network features: | Client program and IE browser: live view, playback and recording archive, recorder parameter configuration |
| ONVIF: |  |
| Default IP address: | 192.168.1.88 |
| Default username/admin password: | admin / 12345 |
| Mobile phone access: | Cloud access (P2P) |
| Browser access ports: | 80, 5000, 554 |
| Access ports using PC application: | 80, 5000, 554 |
| USB: | 2 pcs. USB 2.0 |
| Regular ports: | |
| Alarm inputs/outputs: | |
| PTZ head rotation control: | IP Speed Dome cameras |
| Motion detection: | Screen division: 22 x 18 motion zones |
| Intelligent image analysis: | |
| Selected functions: | |
| Mouse crew: | |
| IR remote control included: | |
| Switch PoE: | |

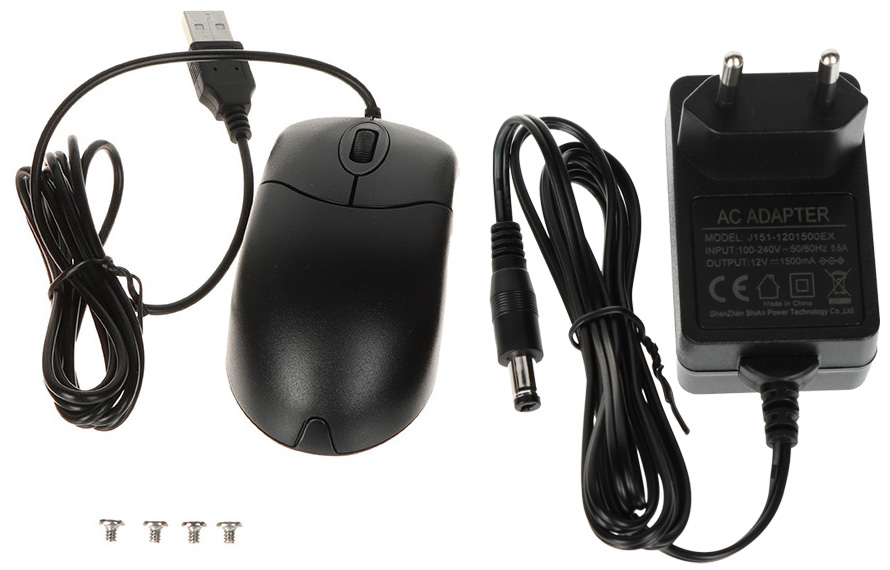

| Source of energy supply: | 12 V DC / 1.5 A (power adapter included) |
| Power consumed: | max. 6 W (without HDD & PoE) |
| Operating temperature: | -10°C … 50°C |
| Weight: | 0.524 kg |
| Size: | 200 x 175 x 40 mm |
| Language selection: | Polish, English, Bulgarian, Czech, French, Greek, Spanish, Dutch, German, Portuguese, Russian, Ukrainian, Italian |
| Manufacturer / Brand: | APTI |
| WARRANTY: | 2 years |
