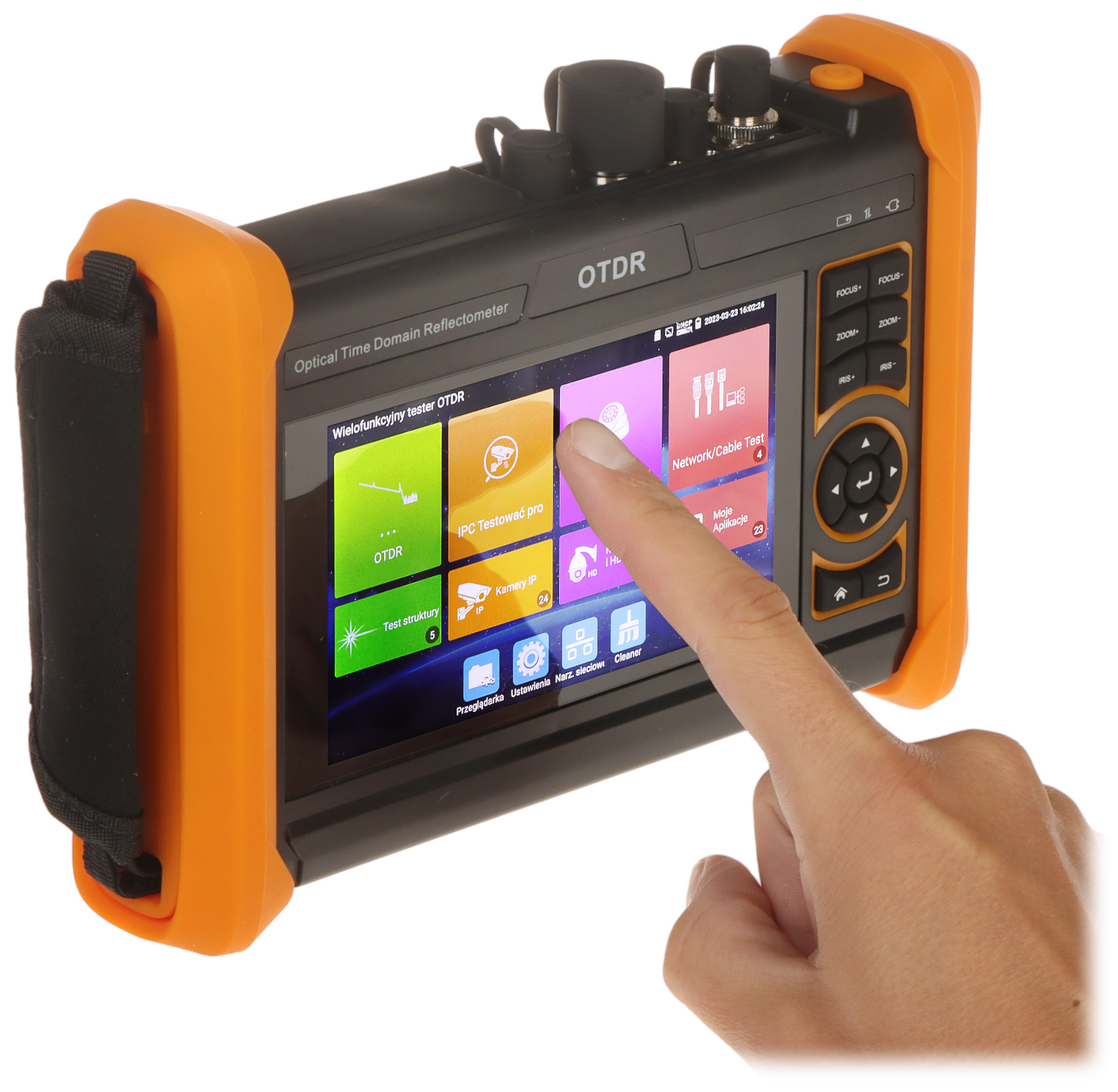

OPTICAL OVERVIEW REFLECTOMETER (OTDR) WITH CCTV TESTER CS-R3-50H

Optical Time Domain Reflectometer (OTDR): Optical wavelength: 1310 nm / 1550 nm, Wide measurement range: 200 km (max) </span>;>Optical power measurements: Range: -70 … +10 dBm </span>;>VLS (VFL) – visual fault locator from optical fibers: LD laser </span>;>Video standard: AHD, HD-CVI, HD-TVI – 8 Mpx, TCP/IP – 4K, CVBS – PAL / NTSC </span>;>Display: 5.4 " Retina - capacitive touchscreen, 1920 x 1152 px </span>;>Entrance Video: 1 pc. AHD / HD-CVI / HD-TVI / CVBS – BNC socket, 1 pc. HDMI 1 pc. VGA </span>;>Exit Video</span>;>LAN port: 2 pcs. – Compatible with video cameras and PoE switch </span>;>Regular ports: RS-485 </span>;>Wi-Fi module</span>;>Cable identification in a cable group</span>;>Selected features: Compatible image compression methods: H.265, H.264, MJPEG </span>; <table>

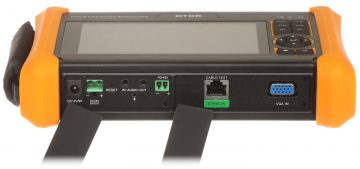

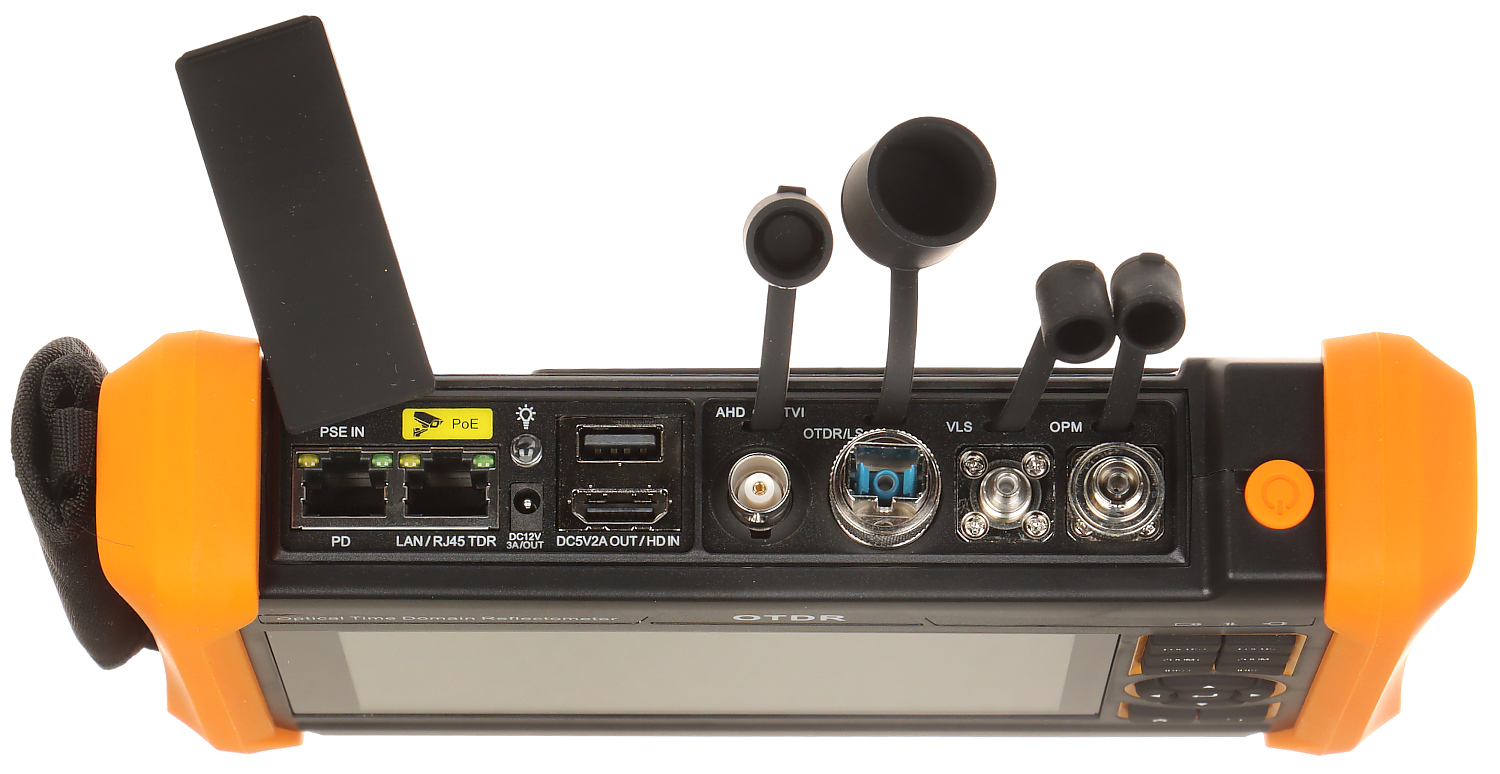

Optical Time Domain Reflectometer (OTDR):

1 piece VGA

Exit Video:

LAN port:
2 pcs. – Compatible with video cameras and PoE switch

Audio Input:
1 pc. Mini Jack
Audio Output:
1 pc. Mini Jack

Video signal level meter:

Video signal generator:


Regular ports:
RS-485
Protocols:
Supports more than 30 RS485 protocols: Pelco-D, Pelco-P, YAAN, YAAN-O, YAAN-1, SAMSUNG, PANASONIC, Lilin-FAST, Lilin-MLP2, MOLYNX, MINKING A01, Fastrax, CBC, LC-NEW, WV-CS850, SONY-EVI, LG-MULTIX, DAT-SD, VICON, Vcltp, DH-YTC 06, Santachi, Bosch OSRD, TeleEye DM2, HD 600, Hikvision, KALATEL ASC, AD 168(MB), SAMSUNG SPD, Siemens, Cohu, MINKING B01, ALEC

Transmission speed:
150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 115200 b/s
Testing a twisted pair cable or telephone line:
Testing UTP cables or telephone connections with RJ-45 plugs

Line test RS-485, :
Data check with master device (commands are displayed in hexadecimal)
Wi-Fi module:


Cable identification in a cable group:

Audio test:


Digital multimeter:

TDR reflectometer:
Cable break detection (UTP only), 180 m (max)

Work as a power source:
