Name: OPTICAL OVERVIEW REFLECTOMETER (OTDR) WITH CCTV TESTER CS-R8-80H
SKU: CS-R8-80H
Availability: InStock

OPTICAL OVERVIEW REFLECTOMETER (OTDR) WITH CCTV TESTER CS-R8-80H

Product code: CS-R8-80H

EAN: 5902887089091

Piegādes laiks: 22-29 Decembrī

Estimated Delivery Dates

1268,29 €

Availability: 1

Optical Time Domain Reflectometer (OTDR): Optical wavelength: 1310 nm / 1550 nm, Wide measurement range ≤ 105 km Optical power measurements: Range: -70 … +10 dBm VLS (VFL) – visual fault locator from optical fibers: LD laser Video standard: AHD, HD-CVI, HD-TVI – 8 Mpx, TCP/IP – 8K, CVBS – PAL / NTSC Display: 8 " IPS - capacitive touchscreen, 1920 x 1200 px Entrance Video: 1 pc. AHD / HD-CVI / HD-TVI / HD-SDI / CVBS – BNC socket, 1 pc. HDMI 1 pc. VGA Output Video: 1 pc HDMI 4K LAN port: 2 pcs. – Compatible with video cameras and PoE switch Regular ports: RS-485 Wi-Fi module: 2.4GHz / 5GHz Cable identification in a cable groupDigital multimeter: Measurements: voltage, current, active resistance, continuity test, diode test, electrical load Selected features: Compatible image compression methods: H.265, H.264, MJPEG

Optical Time Domain Reflectometer (OTDR):

Optical wavelength : 1310nm / 1550nm,

Dynamic range: 28/26 dB

Wide measurement range ≤ 105 km

Measurement error: ± (1 m + 5×10^-5 × distance + sampling interval)

Connectors: SC

Measurement duration: 5 s, 10 s, 15 s, 30 s, 1 min, 2 min, 3 min
Optical power measurements:
Optical power measurements in fiber optic networks (ST and SC adapters)
Optical wavelength : 850, 1300, 1310, 1490, 1550, 1625 nm
Range: -70 … +10 dBm

VLS (VFL) – visual fault locator from optical fibers:
LD laser, 650 nm, 10 mW
Range 8 km
Video standard:

AHD – 8 Mpx,

HD-CVI – 8 Mpx,

HD-TVI – 8 Mpx,

TCP/IP – 8K,

CVBS – PAL / NTSC

Display:
8 " IPS - capacitive touchscreen, 1920 x 1200 px

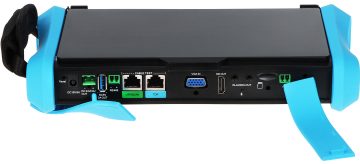

Entrance Video:

1 piece AHD / HD-CVI / HD-TVI / HD-SDI / CVBS – BNC socket,

1 piece HDMI, 60 frame rate, 4K

1 piece VGA

Exit Video:
1 pc HDMI 4K
LAN port:
2 pcs. – Compatible with video cameras and PoE switch

Audio Input:
1 pc. Mini Jack
Audio Output:
1 pc. Mini Jack

Video signal level meter:

Video signal generator:

Regular ports:
RS-485
Protocols:
Supports more than 30 RS485 protocols: Pelco-D, Pelco-P, YAAN, YAAN-O, YAAN-1, SAMSUNG, PANASONIC, Lilin-FAST, Lilin-MLP2, MOLYNX, MINKING A01, Fastrax, CBC, LC-NEW, WV-CS850, SONY-EVI, LG-MULTIX, DAT-SD, VICON, Vcltp, DH-YTC 06, Santachi, Bosch OSRD, TeleEye DM2, HD 600, Hikvision, KALATEL ASC, AD 168(MB), SAMSUNG SPD, Siemens, Cohu, MINKING B01, ALEC

Transmission speed:
150, 300, 600, 1200, 2400, 4800, 9600, 19200, 38400, 115200 b/s
Testing a twisted pair cable or telephone line:
Testing UTP cables or telephone connections with RJ-45 plugs

Line test RS-485, :
Data check with master device (commands are displayed in hexadecimal)
Wi-Fi module:
2.4GHz / 5GHz

Cable identification in a cable group:

Audio test:

Digital multimeter:
Measurements: voltage, current, active resistance, continuity test, diode test, electrical load
TDR reflectometer:
Cable break or short circuit detection, 180 m (max)

Work as a power source:

5V DC / 2 A from USB port

12 V DC / 3A

24V DC / 2A

48V (PoE, LAN), 24W

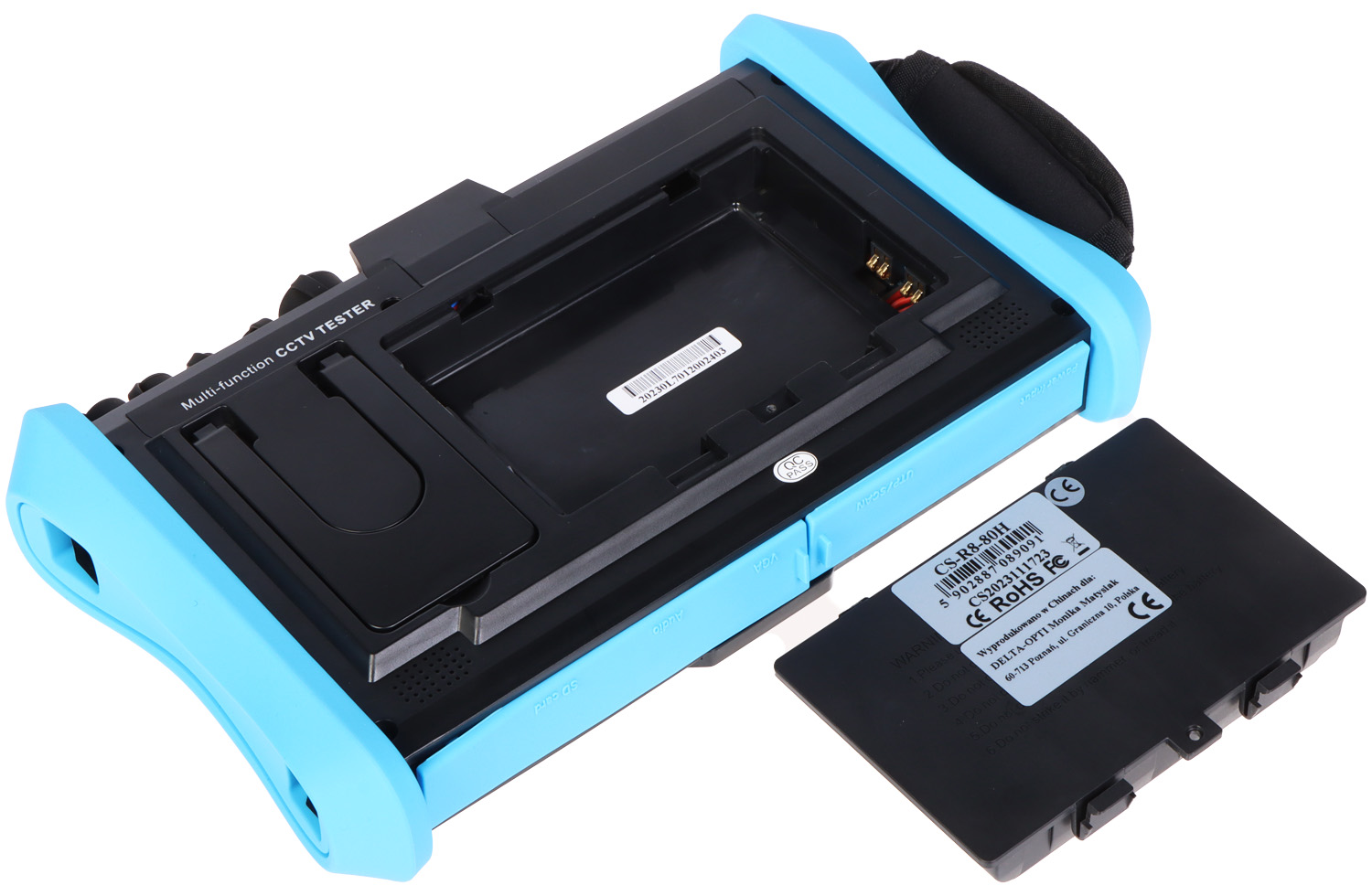

Charging the batteries:

7.4 Battery Li-Ion 7800 mAh

15V DC / 2 A (power adapter included)

Expected battery life:
≤ 11 hours
Operation:
Graphical menu – touch control and key control

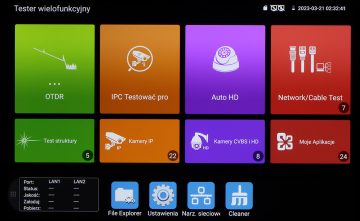

Selected functions:

Optical Time Domain Reflectometer (OTDR)

AHD video camera testing

HD-CVI video camera testing

HD-TVI video camera testing

HD-SDI video camera testing

PAL/NTSC video camera testing

IP video camera testing – Compatible image compression methods: H.265, H.264, MJPEG

Search and view IP cameras compatible with Onvif

Pan/Tilt and PTZ Camera (Speed Dome) Control

View from IP cameras using built-in application – DH test tool, Hik test tool, UNV Test Tool, HuaWei Tool, TP-Link tool, Tiandy tool
EZView

Built-in camera (capable of taking photos and recording videos)

Built-in Internet browser – Google Chrome

Video surveillance of LAN connections

IP address scanner

PING – connection test using ICMP packets

Discovering the connected port on the Switch

Twisted pair cable testing

Cable tracer app – easy cable detection in a messy bundle

Compatible with video cameras and PoE switches

PoE power meter

DC 5V/12V/24V/48V power source

TDR reflectometer

Optical power meter

Gigabit SFP fiber optic module port for fiber optic network testing

VLS (VFL) – visual fault locator from optical fibers

Data monitor – serial port monitor RS-485

Laser rangefinder: 100 m ± 3 mm

Digital Multimeter

Audio test

Hotspot – Wi-Fi

Playing recordings

VLC Media Player application installed – ability to play multimedia files in various popular formats (.mp3, .mp4, .avi, .mpeg and others)

microSD slot – 8 GB memory card included

Calculator

Installed Quickoffice package – creating and reading .docx text documents, .xlsx spreadsheets, and .pptx multimedia presentations

Built-in torch

Ability to change display design and background

Android 10
Operating temperature:
-10°C … 50°C

Permissible relative humidity:
30 % … 90 %
Weight:
1.35 kg

Size:
274 x 170 x 48 mm

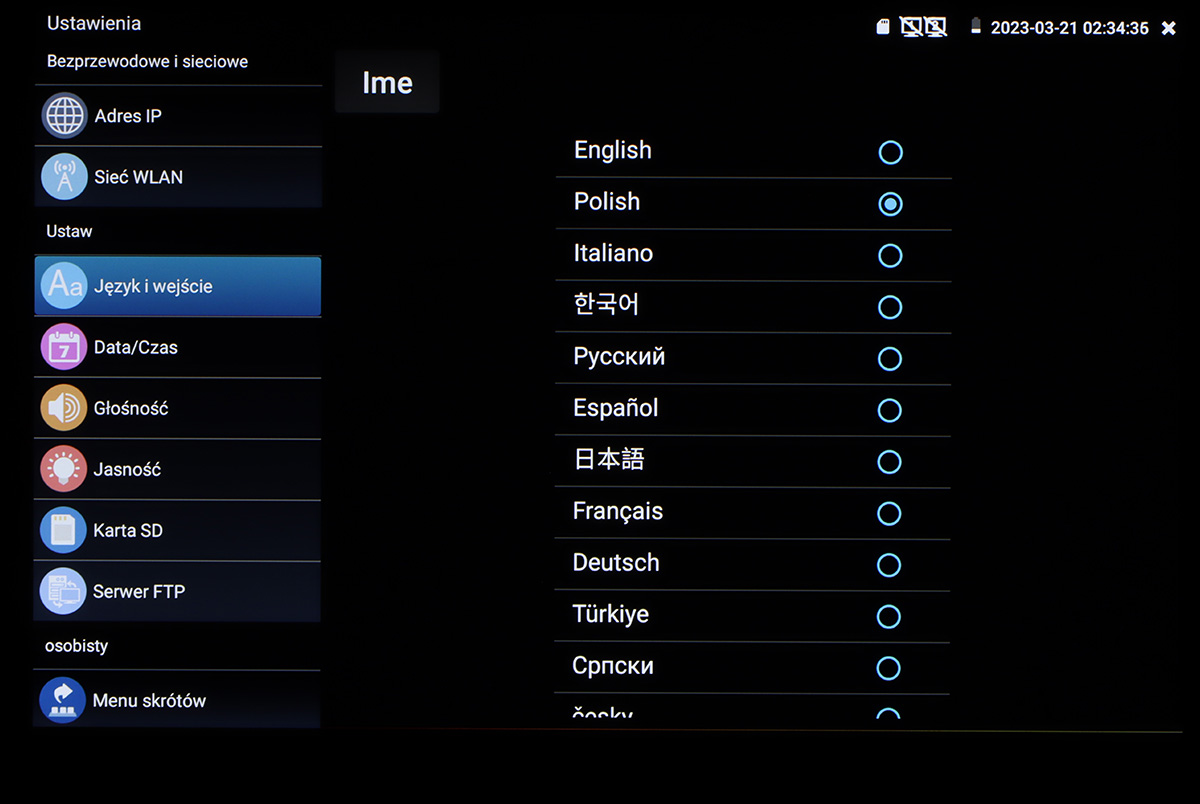

Language selection:
Polish, English, Bulgarian, Czech, French, Greek, Spanish, German, Portuguese, Russian, Turkish, Italian

WARRANTY:
2 years

Additional information

Svars	2,6920 kg
Dimensions	320 × 290 × 100 cm
