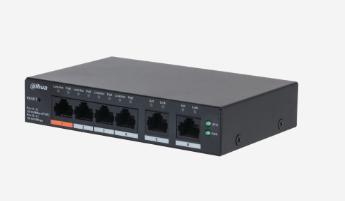

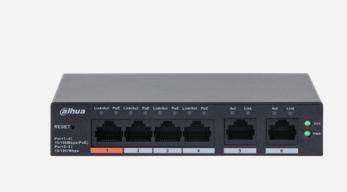

SWITCH DAHUA CS4006-4ET2ET-60
Key features:
✅ Compliance with IEEE802.3, IEEE802.3u, IEEE802.3x standards, IEEE802.3ab.
✅ Support for PoE power supply standards: IEEE802.3af, IEEE802.3at, Hi-PoE.
✅ Intelligent PoE power management - control power consumption and PoE on/off.
✅ Wide operating temperature range and all-metal, closed and dust-tight housing.
Technical specifications:
| CATEGORY | Specification | |
| Device type | Switch | |
| Layer | Layer 2 | |
| Switching bandwidth | 0.89 Gbps | |
| Packet transfer rate | 1.2 Mpps | |
| Ports | 1-4 port: 4 × RJ-45 10/100 Mb/s (PoE); 5-6 port: 2 × RJ-45 10/100 Mb/s | |
| Operating temperature | –10°C to +55°C (+14°F to +131°F) | |
| Working humidity | 10 %–90 % (relative humidity), non-condensing | |
| Storage temperature | –40°C to +70°C (–40°F to +158°F) | |
| Storage humidity | 5 % to 95 % (relative humidity), non-condensing | |
| Power source | External power supply: 53 V DC, 1226 A | |
| Power supply included | Yes | |
| Energy consumption | Idle: ≤3 W; full load: 65 W | |
| ESD protection | Air discharge: 8 kV; Contact discharge: 6 kV | |
| Surge protection | Common mode: 4 kV; Differential mode: 2 kV | |
| Net weight | 0.28 kg (0.62 lb) | |
| Gross weight | 0.92 kg (2.03 lbs) | |
| Product dimensions | 130 mm × 90 mm × 26 mm (5.11 in × 3.54 in × 1.02 in) (W × D × H) | |
| Package dimensions | 265 mm × 238 mm × 76 mm (10.43 in × 9.37 in × 2.99 in) (W × D × H) | |
| Material | Metal | |
| Fastener | Table mount; Wall mount | |
| PoE support | Yes | |
| PoE power supply | Port 1 ≤ 60 W, Ports 2-4 ≤ 30 W, Total ≤ 60 W | |
| PoE protocol | IEEE 802.3af; IEEE 802.3at; Hi-PoE | |
| PoE power management | Yes | |
| Assigning PoE ports | 1, 2, 4, 5 (V+), 3, 6, 7, 8 (V-) | |
| PoE transmission over long distances | Yes | |
| Package contents | 1 × User Manual; 1 × Legal and Regulatory Information; 1 × Power Cable; 1 × Mounting Kit; 1 × Position Card | |
| Switch type | Fixed | |
| Ethernet ports | 4 | |
| Reset button | 1 | |
| Recommended video channels | 4-channel 4MP IPC | |
| Mean time between failures (MTBF) | 232.62 years | |
| Packet buffer size | 4 Mbit | |
| Big shot | 9216 bytes | |
| MAC table | 8K | |
| Communication standard | IEEE802.3; IEEE802.3u; IEEE802.3x | |
| Number of VLANs | 32 | |
| VLAN function | Port-based VLAN | |
| Port functions | IEEE 802.3x flow control; unknown unicast suppression; multicast storm control; broadcast storm control | |
| Mirror | Local port replication | |
| Reliability | LLDP | |
| DHCP function | DHCP client | |
| Security | Port isolation | |
| Device management | Cloud Management; Web; Logs |
