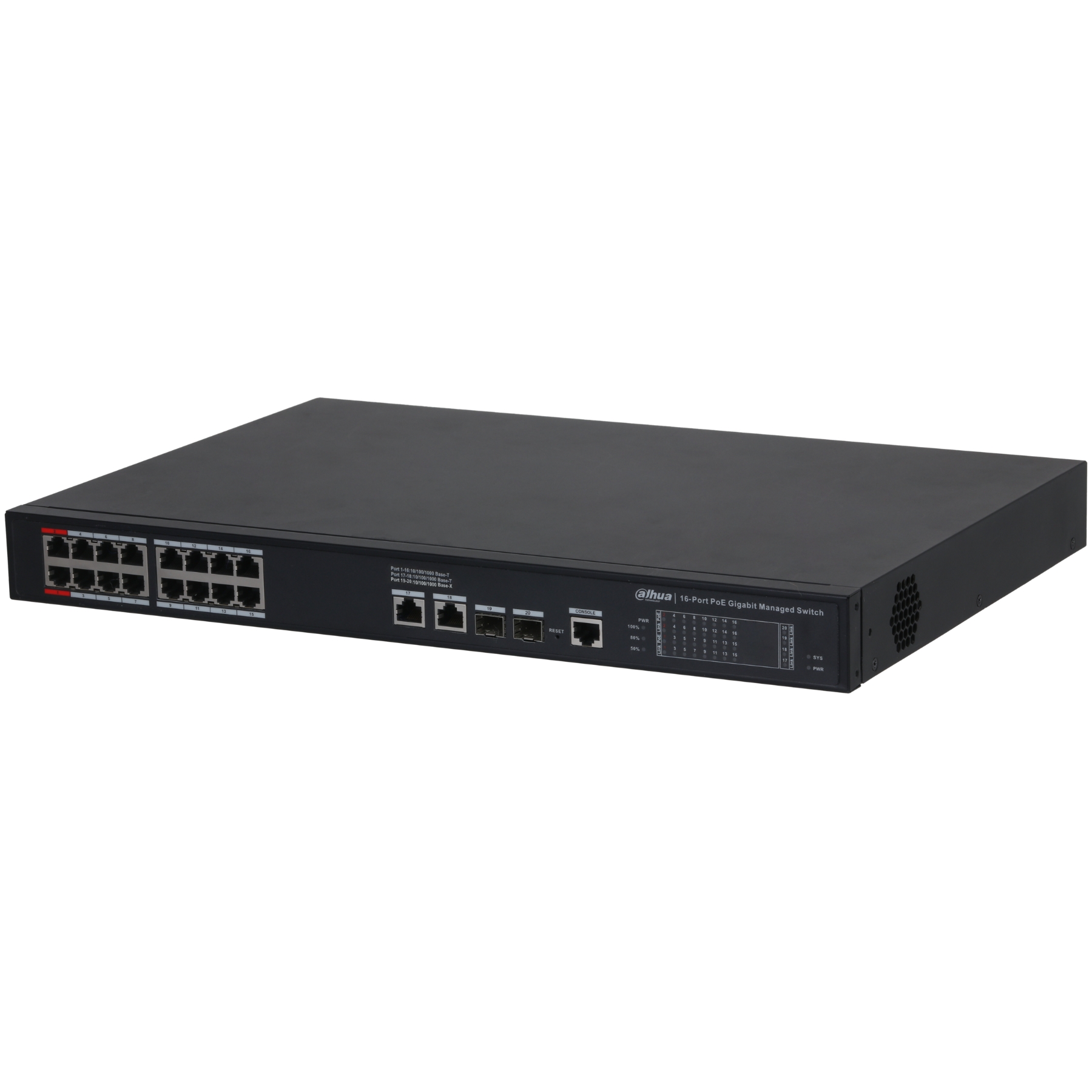

Name: SWITCH POE S4220-16GT-240 16-PORTU SFP DAHUA
SKU: S4220-16GT-240
Availability: OutOfStock

SWITCH POE S4220-16GT-240 16-PORTU SFP DAHUA

Preces kods: S4220-16GT-240

EAN: 6923172591142

Piegādes laiks: 20-23 Aprīlī

Estimated Delivery Dates

829,43 €

Availability: 0

LAN ports: 16 x RJ45 10/100/1000 Base-T ( 2 x Hi-PoE / PoE (802.3bt) + 14 x PoE (802.3af/at) ), 2 x RJ45 10/100/1000 Base-T – Uplink, 2 x SFP 1000 Base-X – Uplink </span>;>Transmission speed: 10 / 100 / 1000 Mbps : 16 LAN & PoE porti, 10 / 100 / 1000 Mbps : 2 RJ45 (Uplink) porti, 1000 Mbps : 2 SFP (Uplink) porti </span>;>Maximum total power: ≤ 240 W </span>;>Selected characteristics: The switch is managed via the web and cloud (DoLynk Care app) </span>; <table>

LAN ports:

16x RJ45 10/100/1000 Base-T ( 2 x Hi-PoE / PoE (802.3bt) + 14 x PoE (802.3af/at) ),

2 times RJ45 10/100/1000 Base-T – Uplink,

2 x SFP 1000 Base-X – Uplink
Management:

Default IP address:
192.168.1.110
Default username/admin password:
admin / –
Administrator password must be set during first launch

LED diodes:
Link, PoE, Power, System, 50 % PoE, 80 % PoE, 100 % PoE
Transmission speed:

10 / 100 / 1000 Mbps : 16 LAN & PoE porti,

10 / 100 / 1000 Mbps : 2 RJ45 (Uplink) porti,

1000 Mbps : 2 SFP (Uplink) porti

Maximum output power:

90 W / Hi-PoE / PoE 802.3bt ligzda – 1, 2 porti

30 W / PoE 802.3af/at ligzda – 3 … 16 porti
Maximum total power:
≤ 240 W

MAC address table:
8k
Working mode:

Long Distance PoE On : 250 m, 10 Mbps @ UTP kat. 5e, 6

Selected characteristics:

The switch is managed via the web and cloud (DoLynk Care app)

PoE power supply mode: The device is compatible with 8-pin power supply – pins: 1-2(+), 3-6(-), 4-5(+), 7-8(-)

protection against lightning discharge and voltage differences between devices

Watchdog PoE

Spanning Tree STP/RSTP

Port Based VLAN : 10

Data flow control (802.3x)

DHCP client

DHCP server

Compatible with DHCP snooping

RESET key

Possibility of installation in a 19" rack cabinet
Protection:

Lightning protection (common/differential): 4 / 2 kV

Protection against electrostatic discharge – Contact/Air (ESD/EMP): 6 / 8 kV

Hull:
Metal
Source of energy supply:
100 … 240 V AC @ 50 … 60 Hz

Power consumed:
max. 240 W
Operating temperature:
-10°C … 55°C

Weight:
3.40 kg

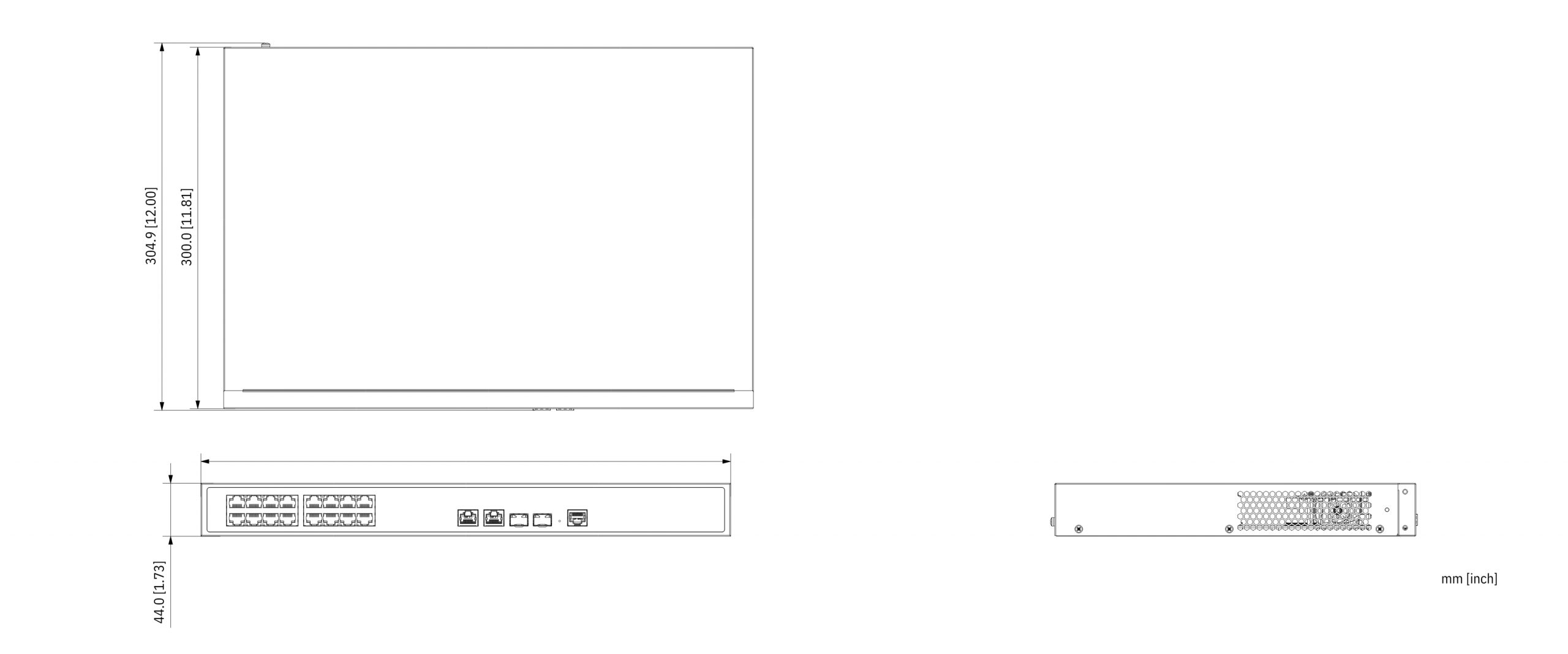

Size:
440 x 300 x 44 mm, RACK 19", 1U

Manufacturer / Brand:
DAHUA
WARRANTY:
5 years

Additional information

Svars	4,5100 kg
Dimensions	525 × 410 × 110 cm
