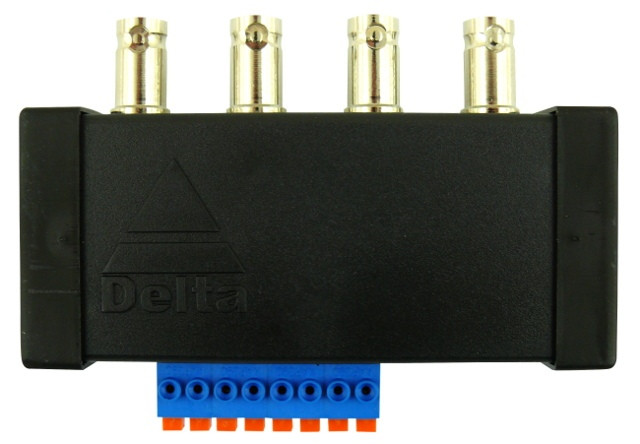

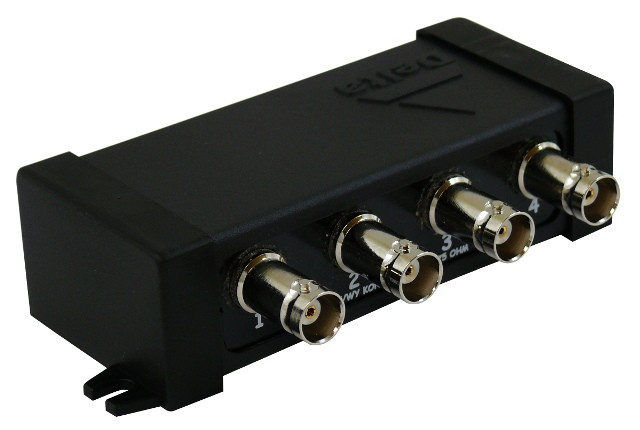

TRANSFORMER VIDEO TR-4P
pl://ak cesoria/del_tr4p_3.jpg” alt=”TRANSFORMER VIDEO TR-4P” loading=“lazy” />
DESCRIPTION
The TR-4P is designed for signal transmission using twisted pair cable. The device matches the impedance of a 75Ω coaxial cable to the impedance of a symmetrical cable, ensuring video signal transmission up to 400 m (Category 5 twisted pair cable) and eliminating asymmetrical interference.
Please pay attention to the correct connection of the (+) and (-) terminals. Reverse connection will cause image distortion.
Designed for AHD, CVI, TVI, PAL cameras.
Example of using a transformer. How to connect two transformers to send images from four cameras.

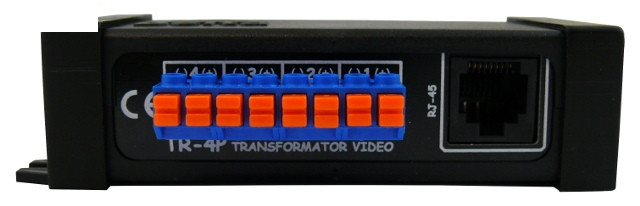

WI-6VORD. EQUIPMENT IN RJ-45 CONTACT (RJ-45 plug with spice according to standard: T568B)
- N: color, application
- 1: white-orange, signal (+) from camera No. 1
- 2: O no. 1
- 3: white-green, signal (+) camera No. 2
- 4: blue, ground (-) camera No. 3
- 5: white-blue, signal (+) camera No. 3
- 6:(-) camera no. 2
- 7: White-brown, signal (+) camera no. 4
- 8: Brown earth, (-) camera No. /del_tr4p_2.jpg” alt=”SPECIFICATION” loading=”lazy” />
SPECIFICATION
- Standard: HD-TVI, HD-CVI, AHD, PAL, SECAM >
- Number of channels: 4 pcs. Videos
- Video range: max. 400 m UTP cat. 5e
- Input/output voltage 75 Ω (CVBS): 1 Vpp
- Weakening of the ability to save: – 0.5 dB at 5 MHz
- Videos < bandwidth range MHzB0: 0 -3 CM Hz): 50 dB
- Coaxial connector impedance: 75 Ω
- Balanced connector impedance: 100 Ω
- Insulation between inputs: > -50dB
- Coaxial connector type: 4 x BNC straight socket
- Symmetrical connector type: cable terminals / RJ-45 (8-pin, 4-pair) jack
- Operating temperature>mhumidity >: < 95 %
- Weight: 0.105 kg
- Dimensions: 120 x 30 x 62 mm
400 m UTP cat. 5e
