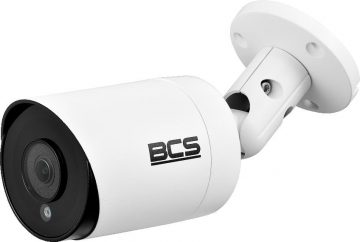

BCS UNIVERSAL kamera BCS-TA28FSR4(2)
.
Key elements
- AnalogHD 8Mpx raga kamera
- HDCVI/AHD/TVI/CVBS
- Konvertors 1/2.8” Sony IMX415 CMOS + FH8556H
- SkyLight technology
- Fixed lens 2.8 mm
- IR 40 m
- Mikrofons, audio izeja
- Korpuss IP66<
- Korpuss IP66
Technical specification
| Name of the trip | .BCS-TA28FSR4(2) | |||
| Izstrādājuma līnija | BCS UNIVERSAL | Universāls | Camera type | Tuba | .Pārraides standarts | HD-CVI / AHD / HD-TVI / ANALOG CVBS |
| .Resolution | 8 Mpx | |||
| Jutītājs | 1/2.8” Sony IMX415 CMOS | |||
| Scanning system | .Progresīvā skenēšana | |||
| Chiplet | FH8556H | |||
| Pixels | 3840(H)×2560(V) | .Objektīvs | fixed | |
| Focal length | 2.8 mm | |||
| Aperture | F1.2 | Focus | Fixed | |
| .Diafragma | Fixed | |||
| Camera sensitivity | 0.01Lux(F1.2,AGC) 0Lux(B/W,IR) | |||
| Baltas krāsas balanss | (AWB) Automatic / Manual | |||
| WDR | DWDR | |||
| Background compensation | BLC / DWDR | |||
| Switch | ||||
| Slēdž./td> | Automātiskā / manuālā 1/30s~1/10000s | |||
| Gain control | (AGC) Automātiskā / manuālā | |||
| Noise reduction | 2D/3D DNR | |||
| Results | CVI: 8M@12.5fps, 8M@15fps; TVI: 8M@12.5fps, 8M@15fps; AHD: 8M@15fps; CVBS: PAL,NTSC | |||
| Day/night | ICR mechanical infrared filter | |||
| Ilustratora veids | IIR LED | |||
| Ilustrators | 40m | Ilustrators | Ilustrators | Iluminisc. | Microphone | Yes | Audio output | Izvades signāls | .1 |
| Operation | Kameras OSD izvēlnes iestatījumu darbība ar BCS-XVR | Kameras OSD izvēlnes iestatījumu darbība ar BCS-XVR | Piegādes avota tips | 12 V līdzstrāvas | Electricity consumption | maks. 8 W |
| Round body color | white | |||
| .IP klase | IP66 | |||
| Operating conditions | -20°~+60°, maks. 95% relatīvā mitruma | ./td> | Dimensions | Ø187×68 mm |
| Weight | 0.5 kg |
